The small cable that defines the expansion direction.

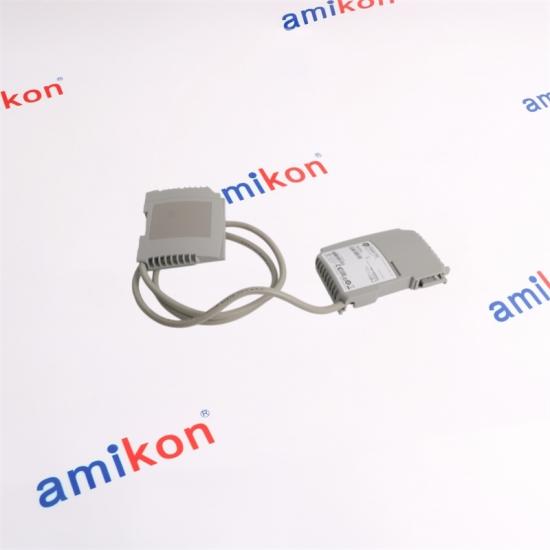

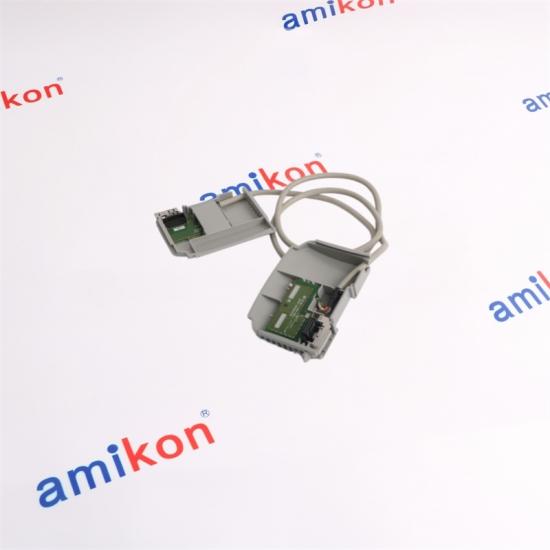

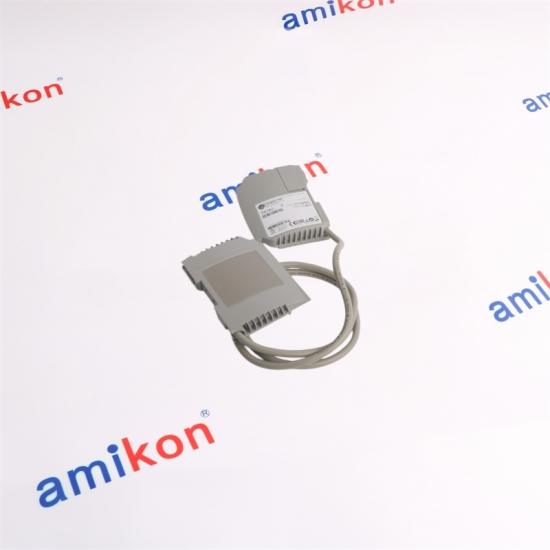

1769-CRL1 connects a right-side Compact I/O bank to a left-side expansion bank. Its specified cable length is 1 ft, approximately 305 mm. |
CORE GEOMETRY
305 mm
Approximate end-to-end cable length
Direction
Right bank → Left bank |
TEMPERATURE
0…60 °C
32…140 °F
Compact I/O communication bus expansion
|
|
EXPANSION BANK
LEFT SIDE
|
RIGHT → LEFT
1769-CRL1
1 ft / 305 mm
|
EXPANSION BANK
RIGHT SIDE
|
| 1769-CRL1 Right-to-left 1 ft / 305 mm |
1769-CRL3 Right-to-left 3.28 ft / 1 m |
1769-CLL1 / CLL3 Left-to-left expansion family |
1769-CRR1 / CRR3 Right-to-right expansion family |
| Catalog number 1769-CRL1 |
Cable type Right bank-to-left bank expansion |
Length 1 ft / 305 mm |
| Approx. cable-only length End-to-end measurement |
Operating temperature 0…60 °C |
System family 1769 Compact I/O |
| Installation role Communication bus expansion |
Alternative length 1769-CRL3 = 1 m |
Use case Separate Compact I/O banks |
|
Amikon's large stock is the core of our supply.
A broad inventory supports urgent industrial automation requirements. |
400,000+
electronic products PLC · HMI · drivers · servo · CNC · IPC · PG
|
READY
for immediate requirements New, discontinued and hard-to-find products can be sourced through our supply network.
|
| Sales Manager Miya zheng |
Email sales@amikon.cn |
Phone / WhatsApp +86 180 2077 6792 |
| 01 | When should 1769-CRL1 be selected instead of 1769-CRL3? Select 1769-CRL1 when the required right-to-left Compact I/O bank connection can be accommodated by the approximately 305 mm cable length. CRL3 provides approximately 1 m. |
| 02 | Does 1769-CRL1 connect a right bank to a left bank? Yes. Its defined cable type is right bank-to-left bank expansion, which is the key distinction from the left-to-left and right-to-right cable families. |
| 03 | Can 1769-CRL1 be replaced by any 305 mm Compact I/O cable? No. Length alone is not sufficient. The bank orientation must also match. The CRL1 designation specifically identifies right-to-left expansion. |
| 04 | What temperature range is specified for 1769-CRL1? The current product specification lists an operating temperature range of 0…60 °C, or 32…140 °F. |
| 05 | What should be checked before ordering 1769-CRL1 for an existing Compact I/O bank? Confirm the bank orientation, required cable length, physical routing space and the Compact I/O architecture. If the required route is right-to-left and approximately 305 mm, CRL1 is the matching length/orientation combination. |
