NETWORK
10/100 Mbps
EtherNet/IP communication with two RJ45 Category 5 Ethernet interfaces.
|
CAPACITY
69 I/O
Network adapter for a 1769 Compact I/O assembly with up to 69 I/O-related capacity as specified for the adapter.
|
CONNECTIONS
128
Maximum Logix communication connections; TCP/IP communication connections are specified separately at 96.
|
| Ethernet Ports 2 × RJ45 |
Protocol EtherNet/IP / TCP/IP |
| Current Draw 500 mA @ 5.2 V DC |
Isolation 50 V continuous, basic insulation |
| Dimensions 118 × 50 × 87 mm |
Mounting DIN rail or panel mount |

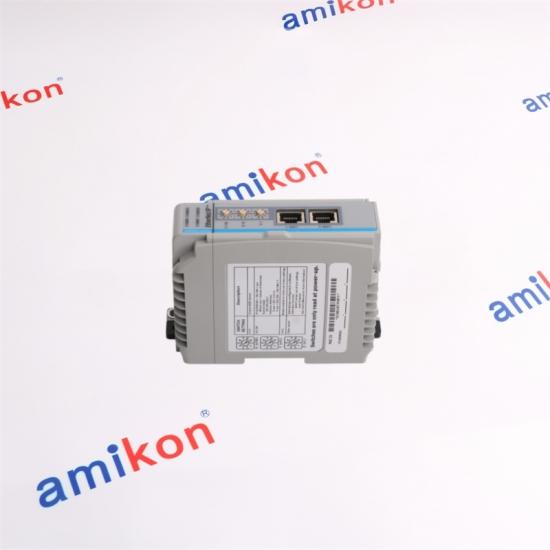

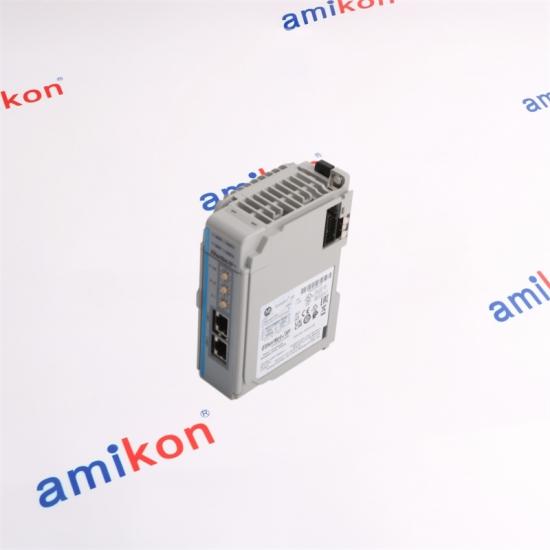

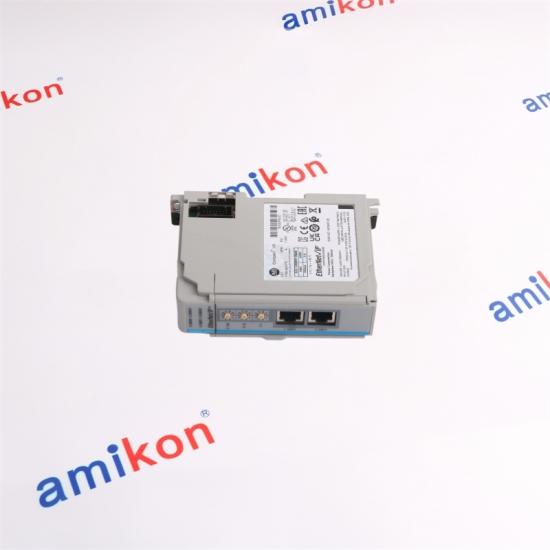

| 1769-AENTR EtherNet/IP network adapter. Converts the 1769 I/O assembly into a distributed Ethernet node. |
1769-OW16 16-point AC/DC relay output module. Adds relay switching channels to the 1769 I/O system. |
1769-IF8 8-channel analog current/voltage input module. Converts field analog signals into controller data. |
| Sales Manager: Miya Zheng Email: sales@amikon.cn Phone / WhatsApp: +86 180 2077 6792 |
EMAIL SALES WHATSAPP
Delivery: 3–5 days · Warranty: 12 months · Payment: T/T · Shipping: E-packing / FedEx / EMS / TNT / DHL / UPS
|
| Can 1769-AENTR be used when the existing 1769 I/O must be moved closer to field equipment?
Yes. Its purpose is to provide an EtherNet/IP interface for distributed 1769 Compact I/O, allowing the I/O assembly to be positioned away from the controller on the Ethernet network.
|
| Does 1769-AENTR provide two Ethernet ports for network topology flexibility?
Yes. The adapter has two RJ45 Category 5 Ethernet ports and supports 10/100 Mbps EtherNet/IP communication. Rockwell Automation identifies linear and DLR topology support for the 1769-AENTR.
|
| What should buyers check when replacing an older 1769-AENTR in an operating network?
Check the existing I/O arrangement, Ethernet topology, controller communication requirements, firmware compatibility and physical mounting space before replacement. Firmware revision should also be considered because different revisions have different release histories.
|
| Can 1769-AENTR support both TCP/IP and EtherNet/IP communication?
Yes. The product specifications identify both EtherNet/IP and TCP/IP support. The listed maximums are 128 Logix communication connections and 96 TCP/IP communication connections.
|
| Is 1769-AENTR suitable for a panel-mounted distributed I/O cabinet?
Yes. The adapter supports DIN-rail or panel mounting and measures approximately 118 × 50 × 87 mm, making the available enclosure space and wiring clearance important selection considerations.
|
