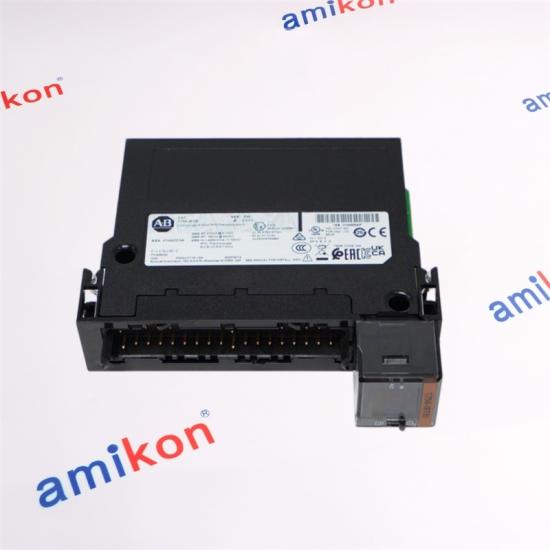

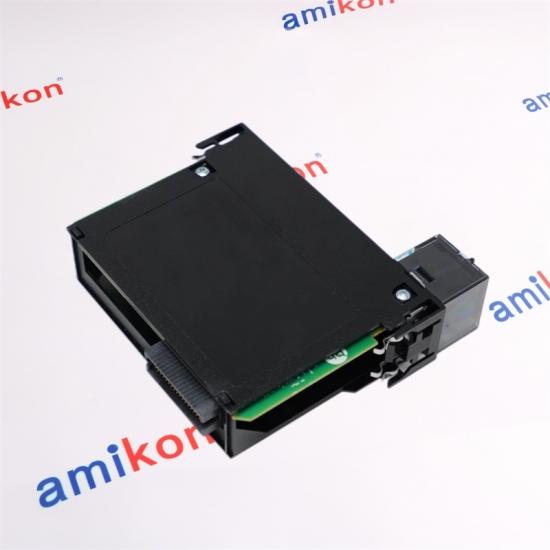

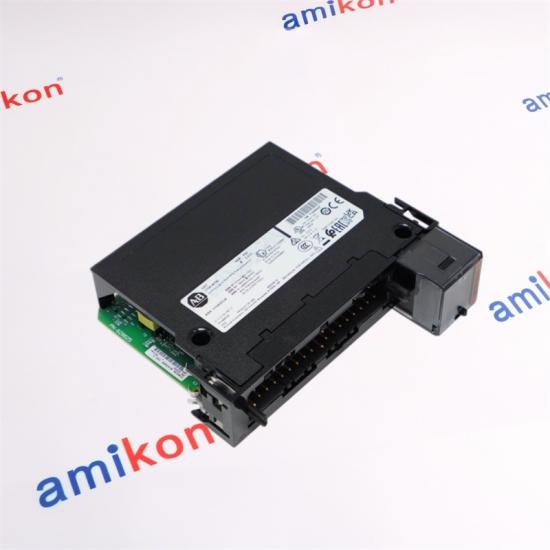

Allen-Bradley 1756-IRT8I Versatile Input Module

Manufacturer

Allen Bradley

Product Type

Input Module

Product Line

ControlLogix

Part Number

1756-IRT8I

UPC

885630245423

Weight

1.00 lbs (0.45 kg)

Number of Inputs

8 Inputs

Isolated Inputs

Yes

Input Modes

RTD or Thermocouple (any combination)

CJC Sensors

2 Sensors

Input Ranges

1 to 500 Ohms, 2 to 1000 Ohms, 4 to 2000 Ohms, 8 to 400 Ohms, or -100 to 100 mV

Current Draw at 5.1V

200 mA

Current Draw at 24V

150 mA

Total Backplane Power

4.6 Watts

Maximum Power Dissipation

4.6 Watts

Maximum Thermal Dissipation

15.7 BTU per Hour

Module Conversion Method

Sigma-Delta

Continuous Isolation Voltage

250V

Minimum Module Input Scan Time

1ms

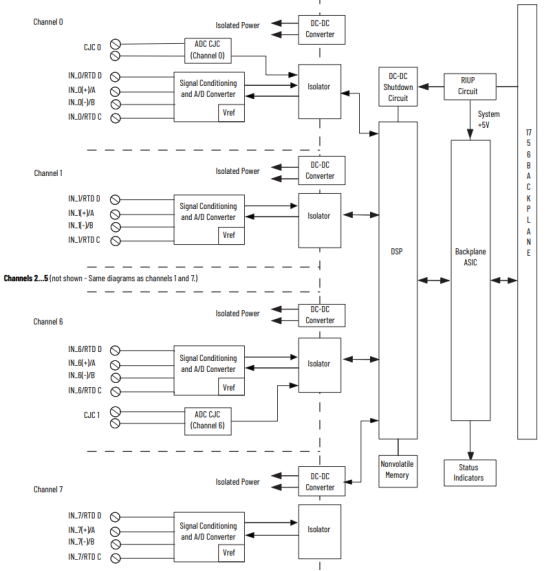

1. How does the AB 1756-IRT8I ensure high-fidelity temperature acquisition when interfacing with multiple RTD sensing elements in a ControlLogix architecture?

The AB 1756-IRT8I utilizes precision signal conditioning and advanced analog conversion technology to deliver accurate RTD temperature measurements across eight isolated input channels, making it suitable for critical process control applications.

2. Why is the AB 1756-IRT8I particularly advantageous for sophisticated thermal monitoring systems requiring exceptional measurement integrity?

The AB 1756-IRT8I provides channel isolation, diagnostic capabilities, and support for various RTD types, helping maintain measurement stability while minimizing the effects of electrical noise and signal interference.

3. What configuration considerations should engineers evaluate when deploying the AB 1756-IRT8I in a high-performance industrial automation environment?

Engineers should verify RTD sensor compatibility, wiring methodology, channel configuration parameters, input filtering requirements, and controller integration settings to maximize the operational effectiveness of the AB 1756-IRT8I.

4. How can the AB 1756-IRT8I contribute to predictive maintenance strategies within temperature-critical manufacturing processes?

By delivering precise and continuous temperature data, the AB 1756-IRT8I enables early detection of abnormal thermal conditions, allowing maintenance teams to address potential equipment issues before they result in unplanned downtime.

5. In what ways does the AB 1756-IRT8I enhance process reliability and operational visibility across distributed control applications?

The AB 1756-IRT8I supports real-time temperature monitoring, comprehensive diagnostics, and seamless integration with ControlLogix controllers, providing operators with enhanced process insight and improved decision-making capabilities.
