Allen-Bradley 1756-A4 4-Slot ControlLogix Chassis

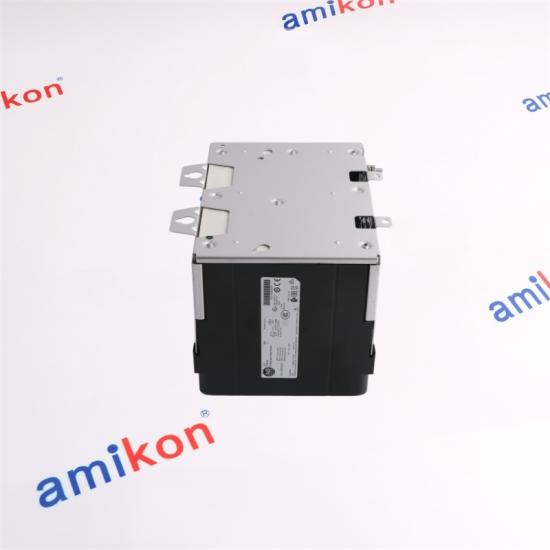

Allen-Bradley 1756-A4

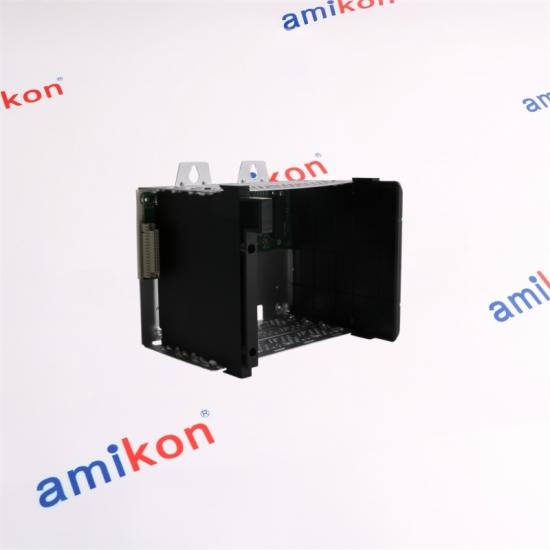

Allen-Bradley 1756-A4

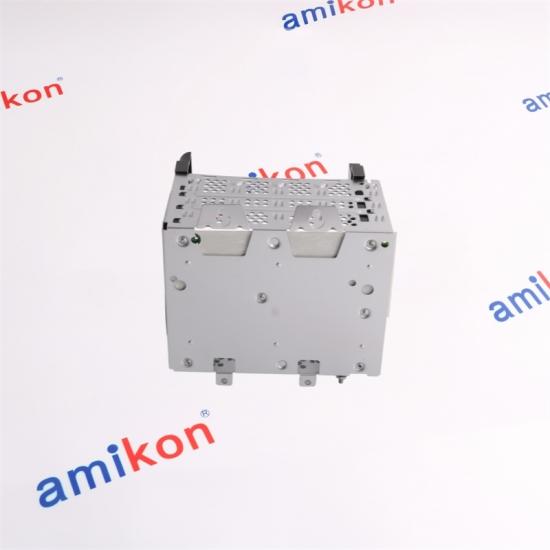

Allen-Bradley 1756-A4

Allen-Bradley 1756-A4 4-Slot ControlLogix Chassis

Calculate shipping
Quotation Request
COMPACT CHASSIS
4
SLOT BACKPLANE

ALLEN-BRADLEY CONTROLLOGIX
1756-A4
Four-Slot Standard Chassis
4
Module slots		 4 W
Max dissipation		 50.8 x 50.8 x 20.3 cm
Minimum enclosure
The backplane distributes power and provides the high-speed communication path among installed ControlLogix modules.
International Delivery on the Day
Quick Response Support · Intercontinental Cooperation Network
COMPACT SPACE.
DIRECT SUPPORT.

●  Miya Zheng
Sales Manager
✉  EMAIL MIYA●  WHATSAPP
PRODUCT│SYSTEM│SUPPLY│FAQ│MODELS

04
CONTROLLOGIX
ALLEN-BRADLEY

1756-A4

4-Slot ControlLogix Chassis

The compact four-slot ControlLogix chassis combines a concise cabinet footprint with the same backplane functions used to connect and power supported 1756 controllers, networks and I/O.
▰━◇━▰
POWER
BACKPLANE
CONTROL
MATCH THE COMPLETE CATALOG NUMBER
Sales Manager · Miya Zheng		 EMAIL · sales@amikon.cn WHATSAPP · 86-18020776792
TECHNICAL BLUEPRINT

Product Profile and Engineering Checks

01

 Slot capacity 4 ControlLogix module positions
02

 Mounting Horizontal orientation only
03

 Power dissipation 4 W maximum
04

 1.2 V rail 1.5 A chassis maximum
05

 3.3 V rail 4 A chassis maximum; 4 A per slot
06

 5.1 V rail 15 A chassis maximum; 6 A per slot
07

 24 V rail 2.8 A chassis maximum; 2.8 A per slot
08

 Minimum cabinet 50.8 × 50.8 × 20.3 cm
09

 Operating range Series B: 0…60°C; Series C: −25…+60°C
10

 Replacement check Verify series, horizontal mounting, supply and module load
Procurement checkpoint: match the hardware series, installed system release, module arrangement, power budget and environmental limits.
SYSTEM RELATIONSHIP

ControlLogix Architecture Comparison

A4 4 4 W Smallest standard chassis
A7 7 4.5 W Three more positions
A10 10 5 W Broader local I/O
A13 13 5.4 W Larger network layout
A17 17 6 W Maximum standard capacity
SUPPLY CONTINUITY

Inventory, Inspection and Worldwide Coordination

Amikon's large stock is the core of our supply.
A broad industrial portfolio supports both current technology and long-unavailable parts.
More than 400,000 electronic products cover PLC, HMI, drive, servo, CNC, IPC and PG needs.
Multilingual support, order tracking and an international supplier network help shorten recovery time.
When an item is temporarily unavailable, our preferred supplier network can be searched for a suitable route. Transparent coordination helps plants restart production with fewer purchasing delays.
REQUEST AVAILABILITY AND A FAST QUOTE
Sales Manager · Miya Zheng		 EMAIL · sales@amikon.cn WHATSAPP · 86-18020776792
BUYER FAQ

Purchase-Critical Questions

01 Must Allen-Bradley 1756-A4 be mounted horizontally?
Yes. The standard four-slot chassis is specified for horizontal mounting, so the cabinet layout must preserve that orientation.
02 Does the power supply consume a slot in Allen-Bradley 1756-A4?
No. It mounts at the chassis power position, leaving the four numbered positions for supported modules.
03 What is the main sizing risk with Allen-Bradley 1756-A4?
Four slots can be consumed quickly by the controller and communication modules, so plan the complete module arrangement before purchase.
04 Can Allen-Bradley 1756-A4 replace a larger chassis?
Only if every required module fits and the revised power, addressing, networking and control project are engineered and tested.
05 Which power checks matter for Allen-Bradley 1756-A4?
Calculate demand on each backplane voltage rail and compare it with both chassis and selected power-supply limits.
