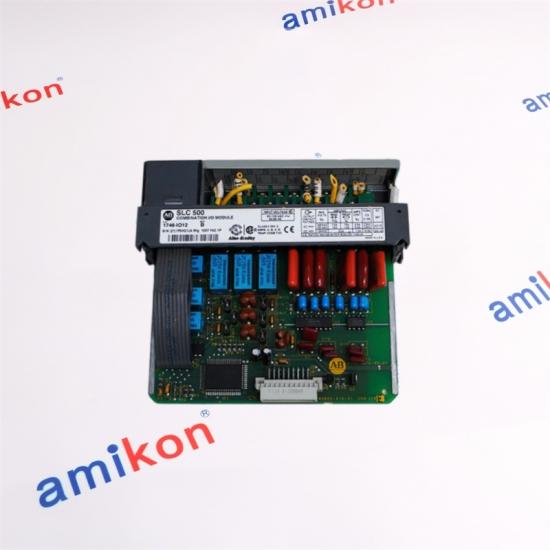

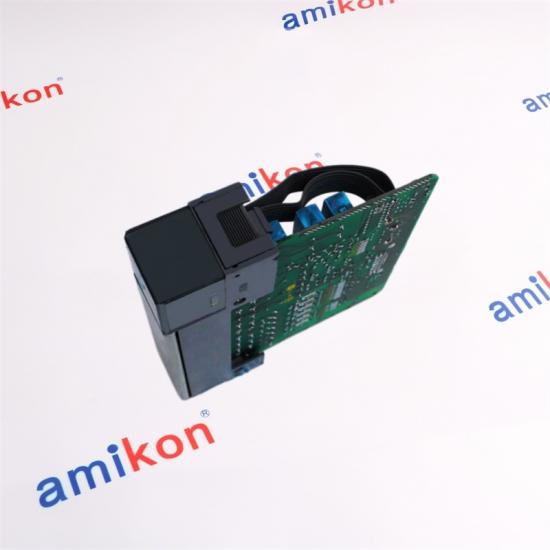

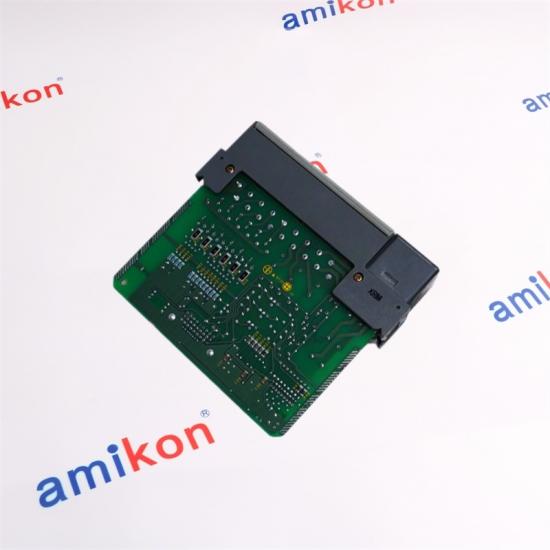

The Allen-Bradley 1746-IO12 is a SLC 500 Digital I/O Combination Module. This Digital I/O Combination Module has Six (6) Input channels with Operating Voltage range of 85-132 Volts AC and Six (6) relay output channels. This module occupies single slot of the SLC 500 chassis. |
|
|
UPC |
662073902690 |
|
Weight |
1.00 lbs (0.45 kg) |
|
Operating Voltage |
85-132 Volts AC |
|
Module Type |
Digital I/O Combination Module |
|
Input Operating Voltage |
120 VAC Volts AC |
About Amikon
l Amikon is the ideological leader of the world's automation manufacturing industry is committed to promoting global industry exchanges. No matter how complex your problem is, our experienced professional team will use years of industry knowledge to provide you with efficient solutions.
l More than 20 Language Services
l Customers are located in 152 countries/regions.
⇒Sales manager: Miya zheng Email: sales@amikon.cn WhatsApp: 86-18020776792
Technical specifications
|
Manufacturer |
Allen Bradley |
|
Category |
PLCs |
|
Product Line |
SLC 500 |
|
Part Number |
1746-IO12 |
|
UPC |
662073902690 |
|
Weight |
1.00 lbs (0.45 kg) |
|
Operating Voltage |
85-132 Volts AC |
|
Module Type |
Digital I/O Combination Module |
|
Input Operating Voltage |
120 VAC Volts AC |
|
Inputs |
Six (6) 120VAC inputs |
|
Output Operating Voltage |
24-125 VDC; 120 - 240 VAC |
|
Signal delay |
35-45 milliseconds |
|
Outputs |
Six (6) Form A Contacts |
|
Current/Output (24VDC) |
1.2 amps |
|
Current/Output (120 VAC) |
1.5 amps |
|
Continuous Current per module |
8.0 A |
|
Backplane Current |
70-90 mA |
|
Current/Output |
(24VDC)1.2 amps; (120 VAC)1.5 amps |
|
Applications |
Combination 120 Volts AC I/O |
|
Slot Width |
1 |
|
Area Classification |
Certified for Class 1, Division 2 hazardous location by CSA. |
|
Manufacturer |
Allen Bradley |
Descripution

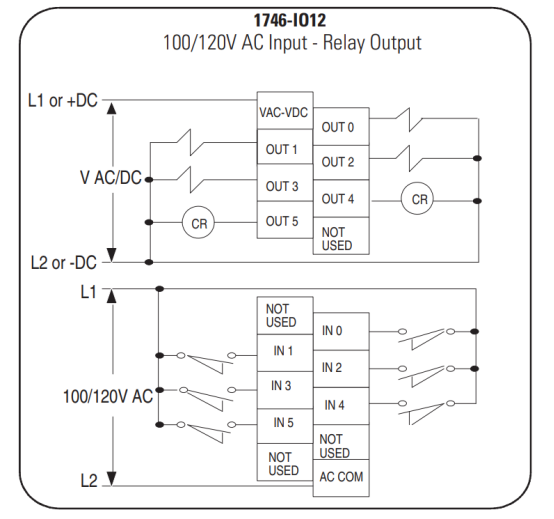

The Allen-Bradley 1746-IO12 is a combination Input / Output module that belongs to the SLC 500 controller platform.
This module is a single slot module that directly installs to the SLC 500 chassis. It has Six (6) 120 VAC inputs and Six (6) Form A contact output (Normally Open). This module is a cost-effective component as it allows chassis slot and panel slot saving through the module’s dual operation capability.
The input functionality of this voltage is similar to the 1746-IA16 module that accepts voltage range of 85-132 VAC. However, it has lesser number of inputs. The Relay output of this module is comparable to the 1746-IO8 or 1746-IO4, having more relay outputs compared to the 1746-IO4 and lesser outputs compared to 1746-IO8.
Similar to other SLC 500 modules, this combination module may also be mixed with other modules of the SLC 500 product family and be placed in expansion or local chassis except the slot dedicated for the Programmable Logic Controller (PLC) processor.
The module’s operation may be degraded when exposed to chemicals. Regular maintenance and loop validation are recommended to determine if the module’s operation remains within the acceptable operating limits and process reaction. If a significant degradation is found, the module may be replaced with the same part-number without any reconfiguration needed however, only replace modules without an active supply power.
