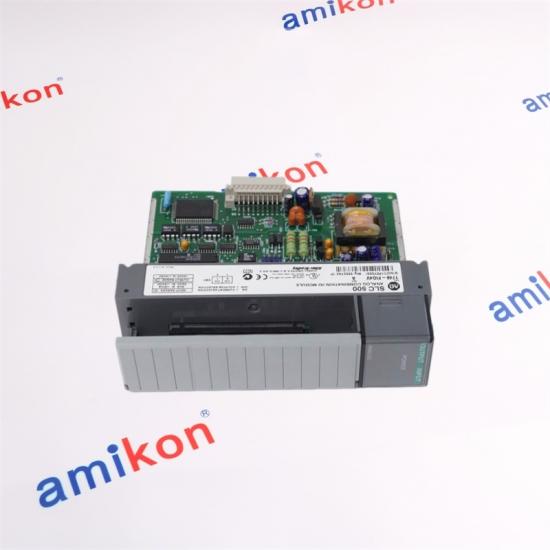

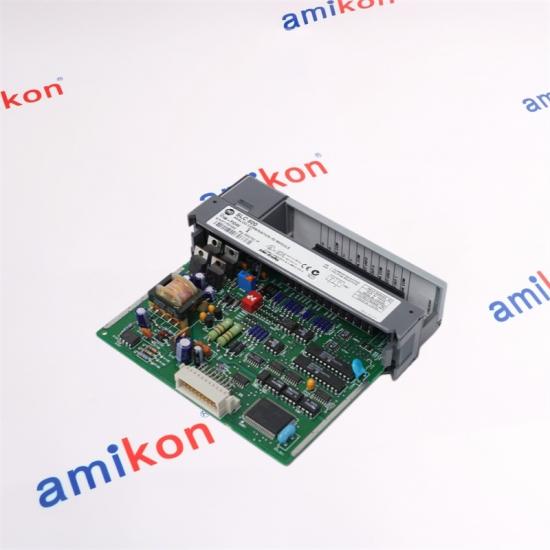

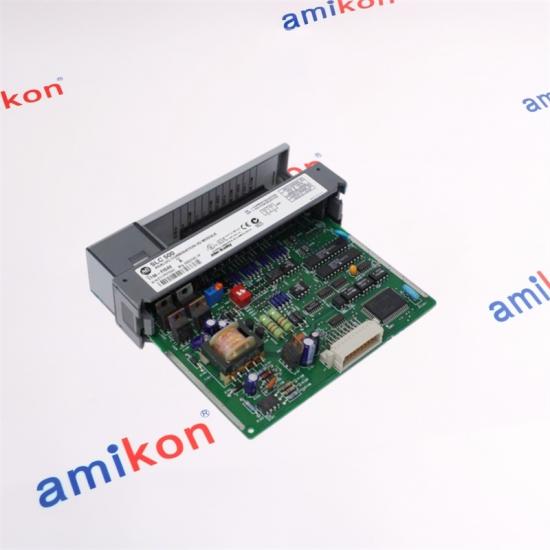

Allen-Bradley 1746-FIO4V SLC 500 Fast Analog Combination Module

About Amikon

1. Amikon is the ideological leader of the world's automation manufacturing industry is committed to promoting global industry exchanges. No matter how complex your problem is, our experienced professional team will use years of industry knowledge to provide you with efficient solutions.

2. More than 20 Language Services

3. Customers are located in 152 countries/regions.

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

Technical specifications

Descripution

The Allen-Bradley 1746-FIO4V SLC 500 fast analog combination module has Four (4) channels. In particular, it has Two (2) fast analog, differential voltage or current input channels, which are selectable by channel, and Two (2) voltage outputs which are grouped together. Its input channels have a 0-20 mA input range, a maximum absolute input voltage of +/- 7.5V DC or of 7.5V AC RMS, a maximum absolute input current of 0-30 mA. The output channels of this module come with -10 to +10VDC -1 LSB. The 1746-FIO4V also comes with field wiring to a backplane isolation of 500V DC.

Module Input and Output Circuits

These wiring diagrams show the input circuit, voltage output, and current output for the fast analog modules.

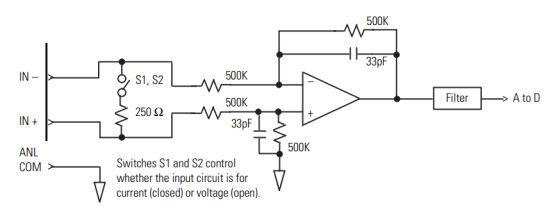

Input Circuit for 1746-FIO4V and 1746-FIO4I Modules

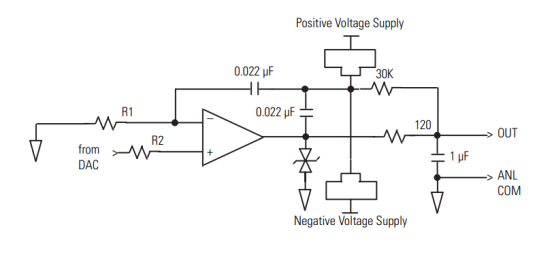

Voltage Output Circuit for 1746-FIO4V Modules

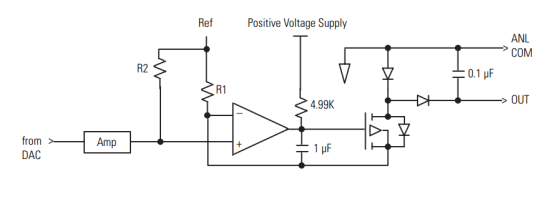

Current Output Circuit for 1746-FIO4I Modules

FAQ

Q1. How does the AB 1746-FIO4V enhance analog signal interoperability within advanced SLC 500 process automation architectures?
A: The AB 1746-FIO4V is designed to manage voltage-based analog input and output signals, enabling precise data acquisition and control for applications requiring accurate process variable monitoring and regulation.

Q2. What sophisticated signal-conversion capabilities distinguish the AB 1746-FIO4V in high-precision industrial control environments?
A: The AB 1746-FIO4V utilizes high-resolution analog-to-digital and digital-to-analog conversion technologies, ensuring reliable signal processing and consistent control performance across demanding applications.

Q3. Why is the AB 1746-FIO4V considered an effective solution for closed-loop voltage control and feedback systems?
A: By supporting both analog input measurement and analog output generation, the AB 1746-FIO4V facilitates real-time process feedback, enabling controllers to make accurate adjustments to maintain optimal operating conditions.

Q4. How can the AB 1746-FIO4V improve measurement fidelity and operational stability in electrically noisy industrial installations?
A: The AB 1746-FIO4V incorporates advanced filtering and signal-conditioning mechanisms that help minimize the effects of electromagnetic interference, ensuring stable and dependable analog signal transmission.

Q5. In which application domains does the AB 1746-FIO4V deliver the most substantial engineering benefits, and what performance advantages does it offer?
A: The AB 1746-FIO4V is widely utilized in process control, water treatment, energy management, chemical production, and manufacturing automation, where precise voltage-based signal monitoring and control are essential for maximizing efficiency and system reliability.
