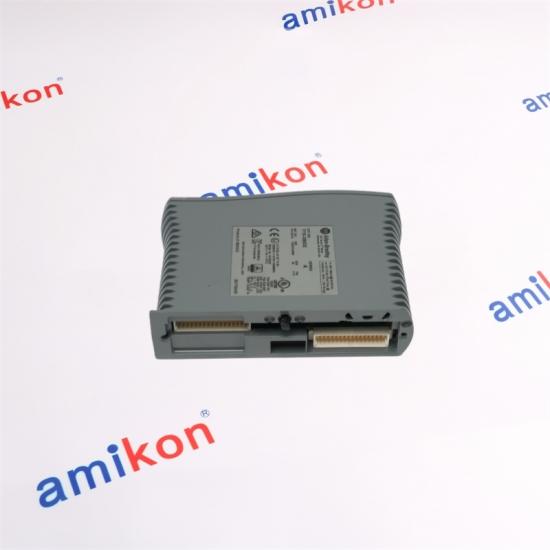

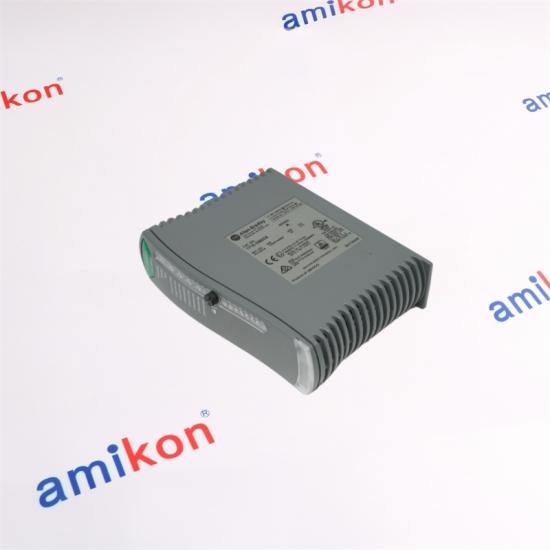

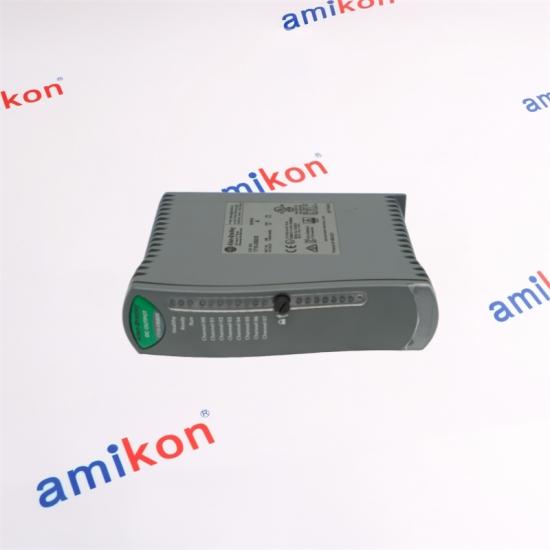

Allen Bradley 1715-OB8DE Digital Output Module

DESCRIPTION

Mounting: DIN-rail, IP20, hot-swap

Output channels: 8 isolated 24 V DC sourcing

Current per channel: 1 A continuous, 1.5 A inrush

Output voltage range: 18…32 V DC

Power dissipation: 2 W @ 24 V DC

Isolation: channel-to-bus 2 500 V RMS

Operating temp: 25…+60 °C

APPLICATIONS

Safety-critical E-stop and valve control in oil & gas skids—dual redundant modules wired in duplex series keep the solenoid energised even if one card fails, eliminating spurious trips and costly shutdowns.

Remote water-treatment plant pump starters—eight 24 V DC outputs switch contactors on a 1 A load while built-in diagnostics report field-wire faults back to the ControlLogix SCADA over EtherNet/IP, saving night-shift call-outs.

Automotive body-shop robot lines—SIL 3 rating lets the module drive safety relays for light curtains and gate locks directly; online replacement means maintenance can swap a card between shifts without stopping the line.

Redundant packaging-line heater contactors—wide 18…32 V tolerance rides through brown-outs, and the 1.5 A inrush capability handles heater cold-start current without external interposing relays, cutting panel space and wiring time.
