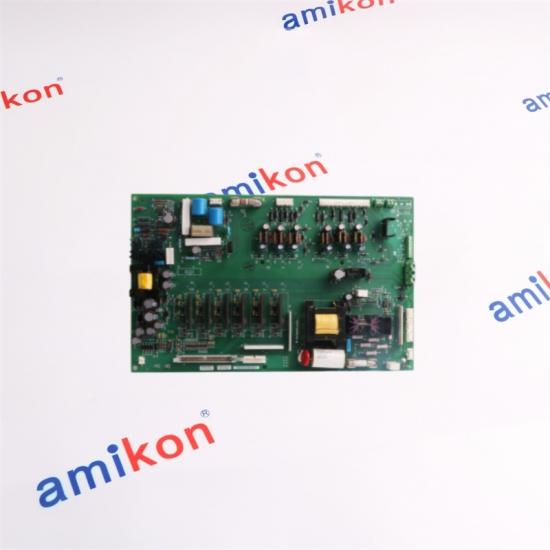

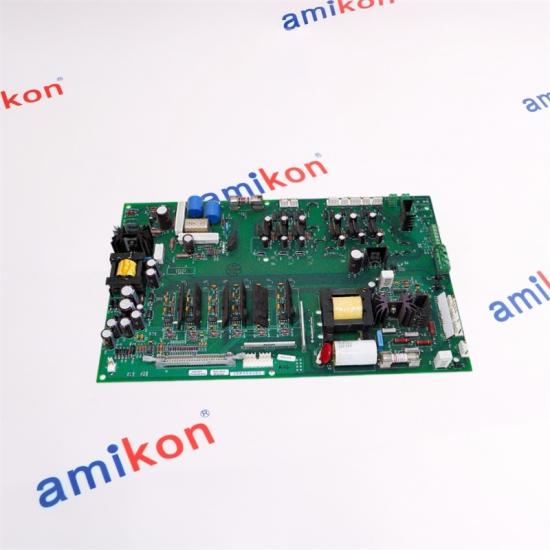

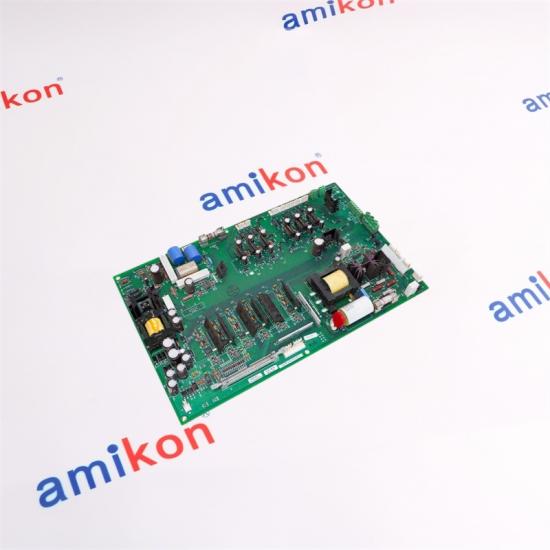

Allen-Bradley 1336-BDB-SP34D Drive Board

CONTACT US

Miya Email:sales@amikon.cn

Miya Whatsapp/phone:+86 18020776792

Technical specifications

Manufacturer

Allen Bradley

Mounting

Main control plate

Typical Use

IGBT gate control

Fastening

8 screws

Platform

1336 drive platform

Auxiliary Input

24 VDC (TB4)

Power Rating

125 HP

Diagnostic Method

Diode test (VR1–VR6)

Board Role

Power stage interface

Control Signal

PWM gate pulses

Compatibility

575V, 125HP drives only

Circuit Type

Printed circuit assembly

Description

The 1336-BDB-SP34D PCB from Allen Bradley serves as a gate drive circuit assembly, integral to IGBT gate control systems. This component is rated for high-voltage operation at 575 VAC, suitable for high-performance applications. It interfaces directly with the 1336 drive platform and is typically mounted on the main control plate, securing it firmly with eight screws.

Typical applications include 125 HP drives that require precise gate signal management. This PCB’s operation hinges on the generation of PWM gate pulses, which effectively control the connected IGBT devices. An auxiliary input rated at 24 VDC (TB4) allows for additional functionality within the system.

For users needing to perform diagnostic checks, the board provides access to diode tests across components VR1 through VR6, facilitating easy verification of operational integrity. This printed circuit assembly is specifically designed to capture and intelligently manage the control signals necessary for high-efficiency operation in designated 575V drives, ensuring optimal performance in demanding scenarios.

FQA

Question

Answer

What is the Allen-Bradley 1336-BDB-SP34D used for?

The Allen-Bradley 1336-BDB-SP34D is a gate drive printed circuit board (PCB) designed for IGBT gate control in Allen-Bradley 1336 drive systems. It serves as a power stage interface for controlling drive output signals.

What voltage rating does the 1336-BDB-SP34D support?

This PCB board is rated for 575 VAC applications and is commonly used with 125 HP Allen-Bradley 1336 drives.

What are the main functions of the 1336-BDB-SP34D board?

The board generates PWM gate pulses for IGBT switching control, helping regulate motor drive performance and ensuring efficient power conversion within the variable frequency drive system.

How is the 1336-BDB-SP34D installed?

The board is typically mounted on the main control plate of the drive system and secured using eight screws. It also includes a 24 VDC auxiliary input connection through terminal TB4.

Is the Allen-Bradley 1336-BDB-SP34D still available?

The 1336-BDB-SP34D is considered a legacy/discontinued product, but refurbished, surplus, and repair services are still available from industrial automation suppliers.
