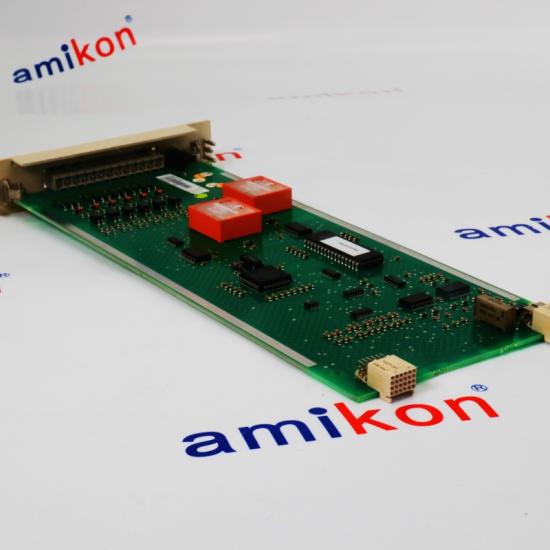

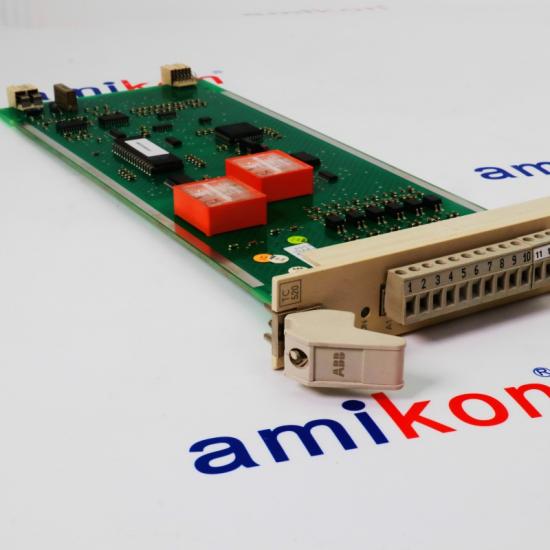

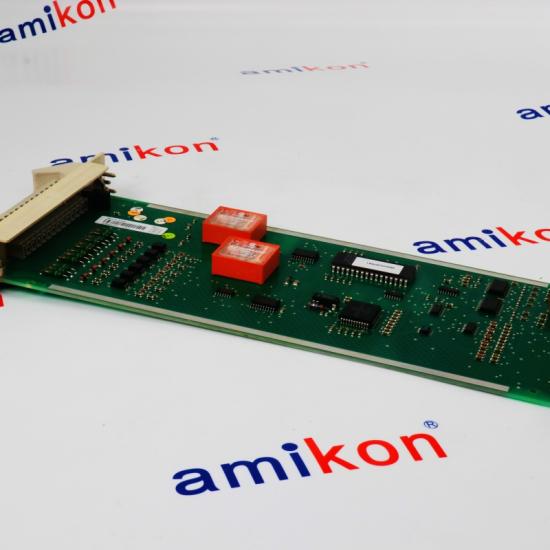

| General Information | |
| Product ID: | ABB SAMC 11 SAMC11 |
| Type： | Communication Module |
| Compatibility： | Designed for seamless integration with ABB Advant Controllers AC450 and AC460 systems. |
| Ordering | |
| Nominal Voltage： | 24VDC |
| weight： | 0.26kg |
| Product Net Depth / Length: |
30mm |
| Product Net Height: |
335mm |
| Product Net Width: |
148mm |
| 1. Purpose and Functionality: | |
| System Monitoring： | Continuously collects data from various devices within the system, providing real-time insights into the performance and health of the equipment. |
| Data Communication: | Transmits collected system status data to a central controller or monitoring system using Modbus RTU communication protocol (RS485). |
| Alarm and Fault Detection: | Detects and reports faults or abnormal system behavior through status indicators and communication signals, facilitating quick response actions. |
| 2. Key Attributes: | |
| Operating Temperature Range： | -20°C to +60°C |
| Storage Temperature Range： | -40°C to +85°C |
