| POWER SECTION | PHASE CONNECTIONS | SDCS-PIN-H11 | SDCS-CON-H01 | DRIVE CONTROL |

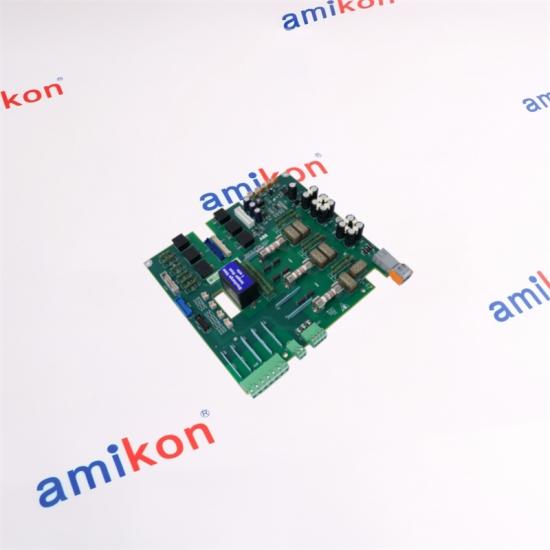

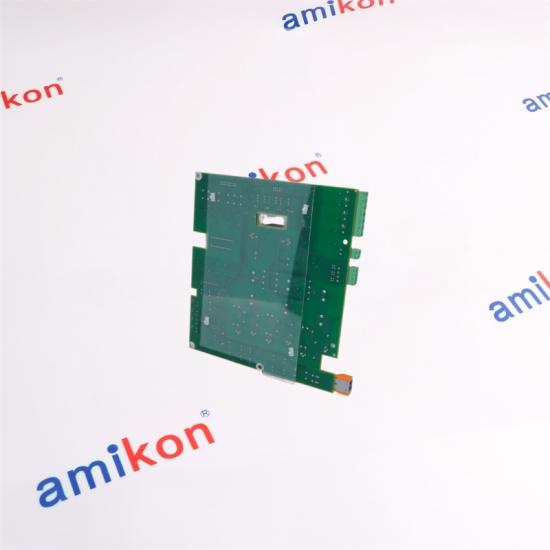

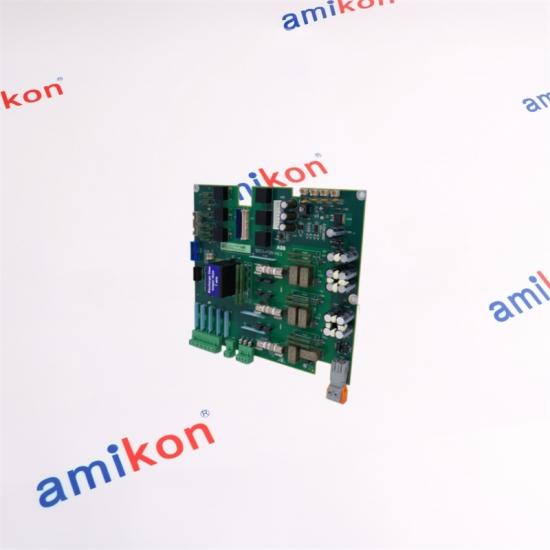

SDCS-PIN-H11 3ADT318600R1501 is positioned between the converter power section and the SDCS-CON-H01 control board. Its dedicated terminals, connectors and protective fuses form the coordinated interface between power hardware and control electronics.
| Manufacturer | ABB |
| Board type | SDCS-PIN-H11 |
| Ordering number | 3ADT318600R1501 |
| Installed position | Between power part and SDCS-CON-H01 |
| Auxiliary connection | 24 V DC at XAUX (X99) |
| On-board protection | F100, F101 and F102 |
| Applicable converter sizes | Common interface arrangement for sizes T1 through T6 |
| Power-interface wire size | 0.5 to 2.5 mm2 / 24 to 12 AWG |
| Terminal tightening torque | 0.5 N m / 5 lbf in |
| Auxiliary terminal | XAUX, X99, 24 V DC |
| Protective fuses | F100 to F102 |
| Fuse type | KTK 25, 25 A |
| Control-board relationship | SDCS-CON-H01 |
| Discharge warning | Wait more than 5 seconds after isolation |
| CONVERTER POWER SECTION | → | PHASE / CURRENT CONNECTIONS | → | SDCS-PIN-H11 | → | SDCS-CON-H01 CONTROL | → | DRIVE CONTROL SYSTEM |
| MODEL | ROLE | SELECTION POINT |
| SDCS-PIN-H11 | Power interface board | This model and order number |
| SDCS-CON-H01 | Control board | Connected control-side partner |
| SDCS-POW-H01 | Power-supply board | Different function |
| SDCS-OVP-H11 | Overvoltage protection board | Protection role; not interchangeable |
| SDCS-PIN-H41 | Power interface variant | Confirm converter size and hardware build |
| 01 | Isolate all mains and auxiliary supplies, lock out the converter and observe the discharge waiting time. |
| 02 | Record every connector and conductor position before removal; connectors with similar form must return to the correct headers. |
| 03 | Use 0.5 to 2.5 mm2 conductors and tighten applicable interface terminals to 0.5 N m. |
| 04 | Check F100, F101 and F102 only with the equipment isolated; replace only with the specified type and rating. |
| 05 | Before restart, inspect clearances, grounding, connector seating, 24 V polarity and communication with SDCS-CON-H01. |
|
