| General Information | |

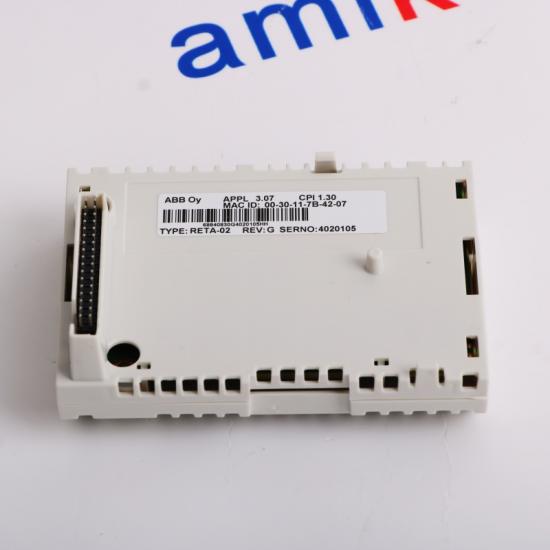

| Product ID: | ABB RETA-02 |
| Type： | EtherNet Adapter |
| Brand： | ABB |
| Technical Specifications | |
| Power Supply: | 24V DC ± 20% |
| Operating Temperature： | 0°C to 60°C |
| Storage Temperature Range： |
-20°C to 70°C |
| Power Consumption: |
Typically around 4 W |
| Mounting: |
DIN rail or panel mountable |
The RETA-02 serves as an Ethernet communication interface that supports
protocols such as EtherNet/IP and Modbus TCP/IP. This enables the device to
communicate with other automation equipment, controllers, and networks, allowing for
real-time data exchange.It facilitates the reliable and efficient transmission of data
between devices in a distributed control system. By providing connectivity over 10/100
Mbps Ethernet, the RETA-02 ensures high-speed data transfer across industrial networks.
