FAQ about RDIO-01 64379216D
| 1.What is the function of the ABB RDIO-01 Digital I/O Extension Module? |
|
The RDIO-01 module is designed to expand the digital input and output capabilities of ABB drives, specifically for applications requiring additional relay control and digital input functionality. It provides three digital inputs and two relay outputs. |
| 2.Is the RDIO-01 compatible with all ABB drives? |
|
The RDIO-01 is primarily compatible with ABB ACS800 and ACS550 series variable speed drives for extending their digital I/O capabilities. It’s essential to verify compatibility with your specific drive model before installation. |
| 3.What is the voltage rating of the RDIO-01's inputs? |
|
The RDIO-01 features digital inputs with a voltage range of 24-250 VDC and 110-230 VAC, making it versatile for various industrial environments. |
| 4.Can the relay outputs control high-power devices? |
|
Yes, the relay outputs can handle up to 1250 VA, which is suitable for controlling external devices such as alarms, lights, or other electrical equipment in industrial applications. |

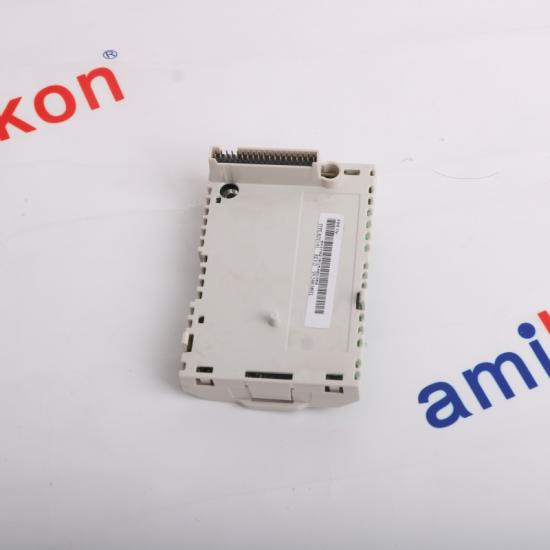

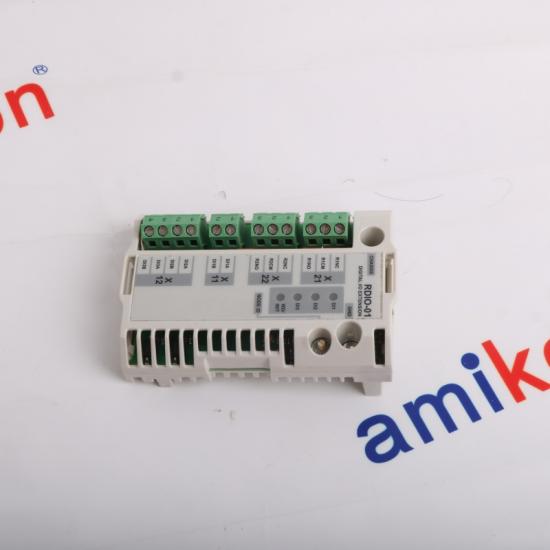

The ABB RDIO-01 is a Digital I/O Extension module designed to expand the digital input and output capabilities of ABB drives. It features three digital inputs and two relay outputs, providing versatile control options for industrial automation applications. The module supports a wide voltage range for its inputs, including 24-250 VDC and 110-230 VAC, making it suitable for a variety of environments. The relay outputs can control external devices up to 1250 VA. The RDIO-01 is compact and easily installed within control panels, offering reliable and efficient performance for digital signal expansion. Please note that this module has been discontinued by the manufacturer.
You May Like
| IS200VCRCH1BBC | IS230TNDSH2A | IS220PDIAH1A |
| IS200VTCCH1CBB | IS210AEPSG2BCB | IS200TBCIS2C |
| IS215WEPAH2BDA | IS200VCMIH2BF | IS215VCMIH2BC |
| IS210BPPCH1AD | IS200SRLYH2AAA | IS200VCMIH2BCD |
| IS215VPROH2BD | IS215WEPAH2BDA | IS215UCVEH2AE |
| IS21SVCMIH2CB | IS210BPPCH1AD | IS2020RKPSG1AK |
| DS200SIOBH1ABA | IS200VCMIH2CAA | IS2020RKPSG1AL |
| IS215UCVEH2AB | IS200VCMIH2BCC | IS2020RKPSG2A |
| IS210MACCH2AEG | IS200VCMIH2BCB | IS200BPVCG1BR1 |
| IS215WEPAH2BA | IS215VCMIH2CC | 259B2460BTG2 |
| IS210BPPCH1AEC | IS200VAICH1CBA | 259B2460ARG1 |
| IS200AEPAH1BHC | IS200VSVOH1BEF | IS210BPPBH2CAA |
| IS220PDOAH1A | IS200VVIBH1CAC | IS200VCMIH2B |
| IS220PAICH2A | IS200VSVOH1BDC | IS200UCVEH2A |
| IS220PDIAH1A | IS200VVIBH1CAB | IS200VAICH1D |
Please contact us and look forward to our cooperation!
ABB 07KT92 GJR5250500R0202 is 07 KT 92 Central Unit - 90 Series 24 VDC Power Supply CPU - 14 K FLASH EPROM twelve 24 VDC inputs Eight 24 VDC/ 0.5A transistor outputs 4 analogue inputs 12 bits resolution 2 analogue output 12 bits resolution 2 programmable RS 232 port RS 485 system The Dimensions is 24 cm x 13.7 cm x 8.5 cm, and the weight is 1 lbs 10.1 oz (0.64 kg ).
ABB DSPC172H 5731001-MP Master CPU Module DSPC172H ABB Master CPU Module Model Type: 57310001-MP/2 DSPC 172H ABB Master CPU Module, article number 57310001-MP/2. Firmware prom sub-modules. Dimensions: 5.1 cm x 25.4 cm x 25.4 cm Weight: 2 lbs 8.0 oz (1.1kg ) Series: ABB Master series module
ABB DSQC201 YB560103-AB Robot Module DSQC 201 Robot Module Model Type: YB560103-AB Dimensions: 15.2 cm x 2.5 cm x 22.9 cm Weight: 0 lbs 6.0 oz (0.2kg ) Series: ABB Robots robotics series module
ABB DSQC541 PCB Backplane Controller Card DSQC541 DSQC 541 Backplane Card module Model Type: DSQC541 DSQC 541 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C Storage Temperature: -25°C to 70°C Dimensions: 19.2 cm x 12.5 cm x 22.9 cm Weight: 0 lbs 6.0 oz (0.220 kg ) Series: ABB Robots robotics series module
ABB DSQC608 3HAC12934-1 Robotics Power Supply Module DSQC608 3HAC12934-1 DSQC 608 Model Type: 3HAC12934-1 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C Dimensions: 7.1x13.5x18.5cm Weight: 1.380 kg Series: ABB Robots robotics IRC5 Single series module
ABB DSQC643 3HAC024488-001/01 Controller Panel Board DSQC 643 DSQC643 3HAC024488-001/01 Model Type: 3HAC024488-001/01 Input Voltage: 24V DC Operating Temperature: 0°C to 45°C ROBOTICS FOR IRC5 CABINET WITH FLAT DOORS Dimensions: 28x20.3x2.7cm Weight: 0.400 kg Series: ABB Robots robotics controller IRC5 Single series module
ABB IMDSO14 Digital Output Slave Module Parts Type: Digital Output Slave Model Type: Bailey Infi 90 IMDSO14 Digital Output Slave, 16-Channel Open Collector, Power Requirements +5 VDC, 370 mA Dimensions: 17.8 cm x 5.1 cm x 33.0 cm Weight: 0.200 kg Series: ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90
ABB MB510 3BSE002540R1 Program Card Interface Module Parts Type: MB510 Program Card Interface Model Type: 3BSE002540R1 Country of Origin: Sweden Dimensions: 2.2x17x10.2cm Weight: 0.1400 kg Series: Advant OCS with Master, Advant Controller 450RMC
