ABB • ANALOG INPUT TERMINATION UNIT
NTAI06
AI Termination Unit 16 CH

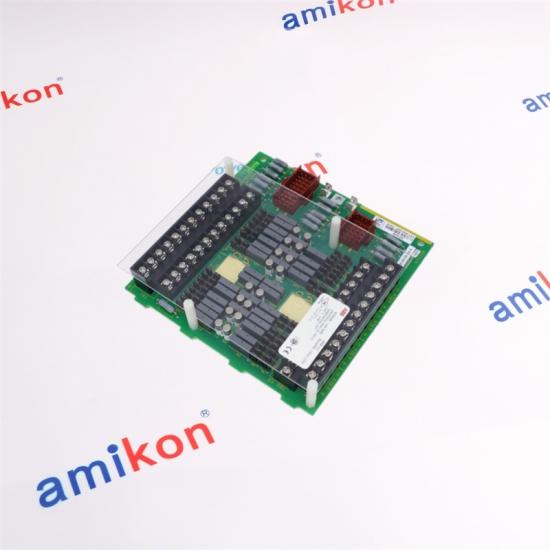

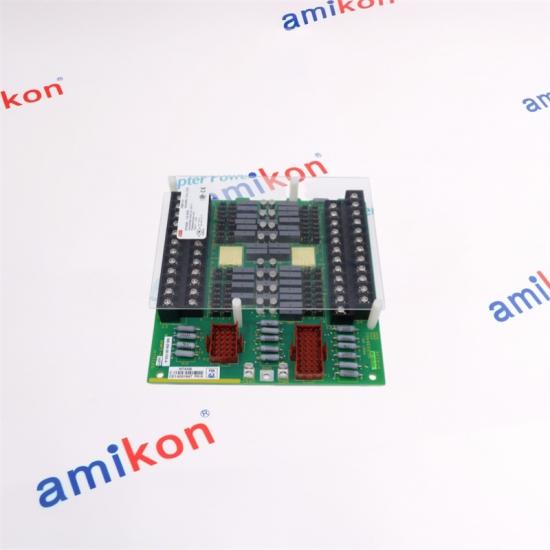

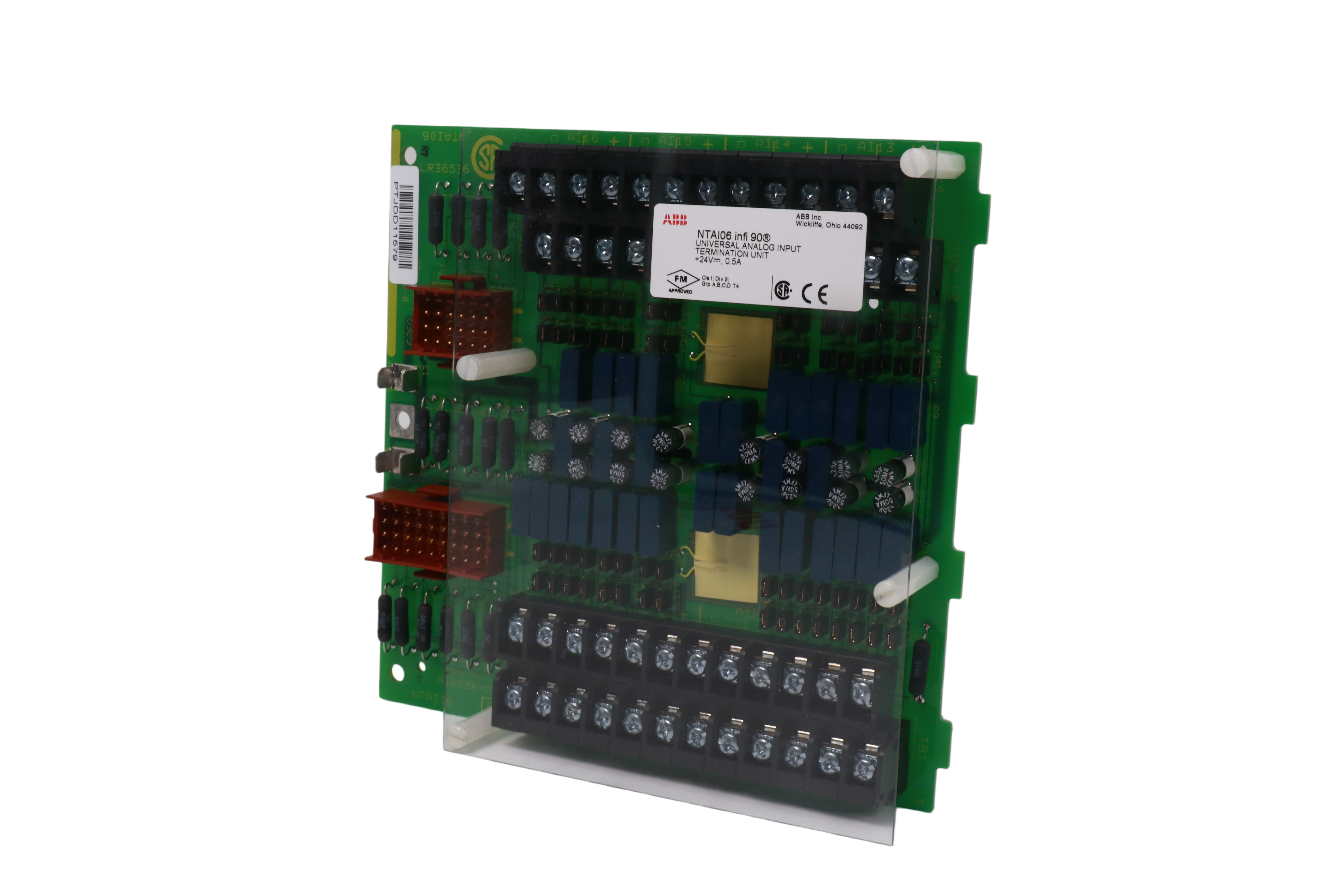

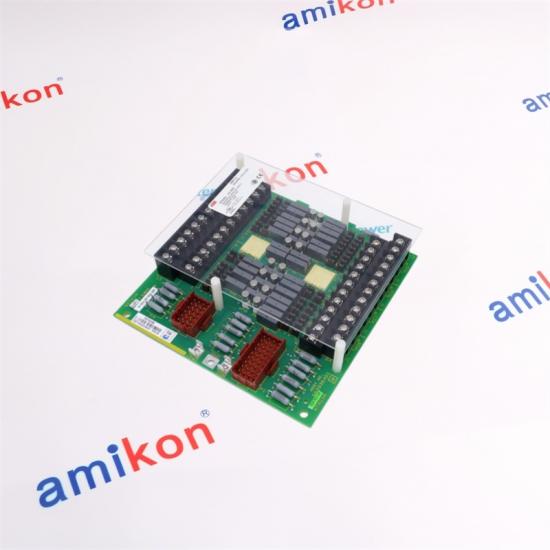

The ABB NTAI06 is an analog input termination unit designed to provide signal paths between 16 field input signals and the SPASI analog input module.
|
 |
|
PRODUCT TYPE
Module Termination Unit
|
CHANNELS
16 Analog Inputs
|
SYSTEM USE
ASI / NKAS
|
PART NUMBER
NTAI06
|
| Parameter | ABB NTAI06 |
| Product ID | NTAI06 |
| ABB Type Designation | NTAI06 |
| Catalog Description | AI Termination Unit 16 CH |
| Termination Capacity | 16 field input signals |
| Signal Path | Field signals to SPASI analog input module |
| System Association | ABB Symphony / Harmony process control environment |
| Compatible Signal Interface | SPASI analog input architecture |
| Net Length | 96.52 mm |
| Net Height | 236.22 mm |
| Net Width | 218.44 mm |
| Net Weight | 0.635 kg |
|
01
|
Signal Interface
NTAI06 provides the termination path required for 16 field analog input signals before they reach the associated SPASI analog input module.
|
02
|
16-Channel Architecture
The 16-channel arrangement provides an organized interface between field wiring and the analog input section of the control system.
|
|
16
Field Inputs
Designed around a 16-channel analog input termination arrangement.
|
AI
Analog Input Path
Connects field input signals with the SPASI analog input module architecture.
|
SYS
Process Control
Relevant when maintaining ABB process-control installations using the associated analog input architecture.
|
|
01. What is the ABB NTAI06 designed to do?
ABB identifies NTAI06 as an AI Termination Unit 16 CH. It provides signal paths between 16 field input signals and the SPASI analog input module.
|
|
02. How many field input signals can the NTAI06 terminate?
The ABB NTAI06 is specified as a 16-channel analog input termination unit, providing signal paths for 16 field inputs.
|
|
03. Which analog input module is associated with NTAI06?
ABB's Symphony Plus product catalog describes NTAI06 as providing signal paths between 16 field input signals and the SPASI analog input module.
|
|
04. What are the published dimensions of ABB NTAI06?
The listed net dimensions are approximately 96.52 mm in length, 236.22 mm in height, and 218.44 mm in width.
|
|
05. What is the net weight of the NTAI06?
The listed net weight for ABB NTAI06 is approximately 0.635 kg.
|
|
