ABB
PROCESS AUTOMATION
|
ABB BAILEY / INFI-NET

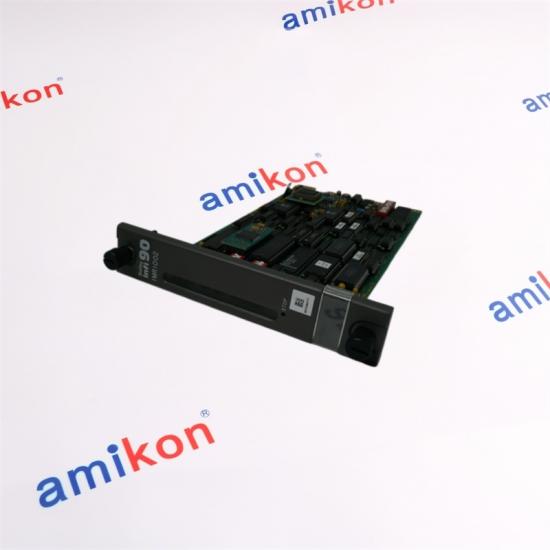

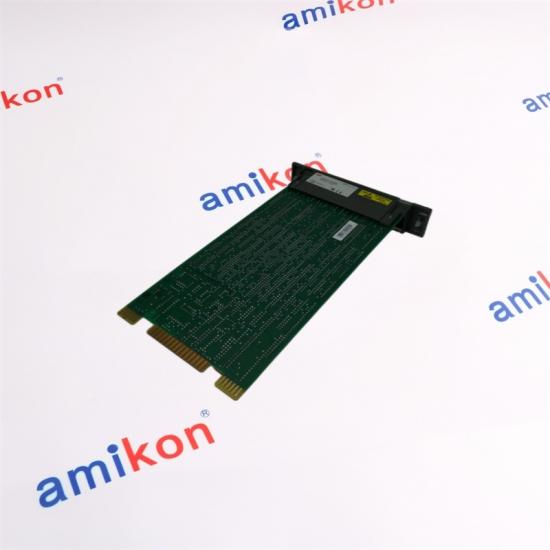

INIIT12
INFI-NET to INFI-NET Transfer Module
A microprocessor-based transfer module designed for INFI-NET communication, providing serial communication between INIIT12 modules and direct communication with its associated INNIS01 module and Controlway.
INFI-NET RS-232-C Controlway
|
PART NUMBER
INIIT12
SUPPLY
+5 VDC
POWER
10 W
|
|
MEMORY
256 / 512 / 256 KB
ROM / RAM / NVRAM
|
SERIAL PORTS
2 × RS-232-C
User-selectable communication
|
RATE
Up to 19.2 kbaud
User-selectable
|
MOUNTING
1 Slot
Standard module mounting unit
|
| Module type | INFI-NET to INFI-NET Transfer Module |
| Memory | 256 KB ROM; 512 KB RAM; 256 KB NVRAM |
| Power requirement | +5 VDC at 2 A; 10 W |
| Communication ports | 2 × RS-232-C |
| Communication rate | User-selectable up to 19.2 kbaud |
| Mounting | One slot in a standard module mounting unit |
| Communication architecture | Communication with another INIIT12, associated INNIS01 and Controlway |
|
01
INFI-NET Network
Used as part of an INFI-NET to INFI-NET transfer interface.
|
02
INNIS01 Interface
The module directly communicates with its associated INNIS01 module.
|
03
Serial Communication
Two RS-232-C ports provide the serial communication interface.
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
