Product Details

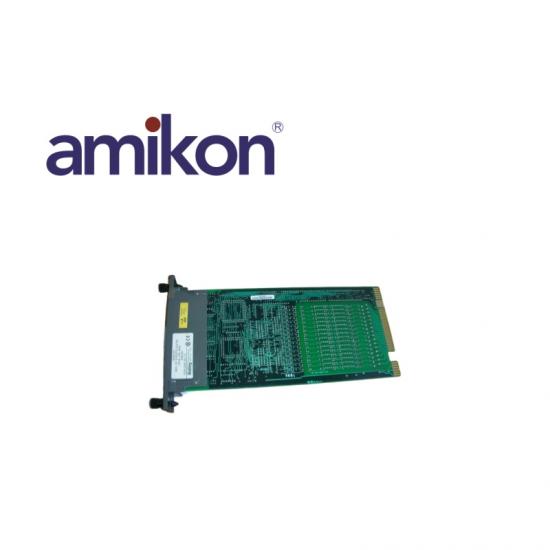

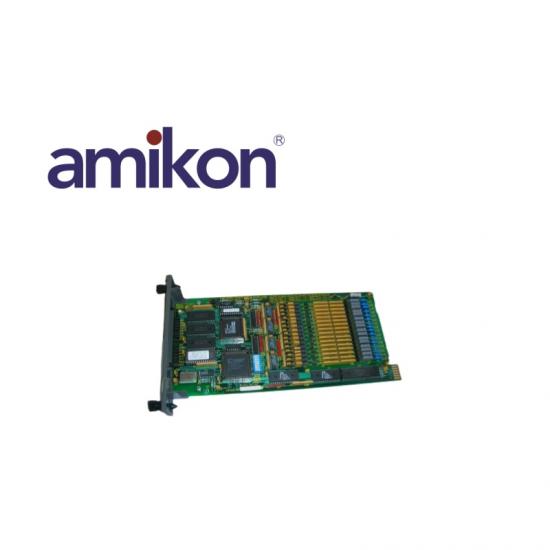

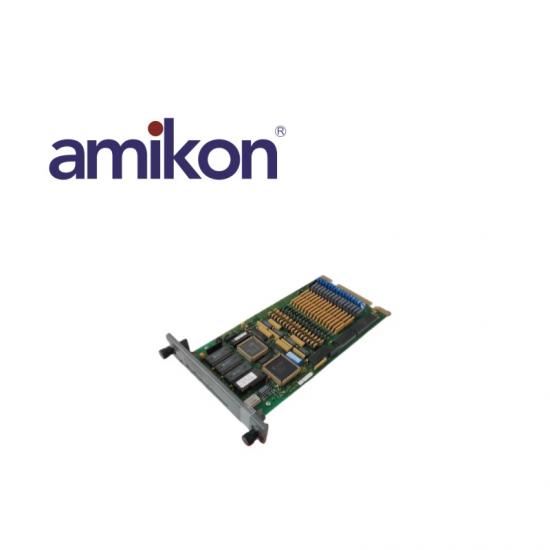

| IMSED01 | |
| Power requirements | |
| Operating voltage | +5 VDC, ±5% at 350 mA typical |
| Microprocessor | 16 bits running at 10 MHz |
| Memory |
64 kb RAM 64 kb RO |
| Digital inputs | |
| Voltage |
24 VDC (±10%) 48 VDC (±10%) 125 VDC (±10%) 120 VAC (±10%) (only for system control logic) |
| Propert | Characteristic/Value |
| Digital inputs | |
| Current (typical) |
5 mA (24 VDC) 4 mA (48 VDC) 4 mA (125 VDC) 5 mA (120 VAC) |
| Turn on voltage (minimum) | |
|
24 VDC 48 VDC 125 VDC 120 VAC |
21.6 VDC 43.2 VDC 112.5 VDC 108 VAC |
| Turn off voltage (maximum) | |
|
24 VDC 48 VDC 125 VDC 120 VAC |
10 VDC 20 VDC 50 VDC 50 VAC |
If you want to more details，please contact me without hesitate. Email：sales@amikon.cn
