ABB HARMONY RACK COMMUNICATIONS
IMMPI01
Multifunction Processor Interface Module

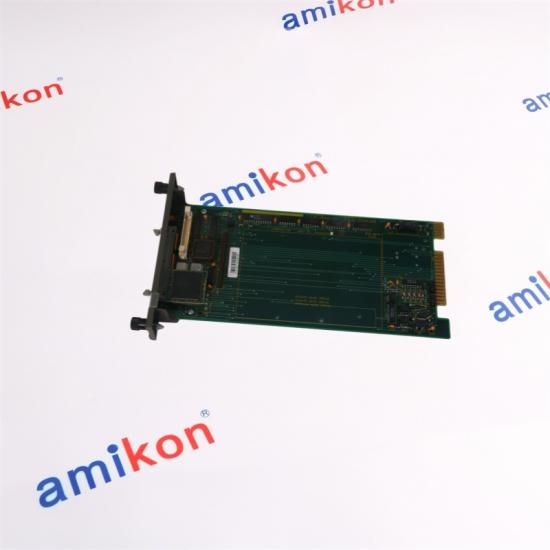

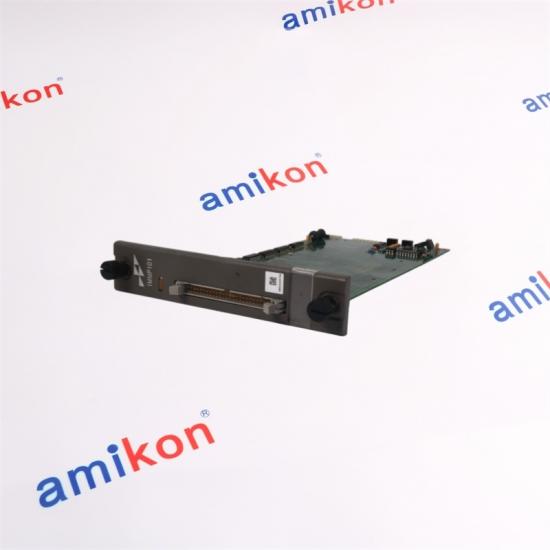

The ABB IMMPI01 is a rack-mounted multifunction processor interface module designed to handle the I/O interface between a host computer and the INICT03A Computer Transfer Module. It supports either a SCSI or RS-232-C computer interface.
SCSI RS-232-C 1-Slot Module
|
PRODUCT ID
IMMPI01
Function: Host computer interface
Interface: SCSI / RS-232-C Communication: Host ↔ INICT03A Mounting: One MMU slot |
|
✓
BRAND NEW
Packaging
|
3–5
DAYS
Delivery
|
12
MONTHS
Warranty
|
24/7
INQUIRY
Global Support
|
|
Designed for the Host Computer Interface
The IMMPI01 provides the interface path between the host computer and the INICT03A Computer Transfer Module within an ABB Harmony rack communication architecture.
|
|
01
Host Interface
Handles the I/O interface between the host computer and the INICT03A Computer Transfer Module.
|
02
Dual Interface Choice
Supports either an SCSI computer interface or an RS-232-C computer interface.
|
03
Rack Integration
The module is a single printed circuit board occupying one slot in the module mounting unit.
|
| Manufacturer | ABB |
| Model | IMMPI01 |
| Product Type | Multifunction Processor Interface Module |
| Computer Interfaces | SCSI or RS-232-C |
| RS-232-C Operation | DCE or DTE |
| PCB Construction | Single printed circuit board |
| Mounting | One slot in the module mounting unit |
|
HOST
Computer
|
→ |
INTERFACE
IMMPI01
|
→ |
TRANSFER
INICT03A
|
|
SYSTEM ROLE
It belongs to the ABB Harmony rack communication architecture where host-computer communication is required through the INICT03A Computer Transfer Module.
|
WHY IT IS SEARCHED
Engineers may identify IMMPI01 when host communication is interrupted, the computer interface is unavailable, or the interface module requires replacement during maintenance.
|
DOWNTIME RISK
A failed interface can affect the communication path between the host computer and the computer transfer module, potentially delaying monitoring, data acquisition or control-related operations.
|
|
