ABB HARMONY RACK I/O
ABB IMFEC12
Analog Input Module

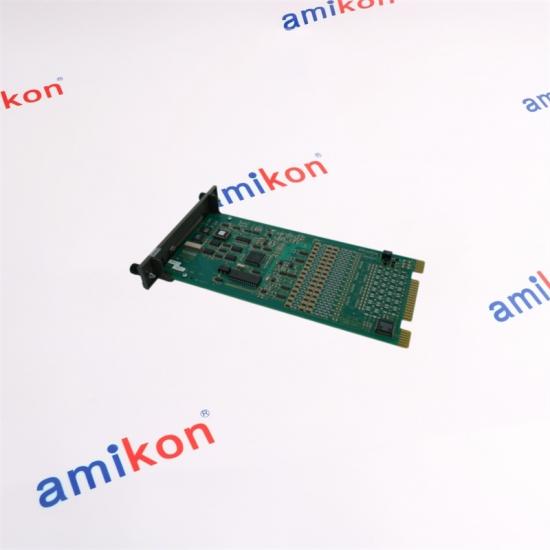

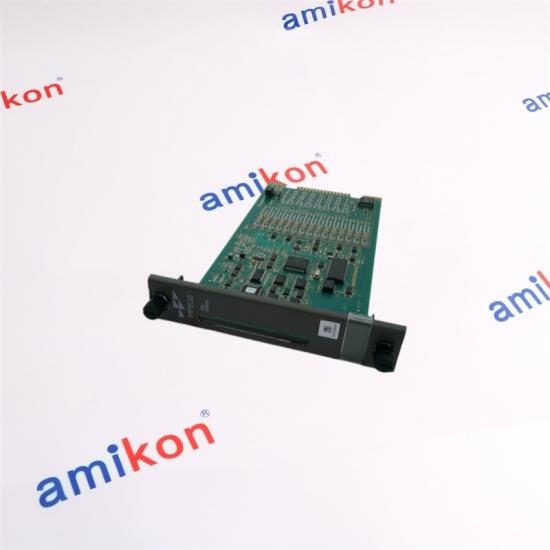

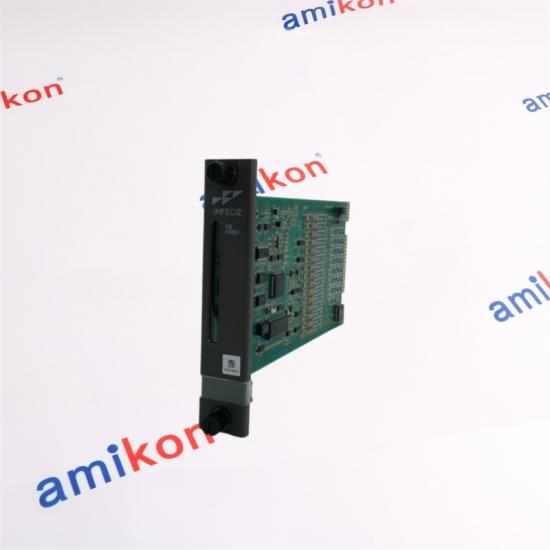

The ABB IMFEC12 is a Harmony Rack analog input module designed for process-control applications requiring multiple independently configured analog input channels. The module supports current and voltage input ranges and occupies a single slot in a standard INFI 90 OPEN module mounting unit.
|
PART NUMBER
IMFEC12
Harmony Rack
Analog Input |
|
15
Independently Configured
Analog Inputs |
6
Input Signal
Ranges |
14
Bits with
Polarity |
5/s
A/D Conversion
Rate |
| Manufacturer | ABB | Model | IMFEC12 |
| Product Family | Harmony Rack I/O | Function | Analog Input |
| Input Channels | 15 | Mounting | Single MMU Slot |
| Conversion | A/D, 5 times/sec | Resolution | 14 bits with polarity |
|
CURRENT INPUT
4–20 mA
Standard process-current input range
|
VOLTAGE INPUT
1–5 VDC
Configurable voltage signal range
|
LOW-LEVEL INPUT
0–1 VDC
Low-level voltage measurement
|
|
VOLTAGE RANGE
0–5 VDC
|
VOLTAGE RANGE
0–10 VDC
|
BIPOLAR INPUT
−10 to +10 VDC
|
| Parameter | IMFEC12 |
| Analog Inputs | 15 independently configured channels |
| A/D Conversion | 5 times/sec |
| A/D Resolution | 14 bits with polarity |
| Accuracy — Current | 0.10% |
| Accuracy — Voltage | 0.10% for listed standard voltage ranges |
| Normal Mode Rejection | 70 dB minimum at 50/60 Hz |
| Common Mode Rejection | 90 dB minimum at 50/60 Hz |
| Input Impedance | Greater than 1 MΩ per channel |
| Mounting | Single slot in standard INFI 90 OPEN MMU |
|
Power Requirements
+5 VDC: ±5%, 85 mA typical
+15 VDC: ±5%, 25 mA typical −15 VDC: ±5%, 20 mA typical Power Dissipation: 1.1 W typical |
Signal Integrity
The module provides high input impedance and strong rejection performance at 50/60 Hz, helping analog process signals remain usable in electrically noisy control environments.
|
|
FIELD SIGNALS
4–20 mA and multiple DC voltage ranges
|
RACK I/O
Harmony Rack / INFI 90 OPEN architecture
|
PROCESS DATA
Analog values transferred into the control system
|
|
PACKAGING
Brand New
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
|
