PRODUCT
IMDSI02
ABB
Harmony Rack Digital Input |
16-CHANNEL DIGITAL INPUT MODULE

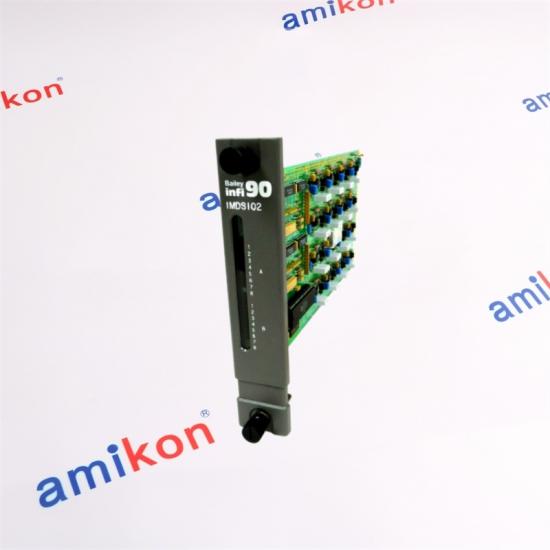

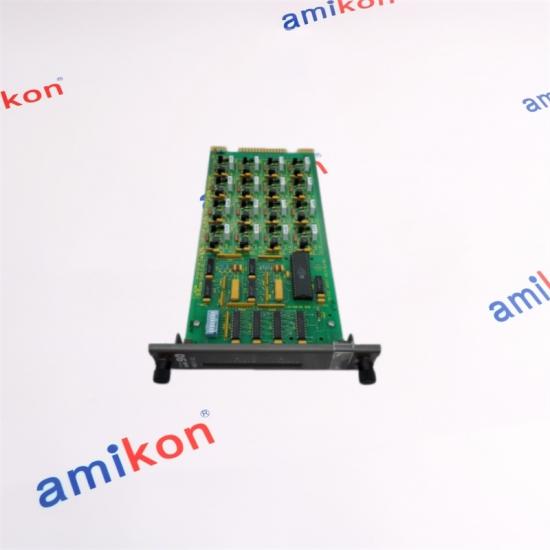

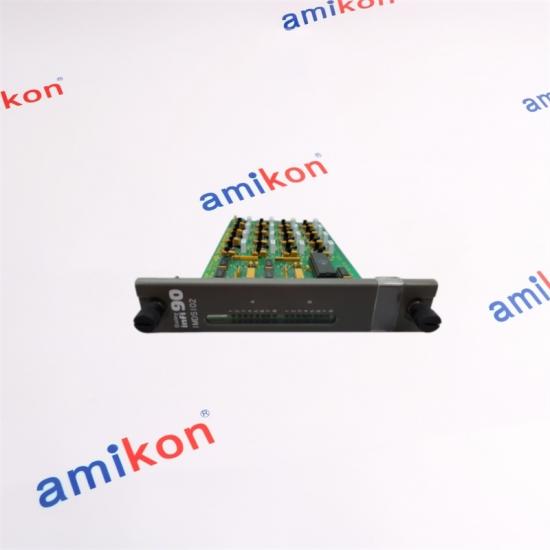

ABB IMDSI02A 16-channel digital input module for the ABB Harmony Rack Series, supporting digital field signals of 24 VDC, 125 VDC and 120 VAC. Designed for discrete field signal acquisition within the Harmony Rack architecture.
|
QUICK IDENTIFICATION
IMDSI02
TYPE
Digital Input
CHANNELS
16
SIGNALS
24 VDC / 125 VDC / 120 VAC
|
| PACKAGING Brand New |
DELIVERY 3–5 Days |
WARRANTY 12 Months |
|
TECHNICAL DATA
At a Glance
The IMDSI02 provides digital input processing for discrete field signals within the Harmony Rack Series. |
|
|
INPUT STRUCTURE
16 DI Channels
|
|
|
CONTROL SYSTEM CONTEXT
Built Around
Discrete Signals IMDSI02 is used where discrete field conditions need to be brought into the Harmony Rack control architecture through digital input channels. |
|
|
SUPPLY
Fast Response
Amikon's large stock is the core of our supply. Our inventory covers more than 400,000 industrial electronic products across PLC, HMI, drives, servo, CNC, IPC and PG categories. |
PROFESSIONAL TEAM
|
AUTOMATION STOCK
|
|
01
What is ABB IMDSI02?
It is a 16-channel digital input module associated with the ABB Harmony Rack Series.
|
02
How many digital inputs are provided?
IMDSI02 provides 16 digital input channels.
|
|
03
Which input signal ranges are associated with IMDSI02?
The specified signal ranges are 24 VDC, 125 VDC and 120 VAC.
|
04
Are the IMDSI02 inputs isolated?
Yes. The inputs are optically isolated.
|
|
05
Is there anything important about the input connections?
Yes. Inputs 7 and 8 share a common connection on the terminal unit, as do inputs 15 and 16. Each pair must therefore use the same voltage source.
|
|
