ABB IET800 INFI-Net to Ethernet Transfer Module

ABB IET800
ABB IET800
ABB IET800

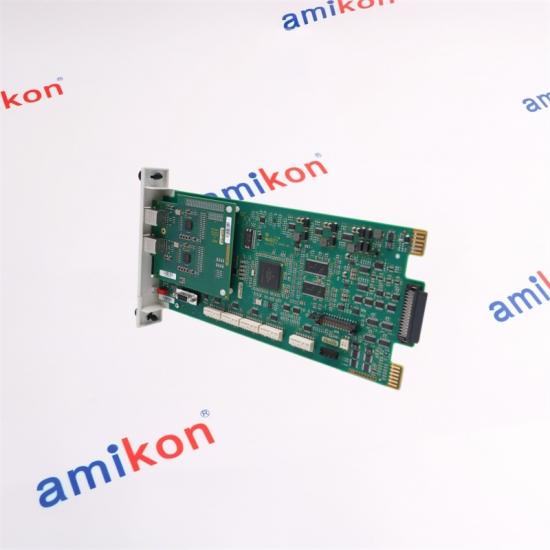

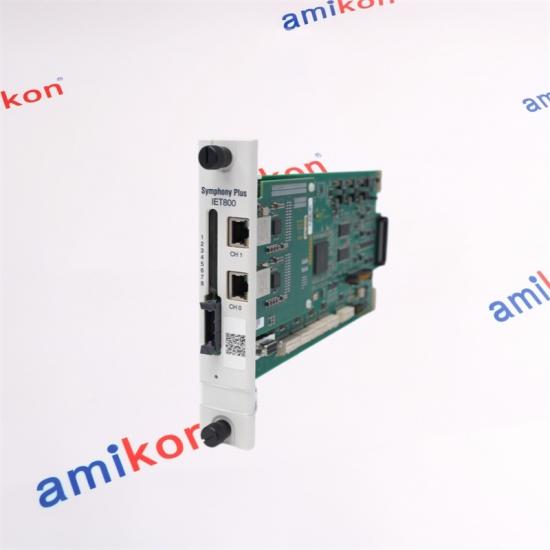

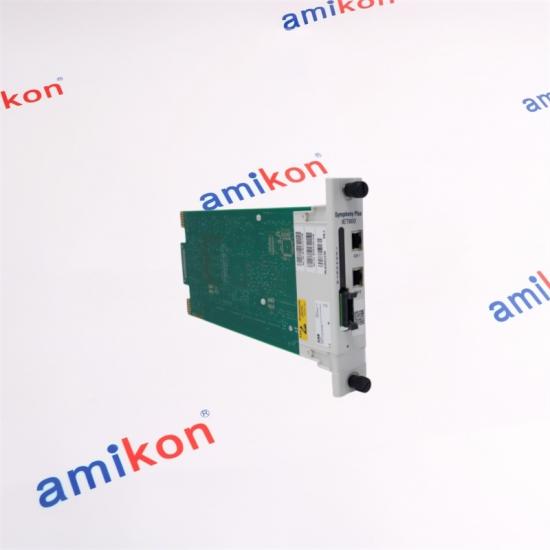

ABB IET800 INFI-Net to Ethernet Transfer Module

Calculate shipping
Quotation Request

ABB · SYMPHONY PLUS
IET800
INFI-Net to Ethernet
Transfer Module
256
MHz CPU
64 MB
DRAM
10/100
Mbps Ethernet
30,000
Tag Database
Large Stock.
Faster Response.
DELIVERY
3–5 Days
WARRANTY
12 Months


ABB · SYMPHONY PLUS · COMMUNICATION
IET800
INFI-Net to Ethernet Transfer Module

ABB IET800 is an Ethernet communication module that interfaces with the INFI90 control system. ABB identifies it as an INFI-Net to Ethernet Transfer module within the Symphony Plus communication offering.

PRODUCT
IET800

SYSTEM
Symphony Plus
PROCESSOR
MCF5475
32-bit · 256 MHz
MEMORY
64 MB
DRAM
TAG CAPACITY
30,000
Tag database
UPDATE RATE
>1,500
XR's / sec
01 — PRODUCT POSITION

Built around
communication.

IET800 provides Ethernet communication for an INFI-Net based control environment. ABB specifies Ethernet Channel 0 with a 10/100 Mbps RJ45 connection, while Channel 1 is reserved for future use.

10/100
Mbps Ethernet
100 m
CAT5 or better
2 MB
NVRAM
10
Composer Clients
02 — TECHNICAL SPECIFICATIONS

Technical profile

ABB IET800 communication characteristics
Microprocessor
ColdFire MCF5475, 32-bit CPU @ 256 MHz; approximately 400 MIPS
Memory
64 MB DRAM / 2 MB NVRAM
Ethernet CH 0
10/100 Mbps · RJ45 connector
Ethernet CH 1
Reserved for future use
Cable
Up to 100 m · CAT5 or better
Serial Ports
Via any port on TMP01 · 19.2K / 38.4K / 57.6K / 115.2K Baud
Tag Capacity
30,000 tag database
Maximum Update Rate
Greater than 1,500 XR's / sec
Client / Server
Up to 10 Composer Clients
03 — APPLICATION CONTEXT

Where IET800 fits

SYSTEM
INFI90

ABB describes IET800 as an Ethernet communication module that interfaces to the INFI90 control system.

COMMUNICATION
INFI-Net ↔ Ethernet

The module provides the transfer path between INFI-Net based communication and Ethernet.

MAINTENANCE
Communication Link

Communication interruption can affect information exchange and may lead to additional diagnostic and recovery time.

Replacement planning
For maintenance replacement, confirm the complete ABB part number and system configuration before ordering. Correct identification helps reduce the risk of installing an incompatible communication component.
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
PART NUMBER
IET800
04 — SUPPLY CAPABILITY

Large Stock.
Faster Response.

Amikon's large stock is the core of our supply. Our inventory contains more than 400,000 electronic products, including PLC, HMI, drivers, servo and CNC devices, IPC and PG.

Whether new or out of production, from individual modules to complete configurations, our supply focuses on industrial automation requirements.

More than 20 language services are available, with customers located in 152 countries and regions.

Amikon Team
Amikon Warehouse
Strategic sourcing · Stock availability · Preferred supplier network
05 — FAQ

IET800 / Questions

01
What communication function does ABB IET800 provide?
ABB identifies IET800 as an INFI-Net to Ethernet Transfer module, providing Ethernet communication for the INFI90 control-system environment.
02
Which Ethernet connection is specified for IET800?
Ethernet Channel 0 is specified for 10/100 Mbps communication through an RJ45 connector. Channel 1 is reserved for future use.
03
What processor and memory configuration does IET800 use?
The specified processor is a ColdFire MCF5475 32-bit CPU at 256 MHz, with approximately 400 MIPS. Memory is 64 MB DRAM and 2 MB NVRAM.
04
What tag capacity is specified for ABB IET800?
ABB specifies a 30,000-tag database capacity for the IET800 communication module.
05
How many Composer clients can IET800 support?
The ABB specification lists support for up to 10 Composer Clients.
07 — REQUEST A QUOTATION

Need ABB IET800?

Send five details and our sales team can check the requirement more efficiently.

Part Number Quantity Destination Required Date Machine/System
SALES MANAGER
Miya zheng
Phone / WhatsApp: 86-18020776792
ABB IET800
Industrial Automation Communication · Replacement Supply
Hot Tags : ABB IET800 IET800 Module IET800 ldFire MCF5475 IET800 INFI-Net IET800 PDF IET800
