ABB BAILEY INFI 90
IEPMU01
Power Mounting Unit • Rear Mount

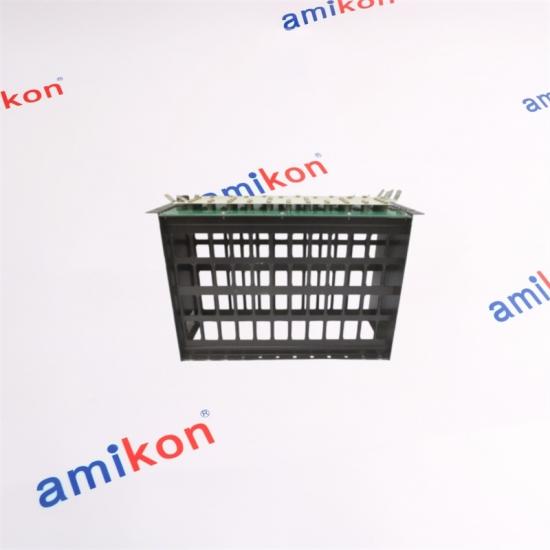

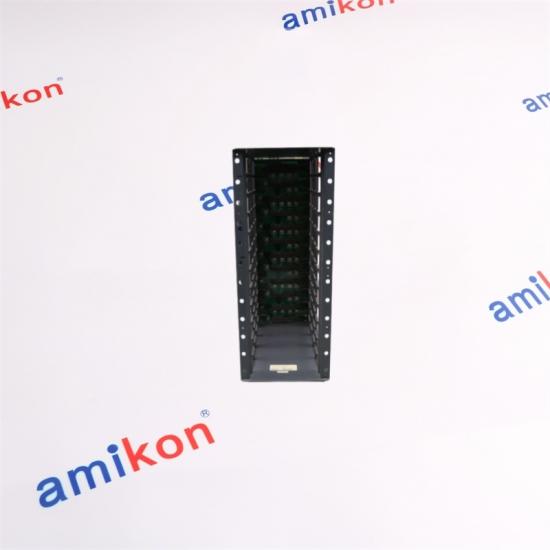

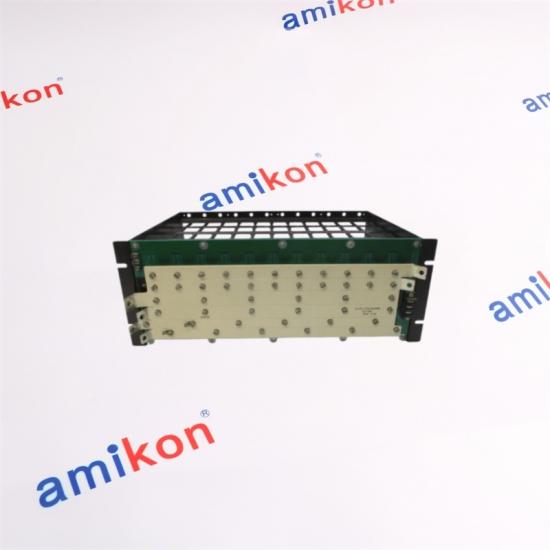

The ABB IEPMU01 is a rear-mount power mounting unit associated with the ABB Bailey INFI 90 Modular Power System. It provides the mounting platform for power modules used within the system power architecture.
|
POWER SYSTEM
IEPMU01
REAR MOUNT
10 POWER MODULES ABB BAILEY INFI 90
|
|
Product Type
Power Mounting Unit
|
Mounting
Rear Mount
|
Capacity
10 Power Modules
|
Delivery
3–5 Days
|
|
01 / PRODUCT ROLE
A mounting point built around the power architecture
Within the ABB Bailey INFI 90 power architecture, the IEPMU01 serves as a rear-mount power mounting unit. Its role is structural and electrical: it provides the mounting arrangement for the power modules used by the modular power system.
Designed for modular power-system integration
The unit is associated with the INFI 90 Modular Power System and is used with compatible power modules rather than functioning as a standalone control processor.
|
|
|
Manufacturer
ABB Bailey
|
Product Family
INFI 90
|
|
Part Number
IEPMU01
|
Function
Power Mounting Unit
|
|
Mounting Style
Rear Mount
|
Module Capacity
10 Power Modules
|
|
03 / SYSTEM FIT
Where IEPMU01 fits
The IEPMU01 belongs to the power side of the ABB Bailey INFI 90 architecture. In the modular power system, the mounting unit works with compatible power modules to organize the cabinet power arrangement.
|
Compatible power-system hardware includes power entry panels and power modules used within the INFI 90 modular power arrangement.
|
||||||
|
SYSTEM
INFI 90 Power Architecture
Used in the modular power arrangement associated with ABB Bailey INFI 90 system cabinets.
|
SEARCH TRIGGER
Power Mounting Problems
A replacement search can arise when the mounting unit is damaged, unavailable, or when an existing legacy power-system assembly needs to be restored.
|
DOWNTIME IMPACT
Power-System Recovery
Because the mounting unit forms part of the power-system assembly, unavailable hardware can delay cabinet restoration and extend equipment downtime.
|
|
05 / SUPPLY PROMISE
Ready for urgent replacement planning
|
Need IEPMU01?
Send the exact part number first.
For a faster quotation, please provide the Part Number, Quantity, Destination, Required Date, and Machine/System.
|
|
01. What is ABB IEPMU01 designed for?
IEPMU01 is a Power Mounting Unit with a rear-mount configuration for the ABB Bailey INFI 90 modular power-system arrangement.
|
02. How many power modules can IEPMU01 mount?
The IEPMU01 is specified for mounting 10 power modules.
|
|
03. Is IEPMU01 a controller or a power mounting assembly?
It is a power mounting unit, not a standalone controller. Its role is to provide the mounting arrangement for compatible power modules.
|
04. Where does IEPMU01 fit in the INFI 90 system?
It belongs to the power-system portion of the INFI 90 cabinet architecture and works with compatible modular power hardware.
|
|
05. What information should be included when requesting IEPMU01?
Please provide the exact Part Number, Quantity, Destination, Required Date, and Machine/System. This helps identify the required replacement and shipping plan.
|
|
|
