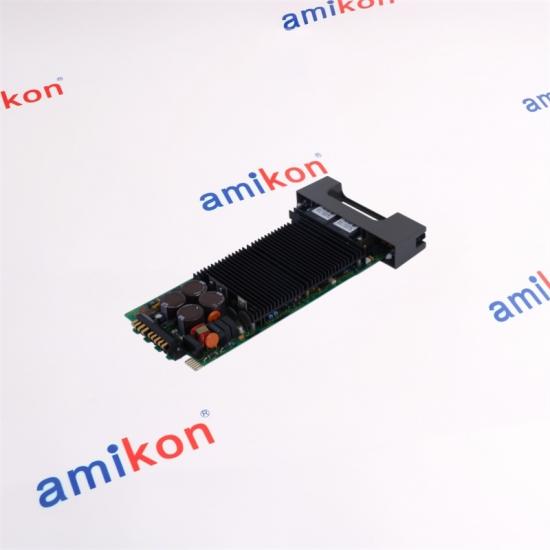

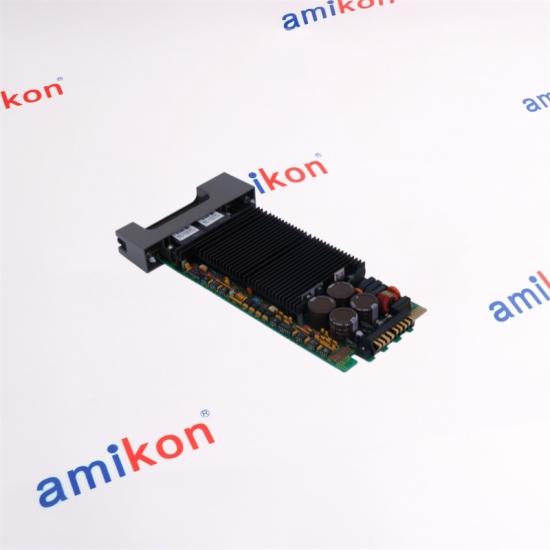

A system power module for the INFI 90 AC Modular Power System, designed to provide regulated DC power for system and I/O loads within an INFI 90 system cabinet.
IEPAS02 is the AC system power module used in the INFI 90 AC Modular Power System. The module converts the configured AC input into regulated DC outputs required by the system power buses. Its output arrangement supports system electronics together with 24 VDC I/O power requirements.
For critical automation spare-part requirements, we focus on clear communication, practical lead times and careful order handling.
The IEPAS02 belongs to the AC Modular Power System used to supply system and I/O power to components installed within an INFI 90 system cabinet.
A power-module replacement becomes relevant when the cabinet power system no longer maintains the required DC output levels or when the installed module must be replaced during maintenance.
Loss of required system power can affect the operation of cabinet-mounted INFI 90 equipment. Having the correct replacement available can help reduce maintenance-related production interruption.
IEPAS02 is an AC system power module for the INFI 90 AC Modular Power System. It provides regulated DC power for system loads and 24 VDC I/O requirements.
The module supports jumper-configurable 120 VAC or 240 VAC nominal input. The corresponding ranges are 90–132 VAC and 180–264 VAC.
IEPAS02 provides +5 VDC, +15 VDC, −15 VDC and 24 VDC I/O power. Maximum current outputs are 13 A for 5 VDC, 0.8 A for ±15 VDC and 4 A for 24 VDC.
The maximum output power specified for IEPAS02 is 130 W per module. The specification also identifies a maximum heat dissipation of 30 W per module.
The power module mounts in a single slot of the module mounting unit or power mounting unit. In the modular power architecture, multiple power modules share the same load buses, with load sharing depending on the equality of their voltage outputs.
