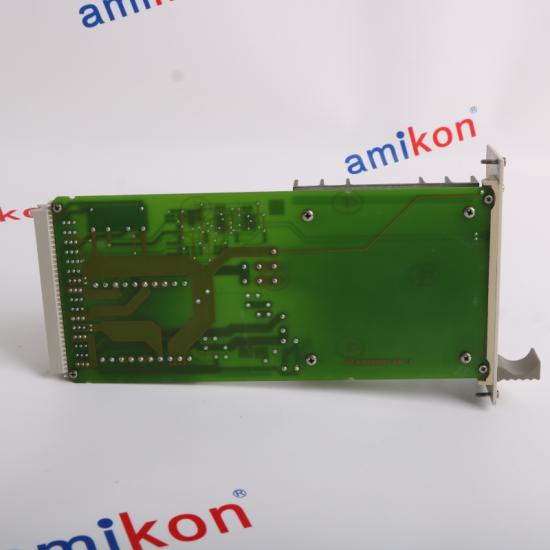

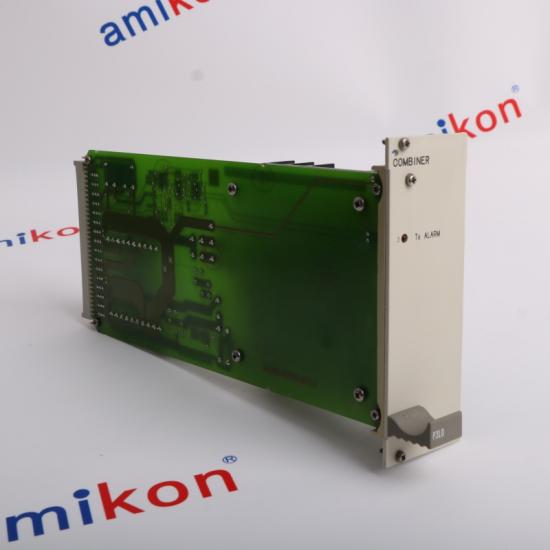

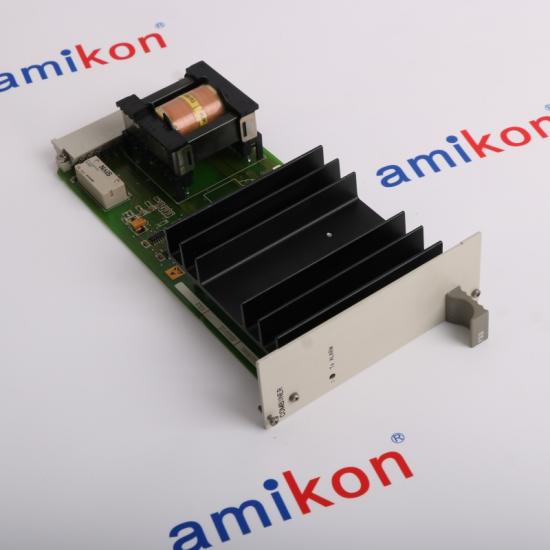

ABB HENF209651R0001 P3LD Communication Interface

The ABB HENF209651R0001 P3LD Communication Interface is a robust control module engineered for high-speed industrial operations. It features an advanced microcontroller architecture that ensures quick processing speeds and precise control signals.​

High-Speed Communication: It supports MODBUS RTU communication over RS485, enabling fast and reliable data transfer between connected devices.

Versatile I/O Capability: The module provides 8 input channels and 4 output channels, offering flexible configuration to suit various industrial control applications.

Wide Operating Temperature Range: Designed to function in extreme conditions, it operates efficiently in a temperature range of -25°C to +60°C, ensuring reliability even in harsh environments.

Industrial Control Systems: The module is ideal for connecting various field devices like sensors, actuators, and controllers to central control systems, enabling real-time monitoring and control in industrial environments.

The ABB HENF209651R0001 P3LD Communication Interface operates with a voltage range of 24 V DC ± 20% and has a maximum current consumption of 100 mA. It utilizes the MODBUS RTU communication protocol over RS485 and supports 8 digital inputs and 4 digital outputs. The interface has screw terminal connections and is designed for DIN rail mounting. It operates within a temperature range of -25°C to +60°C, with a storage range of -40°C to +85°C and a relative humidity tolerance of 5% to 95% (non-condensing). The housing is made of aluminum alloy, and the device weighs approximately 0.5 kg. It supports a communication speed of up to 115.2 kbps and features 1500 V AC isolation between power and communication ports. The interface complies with RoHS environmental standards and carries certifications such as CE and UL.

Compact and Durable: Housed in a lightweight aluminum alloy casing, the module is compact, easy to integrate, and built to withstand demanding industrial applications.

Process Automation: It is widely used in process industries such as chemical, pharmaceutical, and food and beverage manufacturing, where precise communication and data exchange are required for process monitoring and optimization.

Energy Efficient: The module has a low current consumption of 100 mA, making it energy-efficient and reducing overall system power demands.

Energy Management Systems: The module facilitates communication between energy meters, controllers, and supervisory systems, helping optimize energy consumption and improve operational efficiency.
