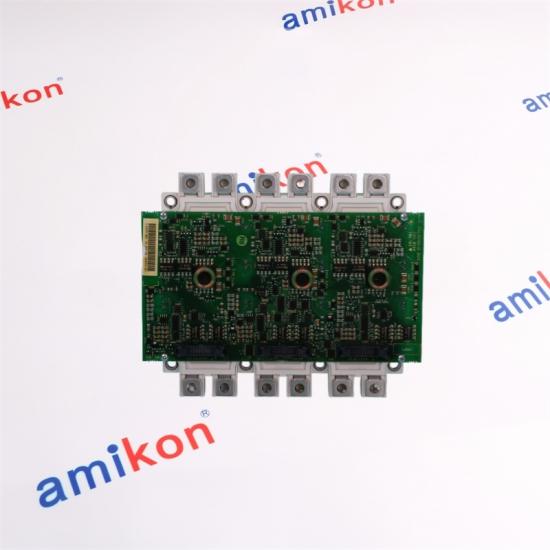

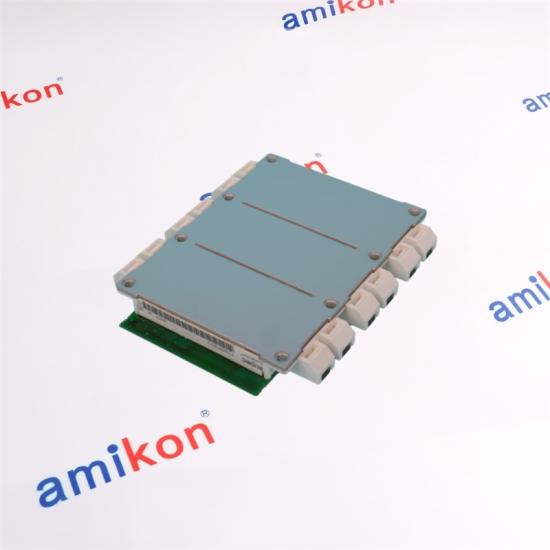

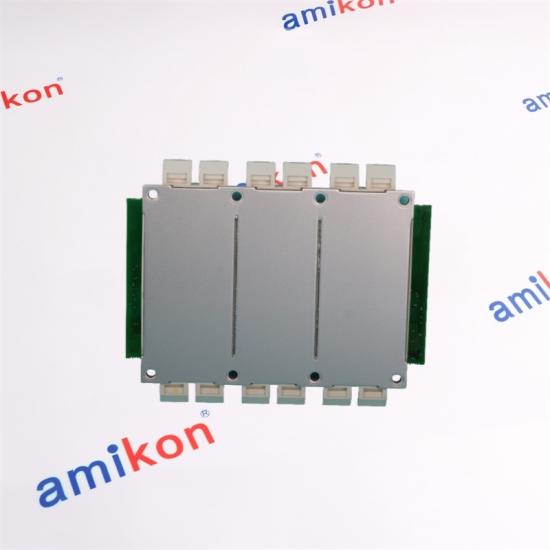

ABB FS300R12KE3/AGDR-72C Drive Board
|
Contact info |
|
|
Sales manager: |
Miya Zheng |
|
Mobile: |
|
|
Email: |
|
|
Whatsapp: |
|
descriptions |
|
VCES: 1 200 V (IGBT blocking) |
|
IC cont: 300 A @ 25 °C |
|
Ptot: 1 250 W per IGBT |
|
VCE(sat): 1.75 V typ. @ 300 A, 25 °C |
|
Switching energy: Eon 14 mJ, Eoff 18 mJ (600 V / 300 A) |
|
Package: 62 mm “half-bridge” 2-pack, Al2O3 substrate |
|
Rth(j-c) IGBT: 0.065 K/W |
|
Rth(j-c) diode: 0.10 K/W |
|
TJ max: 150 °C, storage –40 … +125 °C |
|
Summary |
|
The ABB FS300R12KE3/AGDR-72C is a 1 200 V / 300 A 62 mm half-bridge IGBT module that plugs straight into ACS800 and general-purpose inverters up to 110 kW. Field-stop + trench-gate chips give 1.75 V saturation and only 32 mJ total switching loss, so you can run 2–4 kHz switch-ing without oversized heatsinks. The integrated NTC and standard 62 mm footprint let designers swap, parallel or service units in minutes, cutting cabinet downtime and spare-part stock. |
|
