| General Information | |

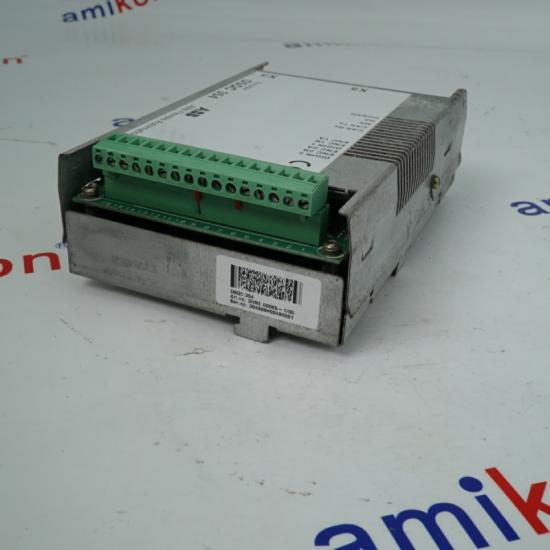

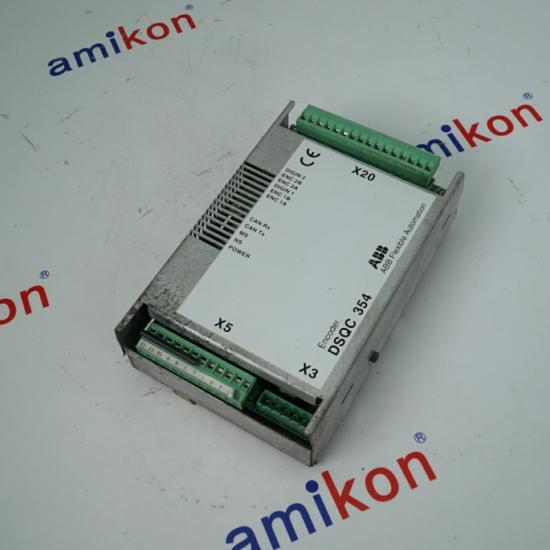

| Product ID: | ABB DSQC354 |
| Communication Interface： | Profibus-DP |
| Mounting Type： | Rack-mounted |
| Ordering | |
| Power Requirements： | Operates on a 24 VDC supply with a power consumption of 5 W |
| weight： | 0.54kg |
| Product Net Depth / Length: |
170mm |
| Product Net Height: |
55mm |
| Product Net Width: |
115mm |
| 1. Purpose and Functionality: | |
| Signal Processing： | It processes digital signals from external devices and communicates the data to the central control system for real-time processing. |
| Feedback to Controller: | The module sends feedback about the status of inputs and outputs to the central controller, enabling remote monitoring and control of connected devices. |
| Data Transfer: | The module communicates over a dedicated bus with the ABB S4 controller, ensuring reliable data transfer. |
| 2. Key Attributes: | |
| Ambient Temperature Range： | -20°C to 70°C |
| Environmental Durability： | features an IP67 protection class |
