SPECIFICATION |
|
| Product Number | DSQC223 YB560103-BD |
| Type |
Robotics Digital I/O Module |
| Gross Weight | 0.28 kg |
| Customs Tariff Number | 85176200 |
| Load | 750 Ω max. |
Choosing us is the best decision
Welcome to contact Miya!
86-18020776792 86-18020776792 sales@amikon.cn
|
Features |
|
| Medium Voltage Operation |
Supports medium voltage systems (up to 6.6 kV), making it suitable for controlling large motors in industries requiring high power and reliability, such as mining, oil & gas, and power generation. |
| Digital I/O Channels |
The module provides 16 input channels and 16 output channels, featuring opto-isolation, making it suitable for connecting various sensors and actuators in industrial applications. |
| Interface Protocols |
It supports communication protocols such as DeviceNet and ProfiBus, ensuring compatibility with ABB IRC5, IRC5 Compact, and YuMi controllers. |
| Adjustable Input/Output Delay |
The module allows adjustable input/output delay from 0 to 250 milliseconds, enabling customization to meet specific application requirements. |

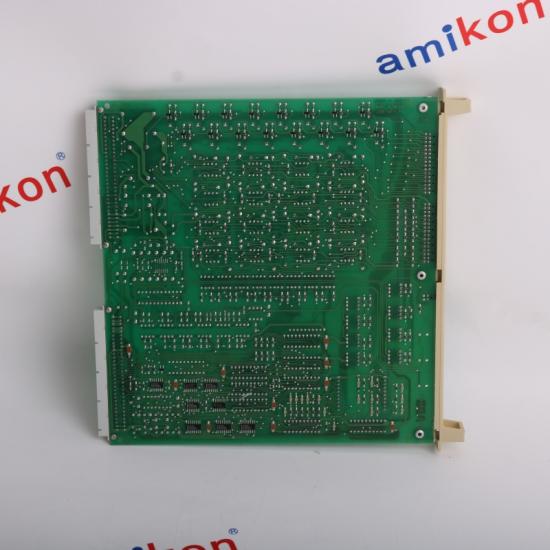

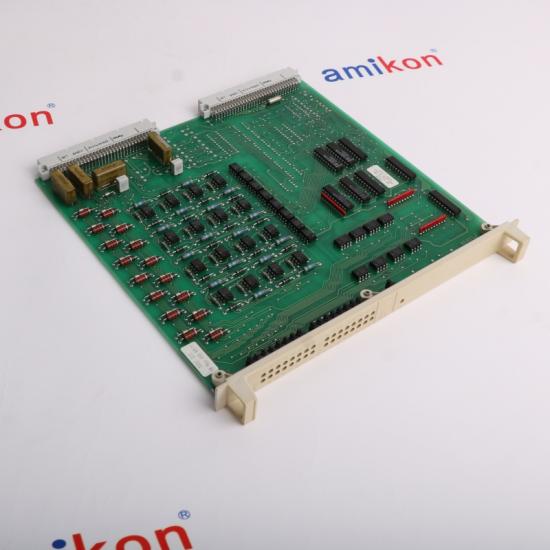

The ABB DSQC223 YB560103-BD is a high-performance digital input/output (I/O) interface module designed for use in ABB’s industrial automation systems. It features 16 input and 16 output channels, all with opto-isolation, making it ideal for connecting a wide range of sensors and actuators. The module supports multiple communication protocols such as DeviceNet and ProfiBus, ensuring compatibility with various ABB controllers like IRC5, IRC5 Compact, and YuMi robots.
The ABB DSQC223 YB560103-BD offers adjustable input and output delays from 0 to 250 milliseconds, which allows it to be customized for specific application requirements. It also includes built-in remote monitoring and diagnostic functions that provide real-time updates of system status and performance, helping reduce downtime and improve system reliability.
