| General Information | |
| Product ID: | 57360001-HX |
| ABB Type Designation: | DSMB 176 |

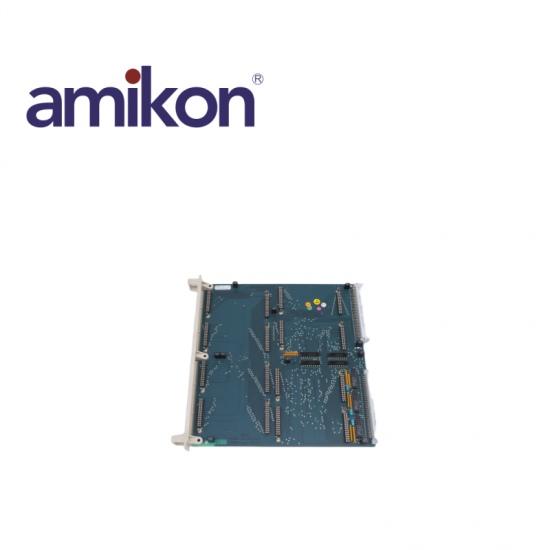

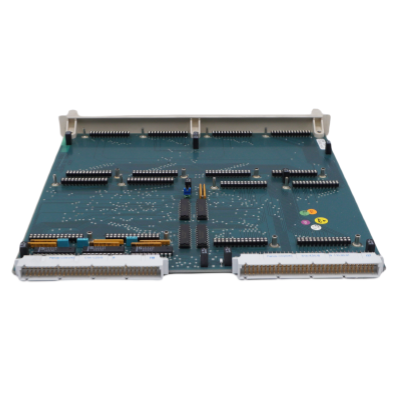

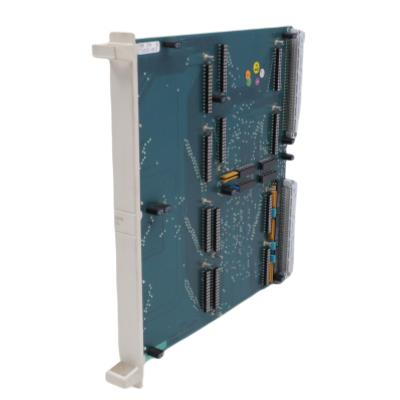

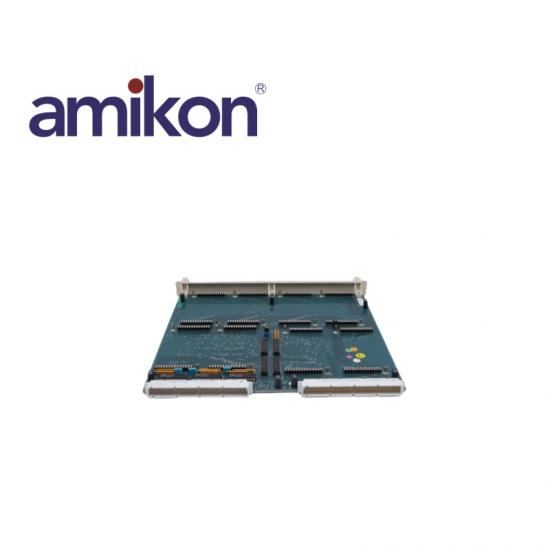

| Catalog Description: | DSMB 176 Expansion Board for PROM module |
| Long Description: |
DSMB 176 Expansion Board intended for PROM-modules DSMB 172 (128 kB each) Note! This part is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f) and (j) therein (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY '- ABB Advant Master Process Control System) |
Product Details
| Additional Information | |
| Medium Description: | Expansion Board for PROM module |
| Product Type: | Control_System_Accessory |
| Technical Information: | DSMB 176 Expansion Board intended for PROM-modules DSMB 172 (128 kB each) |
| Ordering | |
| HS Code: | 853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other |
| Customs Tariff Number: | 85389091 |
| Dimensions | |
| Product Net Depth / Length: | 360 mm |
| Product Net Height: | 10 mm |
| Product Net Width: | 260 mm |
| Product Net Weight: | 0.34 kg |
| Environmental | |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries: |
0 |
 |
 |
If you want to more details，please contact me without hesitate. Email：sales@amikon.cn
