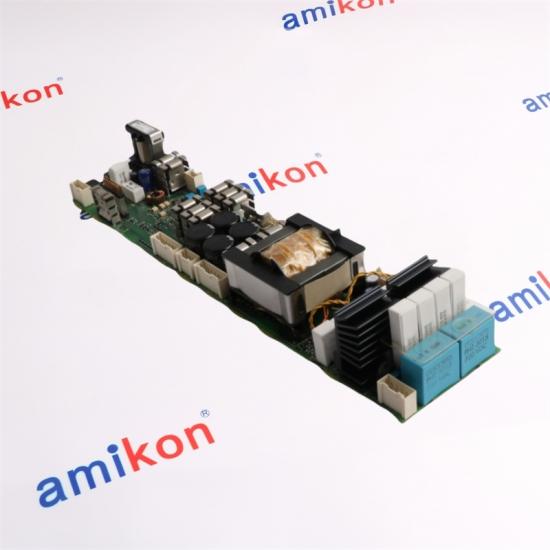

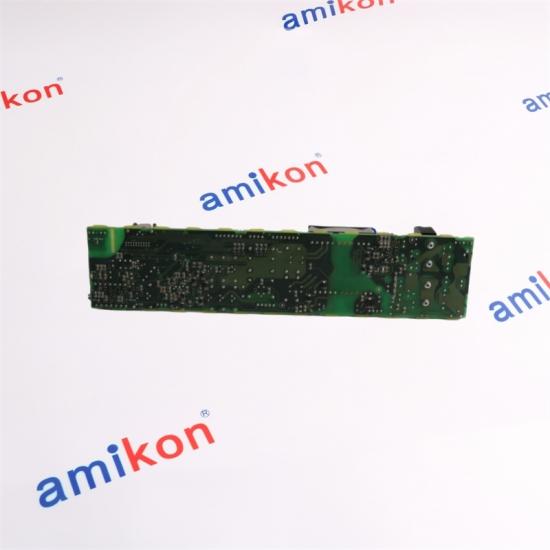

ABB DSMB-01C
|
Parameter |
Value |
|
Module Type |
Digital motor-management & measurement unit (basic module) |
|
Model Number |
DSMB-01C |
|
Compatibility |
ABB MNS³.0 motor-control drawers; Profibus-DP-V0 PLC/DCS systems |
|
Power Supply |
24 VDC (18…30 VDC), ≤ 4 W draw; 1500 VDC isolation |
|
Operating Temperature |
–25 °C … +70 °C (–13 °F … +158 °F), 5…95 % RH non-condensing |
|
Weight |
0.30 kg (0.66 lb) |
|
Number of Outputs |
8 digital status outputs (relay, 250 VAC / 2 A) + Profibus-DP port |
Summary
ABB’s DSMB-01C slides straight into an MNS³.0 drawer to turn an ordinary contactor starter into a smart, network-ready motor control centre. It measures true RMS current, voltage, power, kWh and running hours through external CTs/VTs and offers motor-class protection: thermal-overload (I²t), stall, phase-loss, unbalance and earth-fault—all without an external relay. Eight built-in relay outputs can signal “ready / tripped / alarm” or trip the breaker directly, cutting panel wiring by >30 %. Profibus-DP puts every amp, volt and event on the PLC bus, so plants can trend energy, schedule predictive maintenance and prove compliance without extra meters. Hot-swappable while the drawer is isolated, and rated –25 °C … +70 °C, the DSMB-01C is a favourite upgrade for refineries, food plants and data-centre chillers that need IEC 60947 motor protection plus digital transparency in one 0.3 kg package.
