| General Information | |
| Product ID: | ABB DO820 3BSE008514R1 |
| Product Type： | Digital Output Relay Module |
| Module Type： | Output, relay-controlled |
| Ordering | |
| Power Supply: | 24V DC |
| weight： | 0.22kg |
| Product Net Depth / Length: |
45mm |
| Product Net Height: |
105mm |
| Product Net Width: |
120mm |

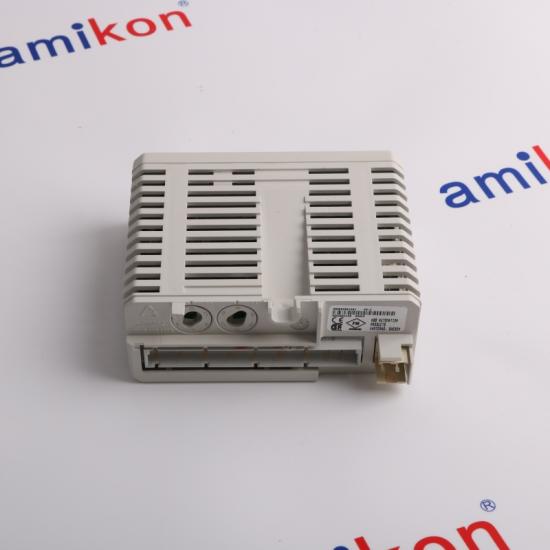

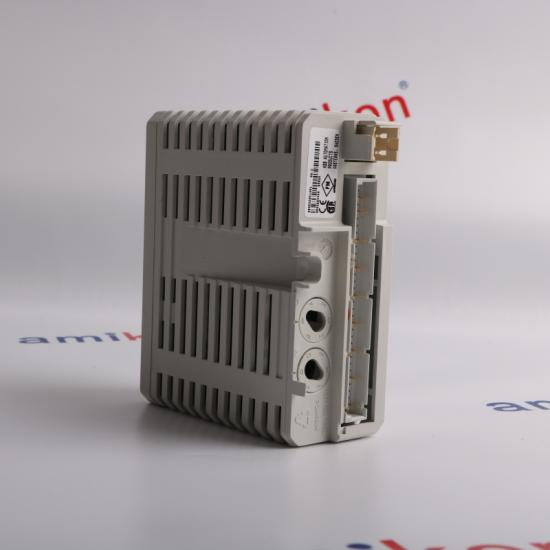

The ABB DO820 3BSE008514R1 Digital Output Relay Module serves several essential functions in industrial automation systems, particularly in controlling and managing output signals for various devices. Its primary function is to provide digital relay outputs to control a variety of field devices such as motors, lights, actuators, and solenoids. The module offers 8 relay-controlled outputs, each capable of handling significant loads up to 250V AC / 30V DC with a 2A current capacity per output, making it suitable for a wide range of applications where robust and reliable control is required.
The ABB DO820 3BSE008514R1 Digital Output Relay Module is designed with several key attributes that make it a highly reliable and efficient component in industrial automation systems. One of the primary attributes is its 8 digital relay outputs, which are capable of handling a wide range of field devices such as motors, actuators, and other equipment. Each output can handle a maximum load of 250V AC and 30V DC, with a current capacity of up to 2A per output, providing robust control for high-power applications.
