SPECIFICATION |
|
| Product Number | CP-A RU 1SVR427071R0000 |
| Type |
Redundancy Unit |
| Rated output voltage U | 24 V DC |
| Voltage drop | typ. 0.6 V, max. 0.9 V |
| Dimensions (W x H x D) | 56.5 (60 1)) x 130 x 137 mm (2.22 (2.36 1)) x 5.12 x 5.39 in) |
Choosing us is the best decision
Welcome to contact Miya！
86-18020776792 86-18020776792 sales@amikon.cn
|
Features |
|
| Dual Inputs for Redundancy |
It supports two independent power supply inputs, each with a current capacity of up to 20 A. This configuration allows for true redundancy, ensuring continuous power availability even if one input fails. |
| Parallel Power Supply Decoupling |
The system is designed for 100% decoupling of two parallel-connected power supplies, effectively preventing any cross-interference between the power supplies. This enhances system reliability by ensuring that failure in one power supply doesn’t affect the other. |
| Integrated Diodes for Decoupling |
The unit includes two integrated diodes for the decoupling of the two switch-mode power supplies. These diodes are rated to handle up to 20 A per supply, ensuring safe and efficient separation of power sources. |
| CP-A CM Control Module |
The CP-A CM control module (sold as an accessory) is used to monitor both inputs for undervoltage. If undervoltage is detected at one of the inputs, the CP-A CM activates one of its two relay outputs to de-energize the corresponding input, preventing potential damage or operational issues. |

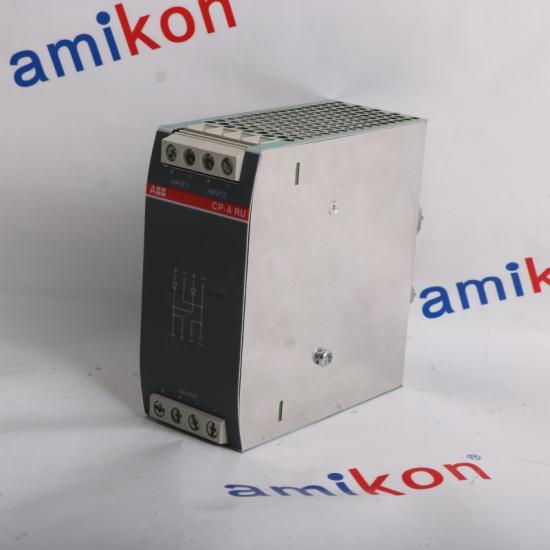

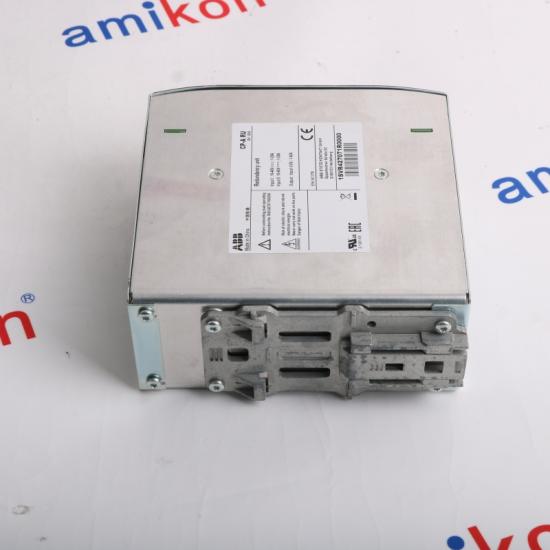

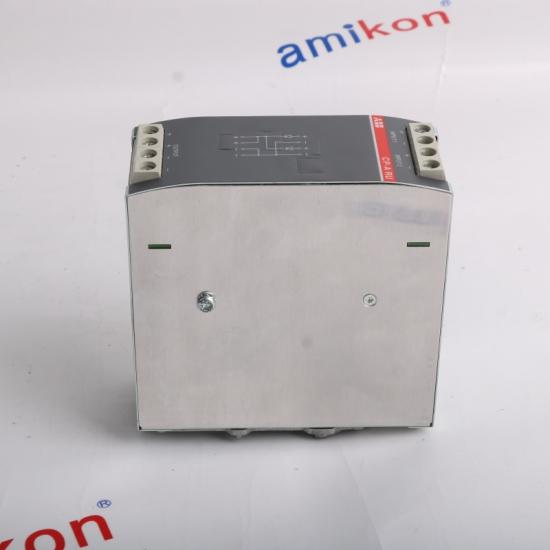

The CP-A RU 1SVR427071R0000 is an industrial power supply unit designed for use in automation systems where high reliability and redundancy are essential. It features two independent input channels, each capable of handling up to 20 A, allowing for redundancy and load sharing between the two supplies. The unit provides an output capacity of up to 40 A, ensuring stable power delivery to various industrial devices such as control systems, PLCs, sensors, and actuators. The CP-A RU unit supports 100% redundancy by decoupling two parallel-connected power supplies, preventing the failure of one power supply from affecting the overall system.
