FAQ about CM30/100S0E0/STD
| 1.What is the size and form factor of the CM30 controller? |
|
The CM30 is a 1/4 DIN-sized controller with dimensions of 97 mm (width) x 97 mm (height) x 141 mm (depth), making it suitable for panel mounting in various control systems. |
| 2.What type of display does the CM30 feature? |
|

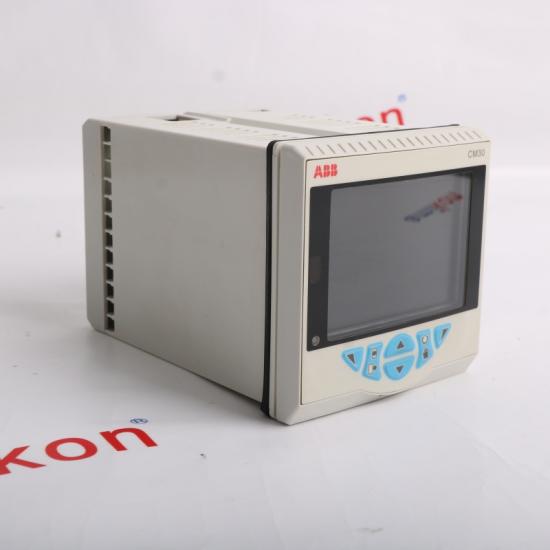

It is equipped with a full-color TFT display that presents detailed process information clearly, enhancing user interaction and simplifying configuration and operation. |
| 3.What are the key functionalities of the CM30 controller? |
|
The CM30 offers versatile PID control capabilities, with hardware and software scalability to meet various process control requirements. |
| 4.What communication protocols are supported by the CM30? |
|
The CM30 supports Modbus® communication protocols, facilitating easy integration into various control systems and networks. |

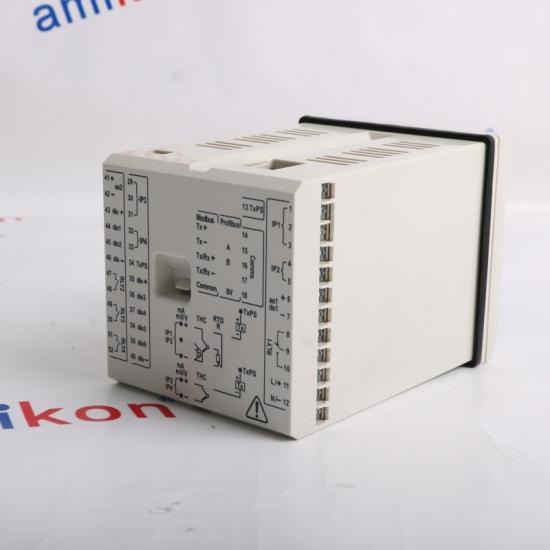

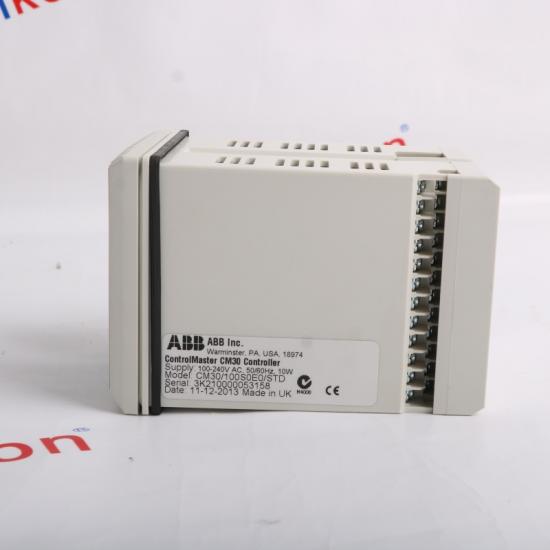

The ABB ControlMaster CM30 (model CM30/100S0E0/STD) is a versatile and reliable process controller designed for a wide range of industrial applications. It features a 1/4 DIN form factor, making it ideal for compact installations in control panels. The controller is equipped with a full-color TFT display that allows for easy monitoring and configuration of the process parameters.
The CM30 controller provides flexible PID control capabilities, offering precise regulation of temperature, pressure, flow, or other process variables. It is capable of handling a variety of input and output configurations, supporting one analog input and one analog output as standard. Additional option boards can be installed to increase the number of inputs and outputs, providing scalability for more complex applications.
