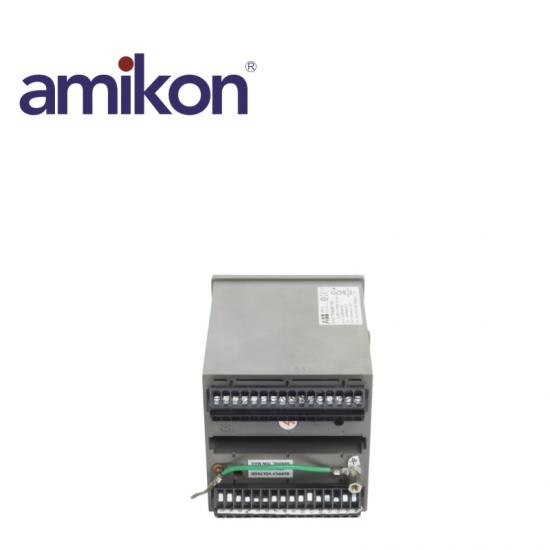

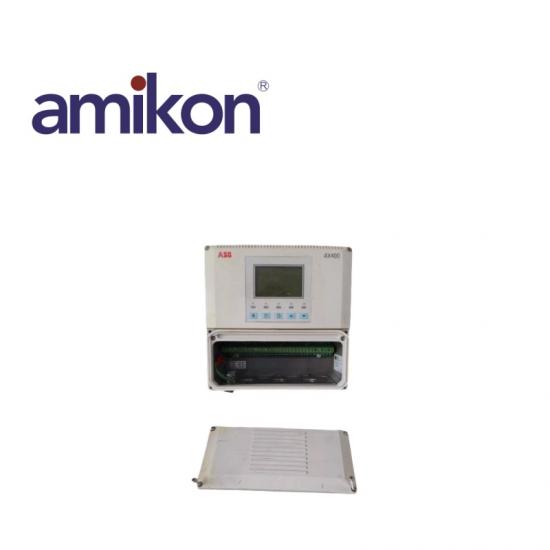

ABB AX460 Control Module

ABB AX460
ABB AX460
ABB AX460

ABB AX460 Control Module

Calculate shipping
Quotation Request
⇒ Model Number AX460
⇒ Country of Origin:  Sweden
⇒ Description: Control Module
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS
⇒ Weight

2.48KG




Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520



ABB AX460 Product Specifications

SPECIFICATION  Image
pH/Redox (ORP)

Inputs

1 or 2* pH or mV inputs (*AX466 only) and solution earth

1 or 2* temperature sensors (*AX466 only)

Permits connection to glass or enamel pH and reference

sensors and Redox (ORP) sensors

Input resistance

Glass >1 x 1013Ω

ReferenMinimum spance 1 x 1013Ω

Range

–2 to 16pH or –1200 to +1200mV

Minimum span

Any 2pH span or 100mV

Resolution

0.01pH

Accuracy

0.01pH

Temperature compensation modes

Automatic or manual Nernstian compensation

Range –10 to 150°C (14 to 302°F)

Process solution compensation with configurable coefficient

Range 0 to 100°C (32 to 212°F)

Temperature sensor

Programmable Pt100, Pt1000 & Balco 3KΩ

Control Function – AX460 Only

Controller Type

P, PI, PID (Configurable)
Control Outputs

Analog

Current output control (0 to 100%)

Time proportioning cycle time

5 to 60s, programmable in 1s steps displayed with doP or roP

Pulse frequency

1 to 120 pulses per minute

Controller action

Reverse, direct or bi-directional (programmable)

Proportional band

0.1 to 1000%, programmable in 0.1% increments

Integral action time (Reset)

1 to 7200s in 1s steps, 0 = Off

Derivative

0.1 to 1000s in 0.1s increments

Auto/Manual

User-programmable

If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Freequently Asked Questions

  • What is the ABB AX460?

    • The ABB AX460 is a powerful control module designed for industrial automation applications, providing robust processing capabilities and connectivity options.

  • What type of processor does the AX460 use?

    • It uses a PowerPC 750 processor with a speed of 400 MHz.

  • What is the memory capacity of the AX460?

    • The AX460 has 128 MB of RAM and 64 MB of Flash memory for data storage.

  • What is the input voltage for the AX460?

    • The AX460 operates at an input voltage of 24 V DC with a maximum power consumption of 10 W.

  • What is the operating temperature range for the AX460?

    • The controller operates effectively within a temperature range of 0°C to 60°C.
