ABB ROBOTICS • SPARE PART
3HAC043569-004

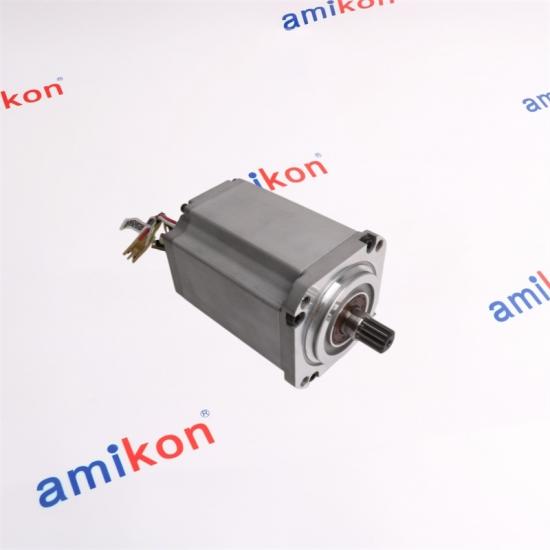

Motor with Pinion · Type C
ABB spare motor identified for Axis 3 Type C applications on the IRB 4600 robot platform. The ABB spare-parts information identifies this part for the listed IRB 4600 configurations.
|
03
ROBOT AXIS
SPARE PART NUMBER
3HAC043569-004
|
|
PART NUMBER
3HAC043569-004
|
PART TYPE
Motor with Pinion
|
ABB TYPE
Type C
|
| Manufacturer | ABB |
| Spare Part Number | 3HAC043569-004 |
| Motor Type | Type C |
| Robot Platform | ABB IRB 4600 |
| Applicable Axis | Axis 3 |
|
CONFIGURATION MATCH
Built around the correct Type C identification
ABB's IRB 4600 spare-parts information lists 3HAC043569-004 as the Type C motor for Axis 3 and marks it for the 60/2.05, 45/2.05, 40/2.55 and 20/2.55 robot configurations. |
LISTED CONFIGURATIONS
60/2.05 · 45/2.05
40/2.55 · 20/2.55
|
|
◈
Robot Motion
Intended for the Axis 3 Type C position within the ABB IRB 4600 robot spare-parts structure. |
◉
Replacement Planning
A useful identification point when an existing Axis 3 motor assembly requires replacement or when maintenance teams are matching an installed spare. |
◆
Configuration Control
Correct Type C identification is important because ABB distinguishes motor types in the IRB 4600 spare-parts structure. |
When maintenance personnel are troubleshooting a robot that cannot return Axis 3 to normal operation, the motor assembly becomes a critical replacement consideration. Matching the 3HAC043569-004 Type C designation to the robot configuration helps avoid an incorrect motor selection. An unavailable robot axis can prevent the programmed production cycle from completing and may extend machine downtime until the correct spare is installed.
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
|
