ABB Robotics · IRC5 Control Platform
3HAC041443-003

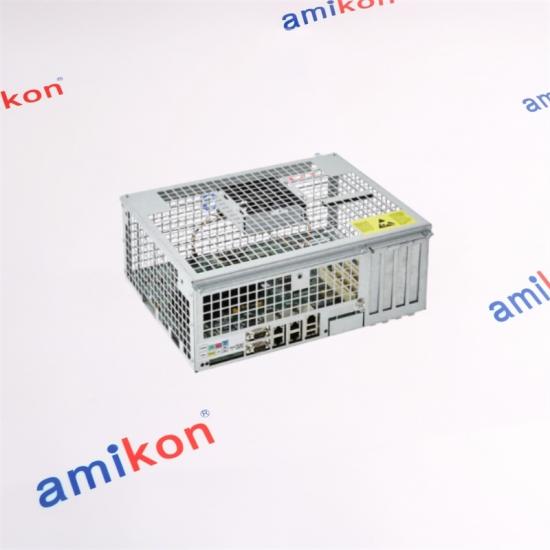

DSQC639 Computer Unit
A central computer unit used within the ABB IRC5 robot controller architecture, supporting controller computing functions and network communication through dedicated service and factory LAN connections.
IRC5 DSQC639 Controller Computer
|
PRODUCT IDENTIFIER
3HAC041443-003
ABB IRC5 Computer Unit
Industrial Robot Controller Platform
|
|
01 / PLATFORM
IRC5
Designed for the ABB IRC5 robot controller architecture.
|
02 / INTERFACE
Service + LAN
Provides dedicated service and factory-network connectivity.
|
03 / COMMUNICATION
Network Ready
Supports controller communication functions used by IRC5 systems.
|
|
Technical Focus
Built Around the IRC5 Computing Architecture
DSQC639 forms part of the IRC5 controller's computing architecture. ABB technical material describes the computer unit with separate service and LAN connections and identifies it as the platform used for controller communication functions. |
|
|
+
|
A controller computer is a critical part of the IRC5 control architecture.
Correct computer-unit selection is important when restoring an affected controller.
|
|
System Role
Where the Computer Unit Matters
The DSQC639 computer unit belongs to the IRC5 controller environment, where controller computing and communication functions are handled. In an operating robot cell, an abnormal computer unit can affect controller availability, network communication, service access and the ability to return the robot system to production. |
TROUBLESHOOTING CONTEXT
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
|
SHIPPING
Fast & Convenient
|
1–2 days / E-packing / FedEx / EMS / TNT / DHL / UPS
|
GLOBAL AUTOMATION TEAM
|
AUTOMATION PARTS
|
|
REQUEST A QUOTE
Tell Us What Your Robot System Needs
To help us respond accurately, please provide the following details with your inquiry:
|
PRIORITY CONTACT
Sales Manager
Miya Zheng
Fast Response for Automation Spare Parts
|
|
Q1
|
What role does the ABB 3HAC041443-003 play within an IRC5 controller?
The 3HAC041443-003 is associated with the DSQC639 computer unit, which forms part of the IRC5 controller computing architecture. It supports the controller's computing and communication functions.
|
|
Q2
|
Which network connections are associated with the DSQC639 computer unit?
ABB's IRC5 technical material describes two main connections on the computer unit: a Service Port for direct service access and a LAN Port used for connection to the factory network.
|
|
Q3
|
Can the service connection be treated as a normal factory LAN connection?
No. ABB describes the service port as a direct PC connection and distinguishes it from the LAN port used for the factory network. The two connections therefore have different intended roles.
|
|
Q4
|
How is DSQC639 involved when PROFINET is used with an IRC5 controller?
ABB describes PROFINET software as running on the IRC5 main computer, with the PROFINET network connected through an Ethernet connection. Depending on the configured option, the IRC5 can operate as a PROFINET master, slave, or both.
|
|
Q5
|
Why can a computer-unit fault become a production concern?
Because the computer unit participates in the controller's computing and communication architecture, a failure can affect controller availability and communication with the surrounding automation environment. For a production robot cell, this can extend recovery time if a suitable replacement is not available.
|
|
