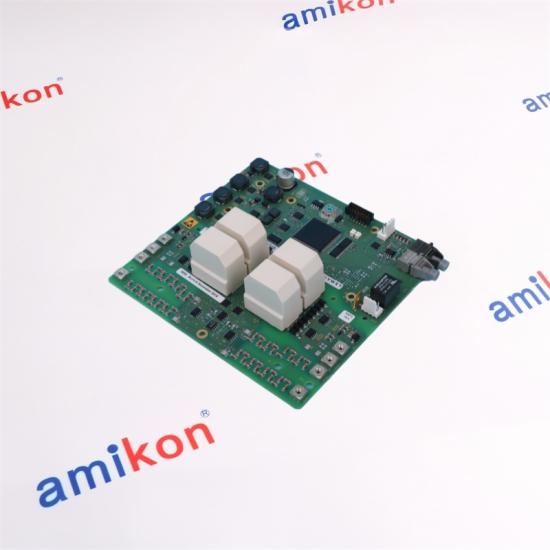

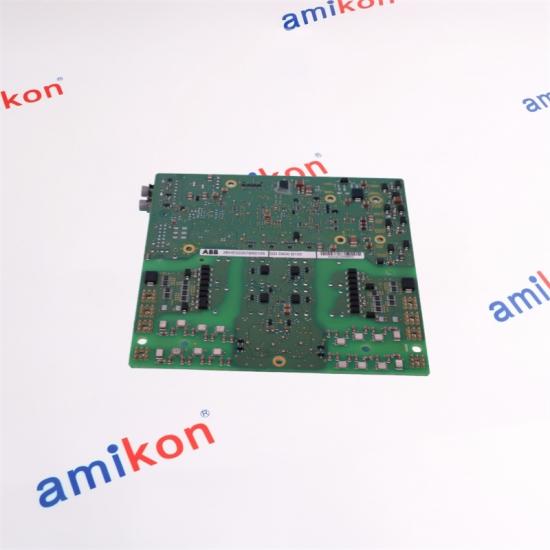

ABB 3BHE022678R0105 GDD830 B105 Gate Drive PCB Circuit Board

  Contact info

 Email: sales@amikon.cn

 WhatsApp: +86 18020776792

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

3BHE022678R0105 GDD830 B105 Feature

●Compatibility: Fits ABB ACS880, ACS580 and similar high-power drives; plugs straight onto the IGBT stack with factory ribbon cable—no adapter needed.

●Purpose: Drives and protects 1200 V / 450 A IGBTs in motor and converter legs up to 160 kW, giving safe turn-on/turn-off and real-time fault feedback.

●Design: Dual-channel gate drive on one 120 × 92 × 25 mm PCB; built-in 380–480 V AC power supply, 150 % overload for 1 min, -5 … +70 °C, IP20.

●Field-ready: LEDs show power and fault per leg; Profibus-DP socket for remote on/off and diagnostics; swap time <15 min with only two screws and one ribbon cable.

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

Summary

3BHE022678R0105 (also marked GDD830 B105) is ABB’s plug-in gate drive board that controls the big IGBTs inside 160 kW ACS880/ACS580 drives. It delivers the precise gate pulses, watches for shorts and over-temperature, and reports health over Profibus—so you get motor control, protection and remote status in one credit-card-sized board.

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
