◆ CURRENT OUTPUT CONTROL

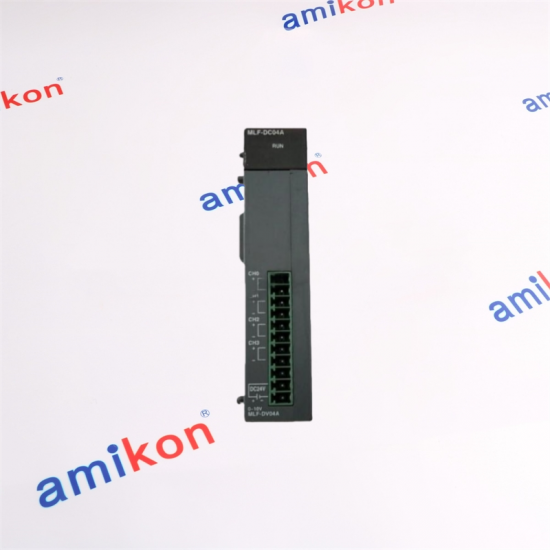

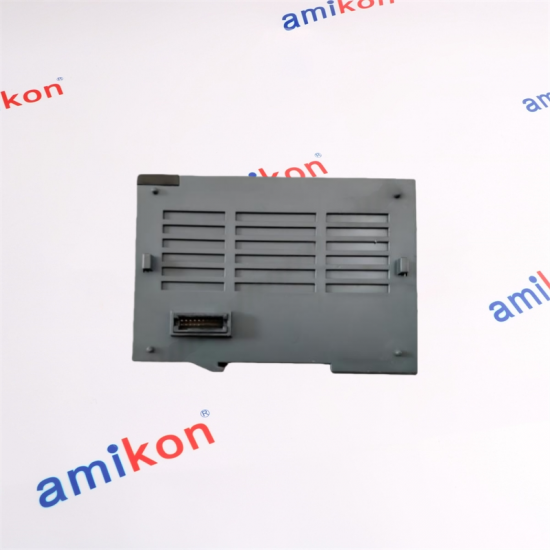

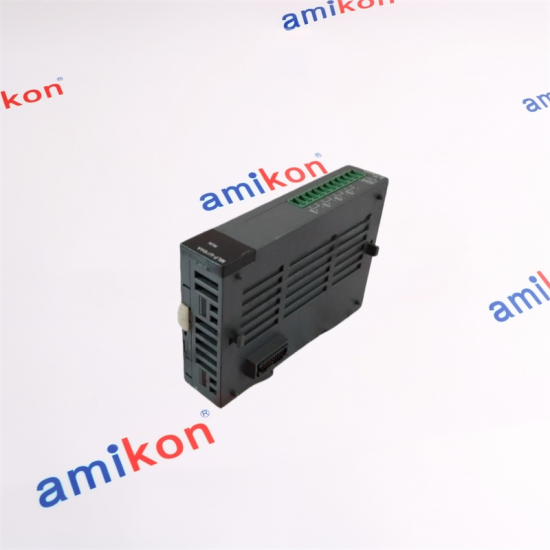

MLF-DC04A
Four Current Loops / One Coordinated Module
|
|||||
|
4
ANALOG OUTPUTS
|
Continuous current commands for valve positioners, converters and other industrial current-loop devices in MasterLogic systems.
|
1/4000
OUTPUT RESOLUTION
|
|||
| ◉ Sales manager: Miya zheng | ✉ Email: sales@amikon.cn | ☎ WhatsApp: 86-18020776792 |
| Output channels | 4 |
| Output type | Analog current |
| Typical ranges | 0-20 mA and 4-20 mA |
| Resolution | 1/4000 |
| Current increment | 5 microampere |
| Maximum conversion | 1 ms per channel |
| Accuracy | Within +/-0.5% |
| Connection | 11-point terminal block |
| Internal 5 V consumption | Approximately 110 mA |
| External 24 V consumption | Approximately 120 mA |
| MLF-AD04A 4 analog inputs. Advantage: reads voltage or current sensors. Use: for measurement. |
MLF-DV04A 4 voltage outputs. Advantage: 0-10 V command duty. Use: for voltage interfaces. |
MLF-DC04A 4 current outputs. Advantage: current loops tolerate voltage drop better. Use: for current-driven actuators. |
MLF-AH04A 2 inputs plus 2 outputs. Advantage: bidirectional analog mix. Use: for compact mixed stations. |
|
01 / Responsive Team
|
02 / Product Check
|
03 / Worldwide Dispatch
|
| Sales manager: Miya zheng | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| 01 | Can MLF-DC04A drive a voltage-only actuator? | Not directly. Select a voltage-output module or use an approved current-to-voltage interface. |
| 02 | What determines whether a 4-20 mA loop reaches full scale? | The module compliance, receiver resistance, cable resistance and any series devices must remain within the permitted loop burden. |
| 03 | Should unused MLF-DC04A channels be left active in the program? | No. Configure unused channels deliberately and prevent unintended commands during startup or maintenance. |
| 04 | When is MLF-DV04A the better choice? | Use the voltage-output module when the receiving equipment expects 0-10 V and the wiring distance and noise environment are suitable. |
| 05 | What should be tested during commissioning? | Verify zero and full-scale current, channel mapping, actuator direction, fail-state behavior and isolation from unintended grounds. |
|
Confirm the exact configuration before purchase
Send the complete part number, wiring requirement and quantity.
|
