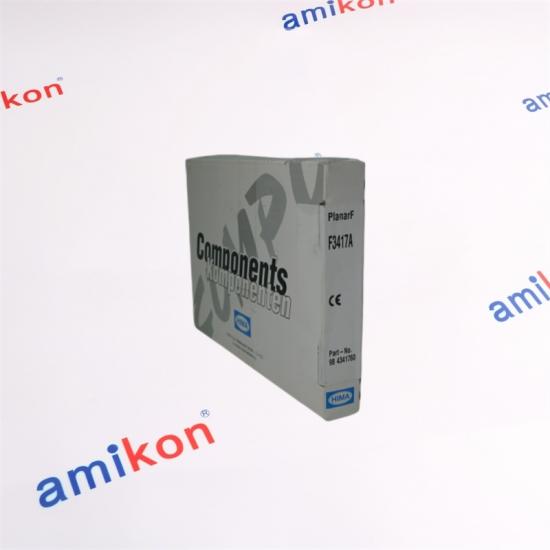

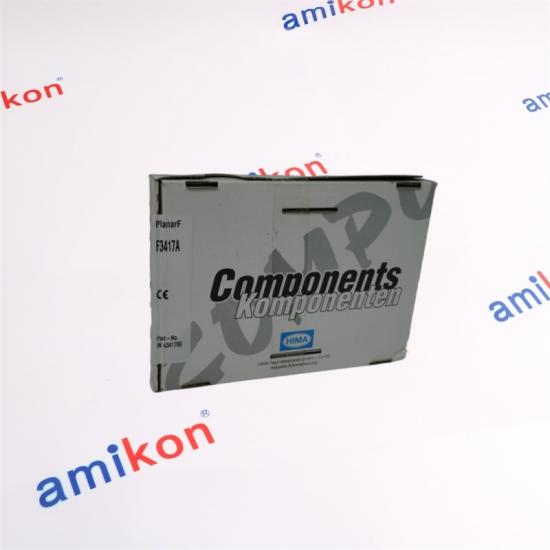

BRAND |
HIMA |
|
Model Number |
F3417A |
|
Origin |
Germany |
|
Weight |
0.24kg |
|
Dimension |
19.8x14.2x2.5cm |
|
Nominal Supply voltage |
24 V DС |
|
Structural shape |
European standard size pcb |
Specifications
|
Item |
Information |
|
Model |
HIMA F3417A |
|
Series |
HIMA Planar System F |
|
Product Category |
Safety-Related Amplifier |
|
Input Signal |
1-Signal (Digital Input) |
|
Requirement Class |
3/4 |
|
Output Type |
Contact Output (Relay Contact) |
|
Power Output |
Not specified in the catalogue |
|
1-Signal Output |
Not specified in the catalogue |
HIMA Planar System F Safety-Related Amplifiers
Safety-Related Amplifiers are designed for use in safety-critical control systems, where reliable signal processing and fail-safe operation are essential. These modules convert and amplify field input signals while ensuring that the system maintains a predefined safe state in the event of a fault. They are suitable for applications requiring high functional safety, such as emergency shutdown (ESD), burner management systems (BMS), and process safety instrumentation.
The safety-related modules in the Planar System F generally comply with Requirement Class 6 according to DIN V 19250, unless otherwise specified in the corresponding data sheet. They are identified by a yellow module label and a dedicated safety symbol in the catalogue. Their power output stages are galvanically isolated and regulate the output voltage to the nominal value across a 0–100% load range, making them suitable for driving solenoid valves with strict voltage tolerance requirements. TÜV safety certification is available for applicable modules used in safety-related control systems.
· Designed for functional safety applications in industrial automation.
· Process single digital signals, floating contacts, or proximity switch inputs, depending on the model.
· Available with relay contact outputs, power outputs, or intrinsically safe interfaces.
· Support Requirement Classes 3/4, 5/6, and 6, depending on the module type.
· Selected models provide line monitoring for improved fault detection.
· Intrinsically safe versions are certified for hazardous-area applications.
· TÜV-certified safety-related modules are available for high-integrity process control systems.
Modules of the HIMA Planar System F
Basis of the modules are printed circuit boards according to DIN IEC 326 (160 ´ 100 mm), made from glassfibre reinforced epoxy resin. In order to protect them against aggressive atmosphere the tracks are tin-plated or coated with a solder resist lacquer.

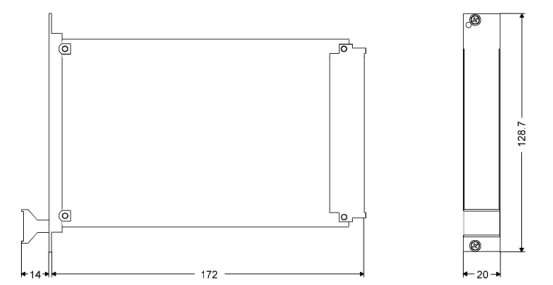

Side and front view of a module with 4 SU
HIMA F3417A FAQ
|
1 |
What distinguishes the HIMA F3417A as a safety-related amplifier within the Planar System F portfolio? |
|
2 |
Why is the HIMA F3417A configured with a contact output instead of a power output? |
|
3 |
Which industrial safety applications can benefit most from the HIMA F3417A? |
|
4 |
How does the HIMA F3417A integrate with the HIMA Planar System F architecture? |
|
5 |
What technical characteristics should engineers evaluate before selecting the HIMA F3417A for a safety system? |
