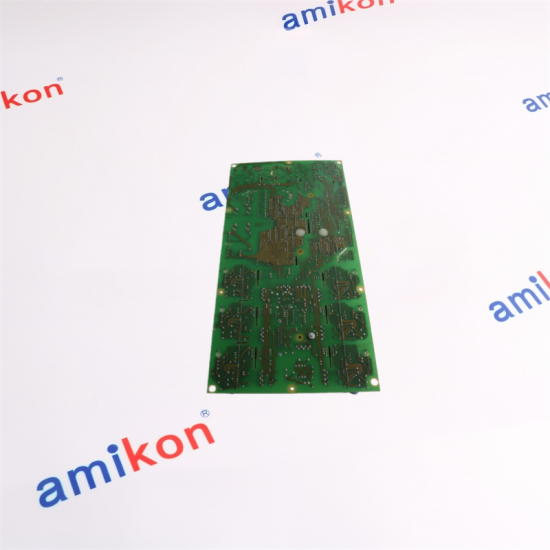

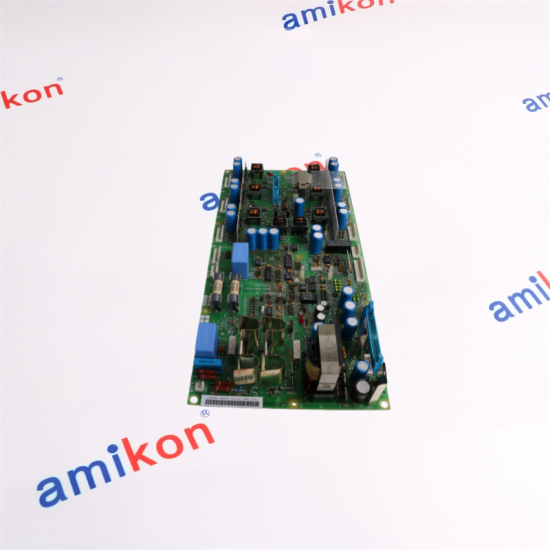

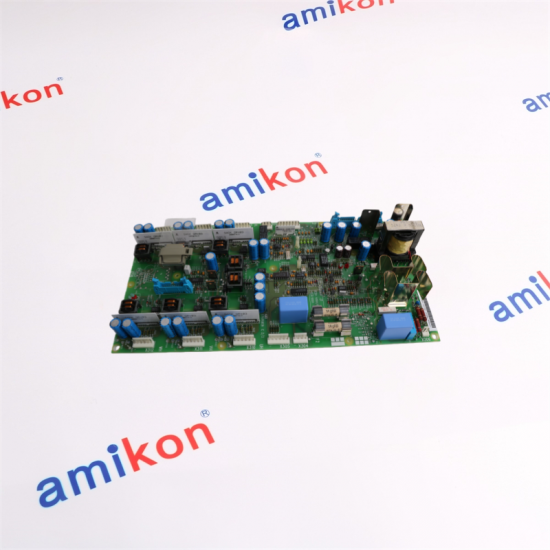

ABB SNAT7600 Control Board

ABB SNAT7600 Control Board

ABB · SAMI GS CONTROL UNIT
SNAT7600
CONTROL INTERFACE CARD
DISPLAY · KEYPAD · CONTROL I/O
CARD FUNCTION / 01
Display & Keypad
Operator interface on the control card
›
CARD FUNCTION / 02
X50 Control Wiring
Terminal block for external control signals
›
CARD FUNCTION / 03
X51 RS-485
Serial link and analog input jumpers
ANALOG INPUT SELECTION S1 / S2 jumpers · Current: 0(4)–20 mA · Voltage: 0(2)–10 V
SALES MANAGER
Miya Zheng
✉ EMAIL US
sales@amikon.cn
☎ WHATSAPP
86-18020776792
AMIKON contact QR code
ABB   /   SAMI GS DRIVE CONTROL
SNAT7600
Control Interface Card
PLATFORM
ACS 502–506
SAMI GS Series
LOCAL OPERATOR INTERFACE EXTERNAL CONTROL CONNECTION RS-485 SERIAL LINK
Product Description
The ABB SNAT7600 is the control interface card used in the SAMI GS ACS 502–506 frequency converter family. It combines the operator display and keypad with the X50 control terminal block and X51 RS-485 connection. The interface supports local operation, external reference and command wiring, drive status signaling and serial communication with compatible control equipment.
CARD FUNCTION
Control & Interface
Operator access / signal terminals / serial communication
Key Technical Characteristics
01 / X50 TERMINALS
29 terminals
Analog and digital signals, auxiliary supply and relay outputs
02 / X51 CONNECTION
RS-485
Remote panel and serial bus connection
03 / LOCAL INTERFACE
Display + Keypad
Drive operation, parameter access and monitoring
The SAMI GS documentation describes the SNAT7600/7640 control-interface terminal functions together. Confirm the exact card designation and revision on the installed unit when matching a replacement.
Signal Handling & Control Functions
Signal Group Typical Function Application in the Drive
Analog input Voltage / current reference External speed or frequency reference, according to configuration
Digital input Start/stop and direction Command handling and selected operating functions
Analog output Frequency / current feedback External meters or monitoring equipment
Relay output Ready / run / fault Drive state indication and external status circuits
Serial link RS-485 communication Remote operation, parameter setting and monitoring
Integration in a SAMI GS Installation
The card is installed within the drive control unit. The keypad provides local operator access, while X50 is used for external control wiring. X51 provides the RS-485 connection for a remote panel or serial communication. In a multi-drive bus arrangement, each unit must have a unique identification number, and the final unit must be terminated correctly where required.
LOCAL
Keypad
CONTROL
X50
SERIAL
X51 / RS-485
STATUS
Drive Feedback
Replacement & Commissioning Considerations
Before ordering Compare the card label, revision, SAMI GS drive type and connector layout with the installed unit.
Before removal Record all X50/X51 conductors, parameter assignments and jumper positions. Keep a copy of the drive's existing configuration.
During wiring Use screened control cables, separate signal cables from power and motor cables, and follow the specified grounding arrangement.
After installation Check local keypad operation, analog reference response, digital command behavior, relay status and RS-485 communication.
Frequently Asked Questions
Q1. Is SNAT7600 the same card as SNAT7640?
A1. The SAMI GS manual groups SNAT7600 and SNAT7640 under the same control-interface terminal description. However, the installed card designation and revision should still be checked before treating two part numbers as interchangeable.
Q2. Which drive details are needed to verify SNAT7600 compatibility?
A2. Provide the complete ACS drive type, serial or nameplate details where available, the current card label and revision, and clear photographs of the card connectors and terminal wiring.
Q3. Can the card provide both local and external drive control?
A3. The SAMI GS platform supports keypad control and external control through X50 or the RS-485 serial connection at X51. The active control place and signal interpretation depend on the drive's parameter configuration.
Q4. What can cause unstable communication on the X51 RS-485 link?
A4. Incorrect A/B wiring, duplicate unit IDs, unsuitable cable screening, poor termination or an incorrectly selected bit rate can interrupt communication. Check the complete bus arrangement rather than replacing the card immediately.
Q5. Why should the old card's jumpers and parameter settings be recorded?
A5. Jumper positions and parameters can determine analog input behavior and signal assignments. Recording them before replacement helps reproduce the existing control scheme and reduces commissioning errors.
