| Product module | ER5*B |
| Brands | YOKOGAWA |
| Payment | Paypal/TT |
| Condition | 100%New |
| Production year | 2024 |
| Contry origin | Japan |

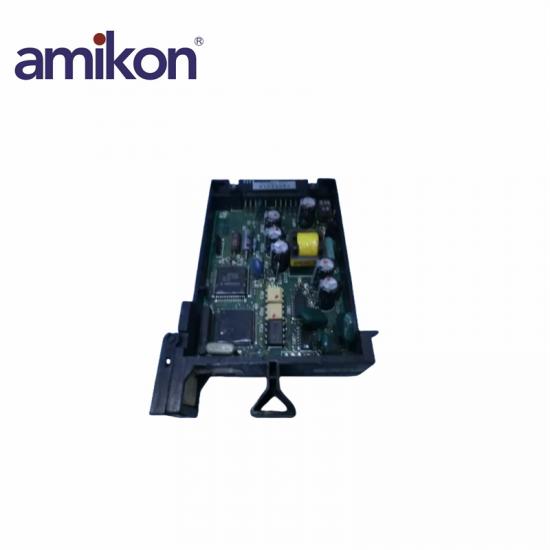

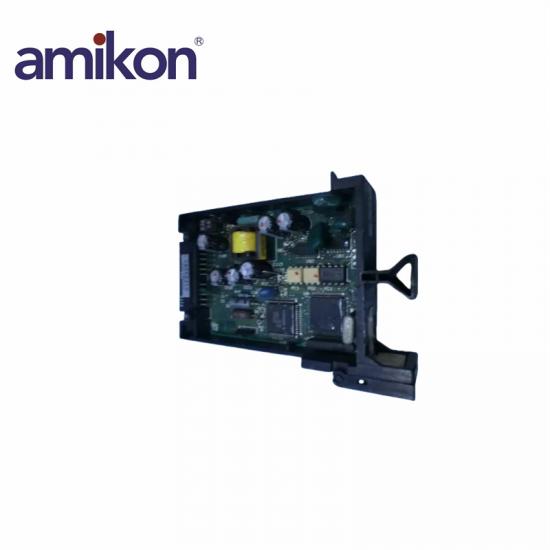

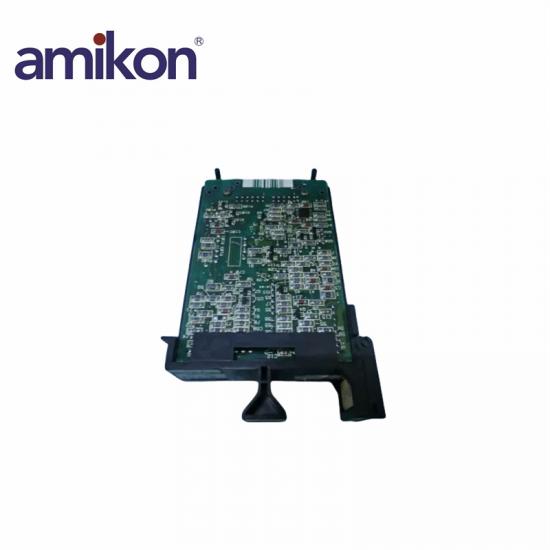

YOKOGAWA ER5*B RTD Input Module
Module Description
| Part number：ER5*B |
|
Measuring range change :Can be changed by BRAIN terminal |
|
100% frequency :0.1 Hz to 10 kHz |
|
External input resistance:Max. 150 Ω/wire |
|
Output signal :1 to 5 V DC, 2 outputs (output resistance: 1 Ω max., load resistance: 2 kΩ min.) |
|
External dimensions :73 (Width)x24 (Height)x115 (Depth) mm (including knob) |
|
Weight :0.10 kg or less |
|
Power voltage :24 V DC ±10 % |
|
Max. current consumption (24 V DC) :60 mA |
Funcrional Description
The ER5*B RTD Input Module is designed to measure the resistance of temperature sensors, specifically
Resistance Temperature Detectors (RTDs), which are widely used in industrial applications for temperature
monitoring. This module provides precise and reliable temperature measurements by converting the RTD’s
resistance into a corresponding temperature value. It is suitable for a wide range of industrial
processes where accurate temperature control is essential.
With a high degree of accuracy, the ER5*Bmodule supports multiple RTD types, offering flexibility in choosing
sensors based on specific application needs. It features built-in diagnostic capabilities to ensure proper
functionality and to detect any faults in the system, contributing to the reliability of the overall control system.
The ER5*B module is designed to operate in challenging environments, providing
robust performance even in harsh conditions.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About ER5*B
| What is the primary function of the ER5*B RTD Input Module? |
| The ER5*B RTD Input Module is designed to measure the resistance of Resistance Temperature Detectors (RTDs) and convert this resistance into a corresponding temperature value for accurate temperature monitoring in industrial applications. |
| What types of RTDs are compatible with the ER5*B module? |
| The ER5*B RTD Input Module supports a wide range of RTD types, including standard configurations such as PT100, PT500, and PT1000, allowing for flexibility in choosing the right sensor for specific applications. |
| What are the diagnostic features of the ER5*B module? |
|
The ER5*B RTD Input Module includes built-in diagnostic functions to monitor the health of the module and the connected RTD sensors. It can detect faults such as open or shorted sensors, ensuring reliable performance and early detection of any issues. |
| Is the ER5*B module suitable for use in harsh industrial environments? |
| Yes, the ER5*B module is designed for use in demanding industrial environments. It is built to withstand harsh conditions, including temperature extremes and electrical noise, providing reliable performance even in challenging conditions. |
