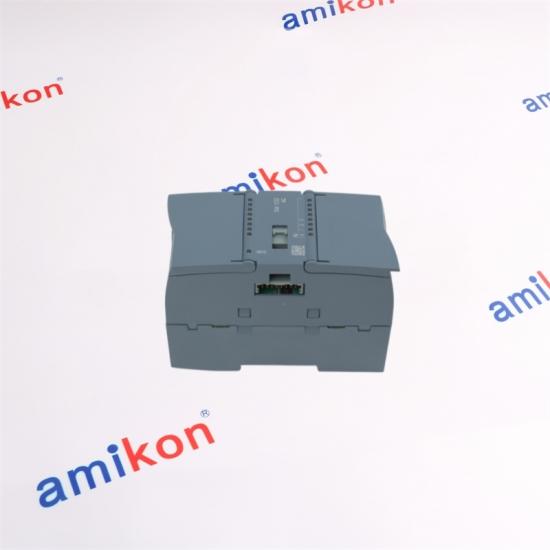

| Siemens 6ES7232-4HB32-0XB0 is a SIMATIC S7-1200 SM 1232 analog output module with two independently configurable voltage or current outputs. It provides ±10 V output with 14-bit resolution or 0/4-20 mA output with 13-bit resolution for drives, valves, positioners and other analog actuators. |
INSTALLED FAMILY
SIMATIC S7-1200 Signal Modules
2 AO · ±10 V / 0-20 mA
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Product type | SM 1232 analog output module |
| Analog outputs | 2 voltage or current channels |
| Voltage range | -10 V to +10 V |
| Current ranges | 0-20 mA or 4-20 mA |
| Resolution | 14 bit voltage; 13 bit current |
| Rated supply | 24 V DC |
| Voltage load | Minimum 1 kΩ |
| Current load | Maximum 600 Ω |
|
SYSTEM POSITION
2 AO · ±10 V / 0-20 mA
|
The module converts CPU command values into two field-level analog signals. Each channel can serve a voltage or current load according to its parameterization. Diagnostics include supply monitoring and wire-break functions for supported current configurations. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| 6ES7232-4HB32-0XB0 | 2 AO voltage/current | This model |
| 6ES7232-4HD32-0XB0 | 4 AO voltage/current | Choose for additional outputs |
| SM 1231 AI | Analog input | Measures rather than commands |
| SM 1234 AI/AQ | Mixed analog module | Choose when both directions are needed |
| Required front connector | Field termination | Match module and wiring execution |
| 01 | Verify whether each actuator requires voltage, 0-20 mA or 4-20 mA before wiring. |
| 02 | Use shielded twisted-pair cable; the maximum specified shielded cable length is 100 m. |
| 03 | Keep voltage loads at or above 1 kΩ and current loads at or below 600 Ω. |
| 04 | Configure the output range and substitute behavior before enabling the machine. |
| 05 | Commission with a meter and confirm scaling, polarity, diagnostics and final actuator response. |
|
