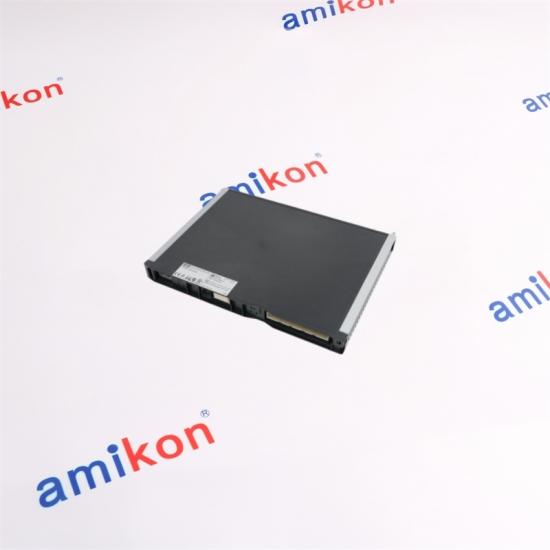

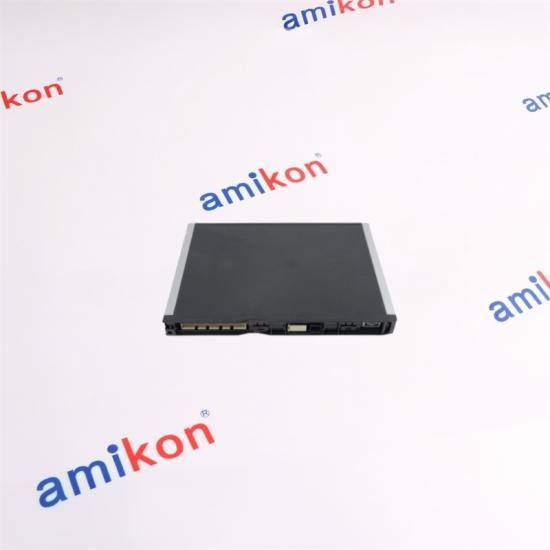

HIMA X-DI 32 02 dense HIMax input module

HIMA X-DI 32 02
HIMA X-DI 32 02
HIMA X-DI 32 02

HIMA X-DI 32 02 dense HIMax input module

Calculate shipping
Quotation Request
AMIKON LIMITED  /  HIMAX SERIES INPUT SIGNALS
HIMA X-DI 32 02
32-CHANNEL DIGITAL INPUT MODULE
CHANNEL COUNT
32
Digital inputs
INPUT LEVEL
8.2 V DC
Proximity switches
SAFETY
SIL 3
Line monitoring
Designed for evaluating proximity-switch signals; confirm system compatibility and the required field termination assembly before replacement.
AMIKON SUPPORT
Keep your safety
system connected.
International Delivery on the Day
Quick Response Support
Intercontinental Cooperation Network
Sales manager: Miya zheng
✉   EMAIL SALES
☎   PHONE / WHATSAPP
HIMAX DIGITAL INPUT   ◆   8.2 V DC   ◆   32 CHANNELS   ◆   LINE MONITORING
NAMUR INPUT LAYER · HIMAX

Thirty-Two Signals, Watched at the Wire

HIMA X-DI 32 02

A dense HIMax input module for proximity-switch signals with integrated line monitoring.

32
input channels
8.2 V DC
initiator supply
NAMUR
proximity-switch interface
SIL 3
safety capability
ENGINEERING PROFILE

Signals, Diagnostics and System Role

Platform HIMax modular safety system
Module type Safety-related digital input module
Channels 32
Input interface 8.2 V DC initiator / NAMUR proximity switch
Diagnostics Line monitoring
Safety capability SIL 3
SOE function Not the SOE variant; X-DI 32 05 is the published SOE counterpart
Related non-safety type X-DI 32 52
FTA compatibility X-FTA 002 01L 01R and X-FTA 008 02L are published options
Engineering check Match base plate, FTA, firmware release and project channel configuration
10
CHECKPOINTS

Exact identity, electrical behavior, termination, firmware and the validated safety project must agree before installation.
Need a compatibility and stock check for X-DI 32 02? ASK MIYA · SALES@AMIKON.CN
SYSTEM RELATIONSHIP

Compare the Electrical Role, Not the Enclosure

X-DI 32 02 — 8.2 V DC · NAMUR · line monitoring · SIL 3 Selected safety-related module
X-DI 32 05 — 8.2 V DC · NAMUR · line monitoring · SOE · SIL 3 Adds sequence-of-events capture
X-DI 32 52 — 8.2 V DC · NAMUR · line monitoring Non-safety-related counterpart
X-DI 32 01 — 24 V DC · 32 channels · SIL 3 Different field-signal interface

A safe replacement decision includes the complete order string, revision, I/O characteristics, termination, firmware, network relationships and the approved application configuration.

20 YEARS OF INDUSTRIAL AUTOMATION SUPPLY

Urgent Parts. Clear Communication. Global Reach.

◎
20 Years of Supply Experience
Quality-focused sourcing for current and hard-to-find automation parts.
⌁
Emergency Dispatch Support
Fast response helps maintenance teams reduce avoidable downtime.
◇
Help Finding Exact Part Numbers
Send the label and application need; our team will help confirm the inquiry.

Talk to Miya About X-DI 32 02

✉ sales@amikon.cn ◉ WhatsApp 86-18020776792 ◆ Sales Manager · Miya Zheng
Return & Replacement Essentials
Contact us within seven days if a concern appears after receipt. Keep the item in its original condition and state the specific reason; resolution follows return receipt and inspection. Return-related shipping costs are paid by the buyer.
BUYER FAQ

Questions That Protect the Purchase

01 · X-DI 32 02 — Can X-DI 32 02 accept ordinary 24 V DC contacts directly?
Do not treat it as a general 24 V input card. It is specified for an 8.2 V DC NAMUR proximity-switch interface; match the field device and termination design.
02 · X-DI 32 02 — Is X-DI 32 02 the sequence-of-events version?
No. X-DI 32 05 is the published NAMUR input type that adds SOE. Confirm whether event time stamping is required before ordering.
03 · X-DI 32 02 — Which items must match when replacing X-DI 32 02?
Confirm the complete module revision, HIMax base-plate position, field termination assembly, firmware release and the validated channel parameters.
04 · X-DI 32 02 — What does line monitoring add to X-DI 32 02?
It allows the engineered safety function to distinguish field states and configured wiring faults when the NAMUR circuit and thresholds are correctly designed.
05 · X-DI 32 02 — Can X-DI 32 52 substitute for X-DI 32 02?
No automatic substitution should be made. X-DI 32 02 is the safety-related SIL 3 type, while X-DI 32 52 is shown as a non-safety counterpart.
