Product Family |

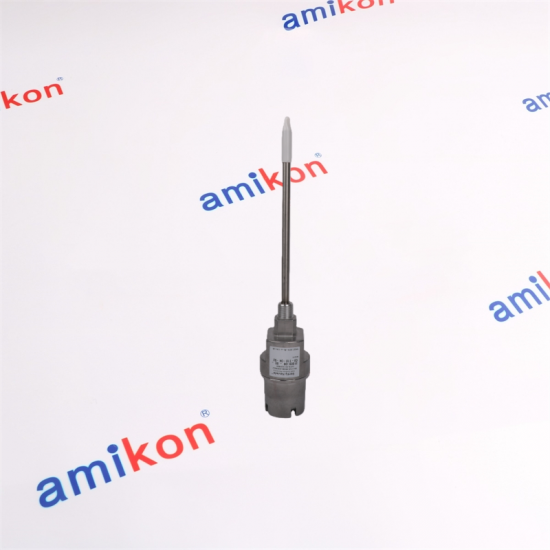

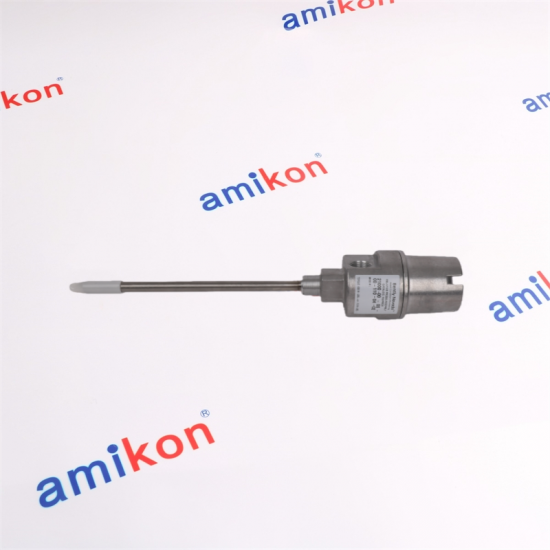

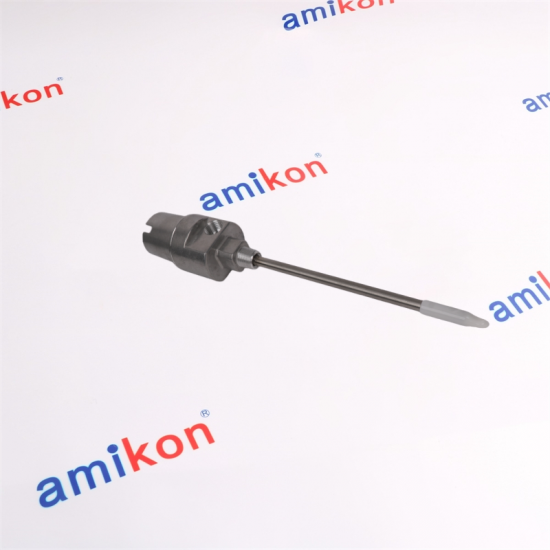

Bently Nevada Proximity Probe Housing Assemblies |
|
Probe Type |
3300 XL 8 mm probe with connector |
|
Cable Length |
1.0 meter (39 inches) |
|
Standoff Adapter |
None |
|
Probe Penetration |
2.1 inches |
Key Model Characteristics of the Bently Nevada 21000 Series
Pioneering Rack-Based Architecture
The system was built around a central "rack" or "frame." This modular chassis could house multiple monitoring modules, allowing users to flexibly configure the system to meet specific machine requirements.
Fully Modular Monitoring System
The system consisted of various dedicated plug-in modules, such as:
Vibration monitoring modules (e.g., for 3300 XL proximity probes).
Relay modules for alarms and shutdowns.
Power supply modules.
This modularity enabled high-density packaging and simplified maintenance and expansion.
Comprehensive Monitoring Capabilities
Dynamic Parameter Monitoring: Specialized in measuring vibration, phase (Keyphasor), and rotational speed for mechanical analysis.
Static Parameter Monitoring: Could also monitor process variables like pressure, temperature, and flow.
Provided integrated protection for critical rotating assets by combining dynamic and static data.
Communication and Interface (for its era)
Primarily used the TDXnet protocol for communication between racks and to higher-level systems.
Laid the groundwork for early plant-wide condition monitoring by providing interfaces to supervisory computer systems.
Historical Context and Legacy
Industry Standard Setter: The 21000 series helped establish the core architecture and philosophy for modern online condition monitoring systems.
Predecessor to the 3500: It directly evolved into the more advanced and widely adopted Bently Nevada 3500 System, which remains a global standard today. Many 21000 systems have been upgraded or replaced by 3500 systems.
Classic, Mature Technology: While now considered a legacy system, it is known for its robustness and can still be found in operation on older machinery, a testament to its reliable design.
FQA
Q1: What is AMIKON's core capability regarding spare parts?
A1: AMIKON maintains a stock of over 30,000 high-quality spare parts available for immediate global delivery.
Q2: How does AMIKON's inventory benefit customers?
A2: The extensive inventory enables rapid response to customer needs, reducing downtime and protecting production schedules.
Q3: What is the standard delivery time for in-stock items?
A3: In-stock items are delivered within 1-3 working days.
Q4: How does AMIKON handle out-of-stock items?
A4: For unavailable items, AMIKON will help customers find component solutions.
Q5: What values does AMIKON's delivery system provide?
A5: The timely delivery system ensures operational security and cost savings for customers.
