SIEMENS 6GK5101-1BB00-2AA3 Ethernet Switches

SIEMENS 6GK5101-1BB00-2AA3 Ethernet Switches

SIEMENS   /   SCALANCE INDUSTRIAL NETWORKS
6GK5101-1BB00-2AA3
SCALANCE X101-1   |   Unmanaged Media Converter
NETWORK LINK
TP + MULTIMODE FO
Industrial Ethernet
PORT A / COPPER
RJ45
1 × 10/100 Mbit/s
⇄
PORT B / OPTICAL
BFOC
1 × 100 Mbit/s Multimode
›
ENVIRONMENT
IP30
Protection rating
›
OPERATING TEMP.
-10 to +60°C
Ambient temperature
Miya Zheng
Sales Manager
✉ EMAIL SALES ☎ WHATSAPP
SIEMENS SCALANCE
6GK5101-1BB00-2AA3

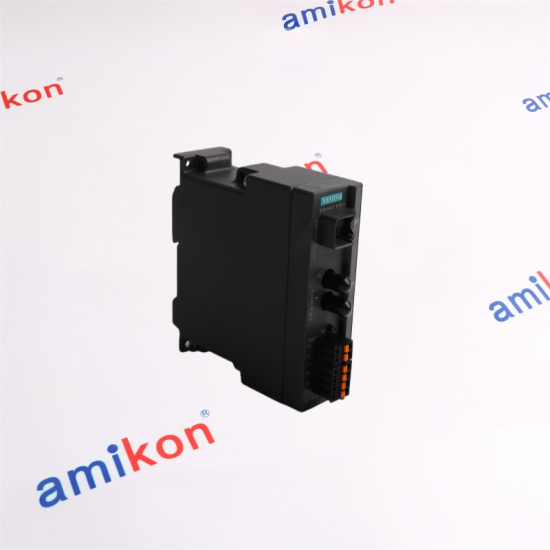

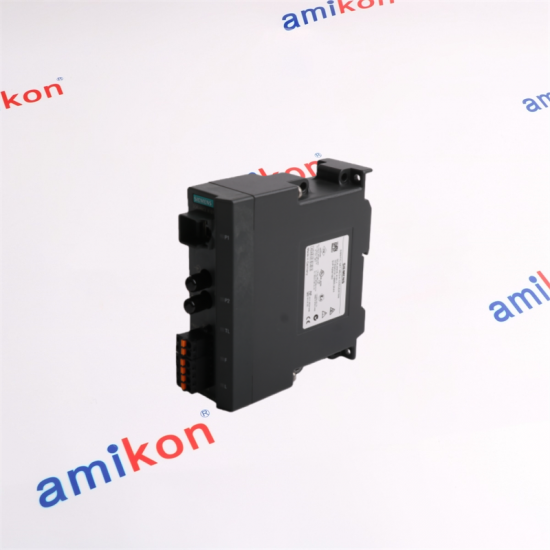

X101-1 Industrial Ethernet Media Converter
An unmanaged copper-to-fiber converter with one Fast Ethernet RJ45 port and one multimode BFOC optical port.
Reliable copper-to-fiber transition
1 x RJ45
10/100 Mbit/s
1 x BFOC
100 Mbit/s multimode
Dual Power
Redundant supply inputs
PRODUCT OVERVIEW
Unmanaged industrial media conversion
The Siemens SCALANCE X101-1 converts a 10/100 Mbit/s electrical Industrial Ethernet connection to a 100 Mbit/s multimode optical link. LED diagnostics, a signaling contact with SET pushbutton and redundant power inputs support cabinet-level network availability. The unit is a spare-part product; 6GK5102-1GS00-2AC2 is the conditionally compatible successor.
Unmanaged operation LED diagnostics Fault signaling contact
TECHNICAL SPECIFICATIONS
Verified operating characteristics
Product type SCALANCE X101-1 unmanaged IE media converter
Electrical port 1 x RJ45, 10/100 Mbit/s
Optical port 1 x multimode BFOC, 100 Mbit/s
Diagnostics Front-panel LED status
Fault interface Signaling contact with SET pushbutton
Power arrangement Redundant power supply inputs
Mechanical feature PROFINET-compliant retaining collar
Net weight Approximately 0.783 kg
Lifecycle position Spare-part support phase
Conditional successor 6GK5102-1GS00-2AC2
System integration
Use between a copper Industrial Ethernet segment and a multimode fiber run. Confirm optical connector type, fiber mode and link budget at both ends.
Selection value
Choose this exact spare when existing BFOC fiber terminations and panel wiring must remain. The successor is only conditionally compatible, so physical and optical details require review.
Application focus
Useful for EMI-resistant plant links, cabinet-to-cabinet connections and legacy SCALANCE networks requiring copper-to-multimode conversion.
AMIKON Global Supply Support
Twenty Years of Experience
Quality and Fast Response
Factory-sealed supply options, coordinated global delivery, 12-month worldwide warranty and prompt quotation support.
International Parts Network
Return support: Contact us within seven days if a concern is found. Goods must remain in original condition with a clear return reason. Buyer-arranged return freight applies; replacement or refund review starts after receipt.
PROCUREMENT FAQ
Five checks before ordering 6GK5101-1BB00-2AA3
01 Can Siemens 6GK5101-1BB00-2AA3 be replaced by 6GK5102-1GS00-2AC2 without changes? Not automatically. Siemens marks the successor as conditionally compatible. Verify optical connector, mounting, supply terminals, signaling contact and available cabinet space.
02 Which fiber must be confirmed for 6GK5101-1BB00-2AA3? Confirm multimode fiber and BFOC terminations at both ends. Record fiber length and the opposite transceiver before ordering.
03 Does 6GK5101-1BB00-2AA3 need network configuration? It is unmanaged, so no switch configuration is required. Port speed behavior and the connected equipment must still be compatible.
04 How should redundant power be wired on 6GK5101-1BB00-2AA3? Use two correctly rated supplies only when the panel design requires redundancy. Confirm polarity, protective devices and the fault-contact circuit.
05 What should be sent for a 6GK5101-1BB00-2AA3 quotation? Provide the full label, optical connector photographs, fiber type, supply voltage, mounting view, quantity and whether a conditional successor is acceptable.
Confirm 6GK5101-1BB00-2AA3 for your system
Send the complete model, installed configuration, quantity and required delivery destination.
