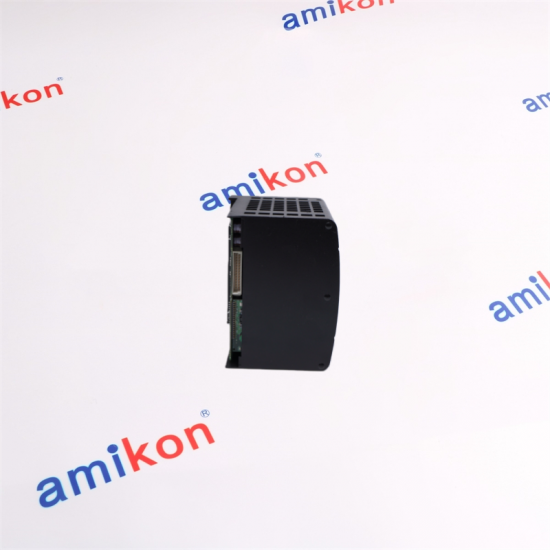

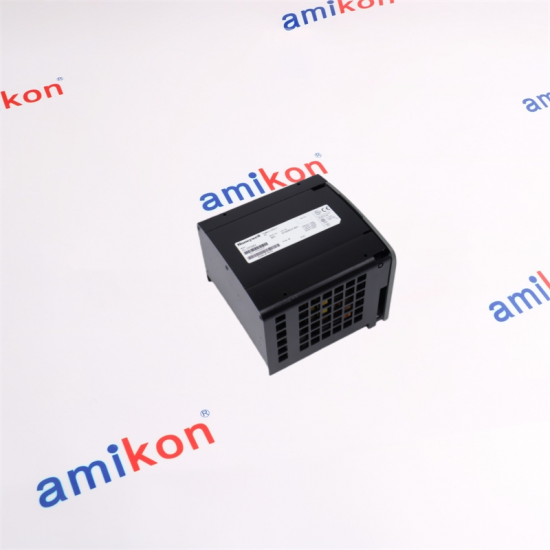

Honeywell TC-FPCXX2 Selectable AC Power Supply Module

Honeywell TC-FPCXX2 Selectable AC Power Supply Module

HONEYWELL / SERIES-A POWER
TC-FPCXX2
AC power supply module · Experion LS chassis
POWER OUTPUT
70 W
Maximum at 60°C

POWER SPECIFICATION / 03 POINTS
01 · INPUT
85–132 VAC
or 170–265 VAC
Selectable range
02 · OUTPUT
70 W
Maximum total
At 60°C
03 · FREQUENCY
47–63
Hz AC input
Power supply
SALES MANAGER
Miya Zheng
✉ EMAIL US
sales@amikon.cn
☏ WHATSAPP
86-18020776792
HONEYWELL / INDUSTRIAL AUTOMATION OVERVIEWSPECIFICATIONSSELECTIONFAQ
⚡ SERIES-A CHASSIS POWER
TC-FPCXX2
Selectable AC Power Supply Module

Provides the Series-A chassis backplane with 1.2 V, 3.3 V, 5.1 V and 24 V rails from selectable low- or high-range AC input.
85-132 VAC
LOW RANGE
170-265 VAC
HIGH RANGE
70 W
AT 60 °C
◉ Sales manager: Miya zheng ✉ sales@amikon.cn ☎ 86-18020776792
Power Budget and Mechanical Fit
Input 85-132 or 170-265 VAC, selectable Frequency 47-63 Hz
Input power 150 VA / 92 W Inrush 15 A maximum
Backplane maximums 1.5 A @ 1.2 V; 4 A @ 3.3 V; 10 A @ 5.1 V; 2.8 A @ 24 V; 70 W combined maximum
Size 11.2 × 14.5 × 14.0 cm Mass / position Approx. 1.1 kg; left side of chassis, no slot used
Choose the Supply by Incoming Power
TC-FPCXX2 TC-FPDXX2 TK-FPCXX2
Selectable AC input; uncoated.

Use when: the chassis is supplied from AC mains.
19.2-32 VDC input; uncoated.

Use when: a 24 VDC supply architecture is required.
Selectable AC input; coated version.

Use when: the installed system calls for the coated equivalent.
WHY CHOOSE AMIKON?
The right people and the right parts keep systems moving.
✓ Product Check
Rare and discontinued automation parts are coordinated with responsive support.
→ Global Dispatch
Fast coordination helps reduce maintenance delay and operational risk.
12-month warranty. Contact us within seven days if the received item needs review. Returned goods must remain in original condition with the reason stated. Return freight is arranged by the buyer.
◉ Sales manager: Miya zheng ✉ sales@amikon.cn ☎ 86-18020776792
Five Purchase Checks for TC-FPCXX2
01 Can TC-FPCXX2 accept 120 VAC and 230 VAC without checking selection? No. The 85-132 and 170-265 VAC ranges are selectable; confirm the installed setting before energizing.
02 Can TC-FPCXX2 deliver every rail maximum simultaneously? No. The combined 1.2 V, 3.3 V, 5.1 V and 24 V output must remain within 70 W.
03 Does TC-FPCXX2 consume a chassis slot? No. It mounts at the left side of the chassis without consuming a module slot.
04 Is the TC-FPCXX2 fuse field replaceable? No. The protective fuse is soldered in place; a failed supply requires appropriate service action.
05 What must be checked before TC-FPCXX2 replacement? Confirm AC input, coating code, chassis family, total rail load, wiring gauge and environmental rating.
Send TC-FPCXX2 quantity and delivery country.
