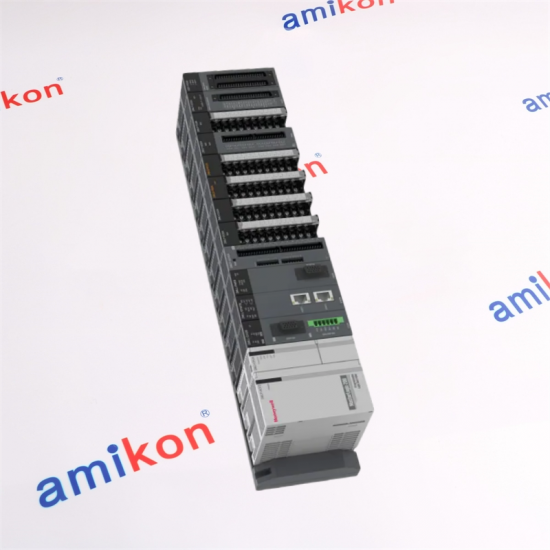

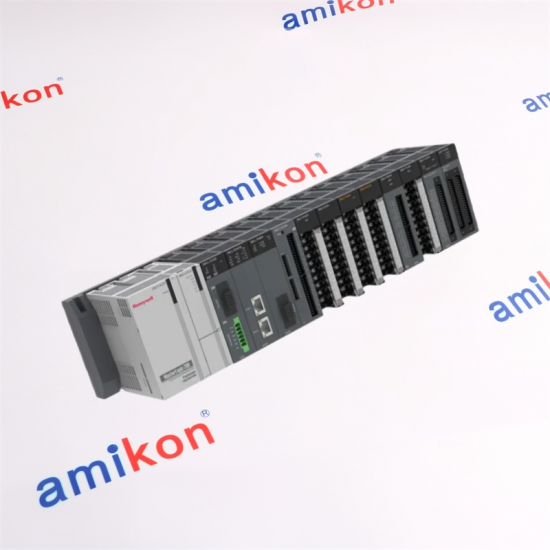

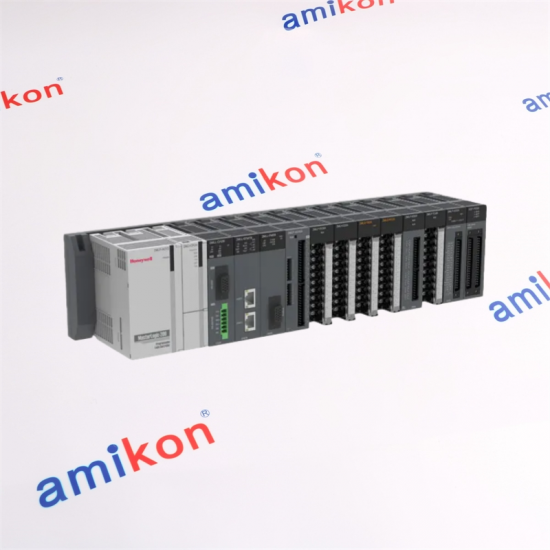

Honeywell MLI-DR64H/D1 Digital Output Module

Honeywell MLI-DR64H/D1 Digital Output Module

HONEYWELL   /   ML50 CONTROL PLATFORM
MLI-DR64H/D1
64 I/O POINTS
INPUT SECTION / DI
32
DC Input Points
12 / 24V DC supply system
INPUT ━━━━━ ◆ ━━━━━ SIGNAL
⇄
I/O
OUTPUT SECTION / DO
32
Relay Output Points
Relay-isolated output
CONTROL ━━━━━ ◆ ━━━━━ LOAD
01 / POWER
DC 12 / 24V
02 / RELAY RATING
2A / Output
03 / MAX. SWITCHING VOLTAGE
AC 250V / DC 125V
Miya Zheng
Sales Manager
✉ EMAIL SALES ☎ WHATSAPP
COMPACT CONTROL CORE
MLI-DR64H/D1
64-Point Integrated Digital I/O Main Unit
A DC-powered MasterLogic 50 H-type main unit combining thirty-two digital inputs and thirty-two relay outputs.
Integrated control and field I/O
32 DI
DC 12/24 V inputs
32 DO
Relay outputs
24 VDC
Main-unit supply
PRODUCT OVERVIEW
High-density I/O with relay field switching
The Honeywell MLI-DR64H/D1 is a MasterLogic 50 H-type integrated main unit powered from 24 VDC. It combines thirty-two DC 12/24 V digital inputs with thirty-two relay outputs. The relay section supports AC or DC loads within its contact ratings, while configurable input filtering helps adapt the controller to field signal conditions.
32 inputs + 32 outputs Relay-isolated switching Adjustable input filter
TECHNICAL DEPTH
Electrical and field characteristics
Main-unit supply DC 24 V
Digital inputs 32 points, DC 12/24 V
Relay outputs 32 points
Input isolation Photo-coupler isolation
Input voltage range DC 20.4 to 28.8 V for 24 V operation
Input ON threshold DC 19 V or more / 3 mA or more
Input OFF threshold DC 6 V or less / 1 mA or less
Input filter 1, 3, 5, 10, 20, 70 or 100 ms; default 3 ms
Relay resistive load DC 24 V 2 A or AC 220 V 2 A; 5 A per COM
Relay response 10 ms or less ON; 12 ms or less OFF
System fit
The /D1 variant uses a DC-powered main-unit architecture. Confirm the cabinet supply, I/O connector pinout, input common arrangement and relay common grouping before replacing another MLI-DR64H version.
Selection value
Choose this version when 24 VDC main-unit power and mixed 32-input/32-relay-output capacity match the installed base. Do not substitute the AC-powered MLI-DR64H without redesigning power wiring.
Application focus
Fits compact machine and process skids that need dense discrete sensing plus isolated relay actuation for mixed AC and DC field loads.
AMIKON Supply Service
20 Years of Industrial Supply
Quality, Reliability, Response
Factory-sealed supply options, 12-month worldwide warranty, responsive quotation support and coordinated international delivery.
Global Spare-Part Network
Returns: Contact us within seven days if a concern is found. Goods must remain in original condition and include a clear return reason. Return freight is covered by the buyer; replacement or refund review begins after receipt.
PROCUREMENT FAQ
Five checks before ordering MLI-DR64H/D1
01 Can Honeywell MLI-DR64H/D1 replace MLI-DR64H directly? Not without checking power. The /D1 version is DC-powered, while the non-D1 H-type version is commonly AC-powered. Confirm supply terminals and cabinet power first.
02 How should relay loads be checked for MLI-DR64H/D1? Verify voltage, resistive or inductive character, steady current, inrush and switching frequency. Keep each contact and common-group total within the applicable ratings.
03 What input setting matters when replacing MLI-DR64H/D1? Record the configured input filter time. A mismatch can change debounce behavior and machine timing even when the wiring is identical.
04 Are all 64 points on Honeywell MLI-DR64H/D1 outputs? No. The unit combines 32 digital inputs and 32 relay outputs. Confirm program addresses and connector mapping for both halves.
05 What details are essential for an MLI-DR64H/D1 quote? Provide the complete suffix, supply voltage, CPU or firmware marking, connector requirement, relay load profile, input common wiring and photographs of the installed unit.
Confirm MLI-DR64H/D1 for your installation
Send the full model, supply voltage, field-load details and required quantity.
