Honeywell MLF-AD08A 8-Channel Voltage and Current Input Module

Honeywell MLF-AD08A 8-Channel Voltage and Current Input Module

HONEYWELL
ML50 SERIES
ANALOG INPUT MODULE
MLF-AD08A
INPUT CHANNELS
08
01 / VOLTAGE INPUT
1–5V · 0–5V
0–10V DC
Voltage input resistance: 250 MΩ min.
02 / CURRENT INPUT
4–20mA
0–20mA
Input resistance: 250Ω
03 / CONVERSION
12-Bit
1.5 ms
Maximum conversion speed / channel
International Delivery on the Day Quick Response Support Intercontinental Cooperation Network
SALES MANAGER
Miya Zheng
AMIKON Limited
✉ Email: sales@amikon.cn WhatsApp: +86 180 2077 6792 Contact QR code


HONEYWELL   /   MASTERLOGIC 50

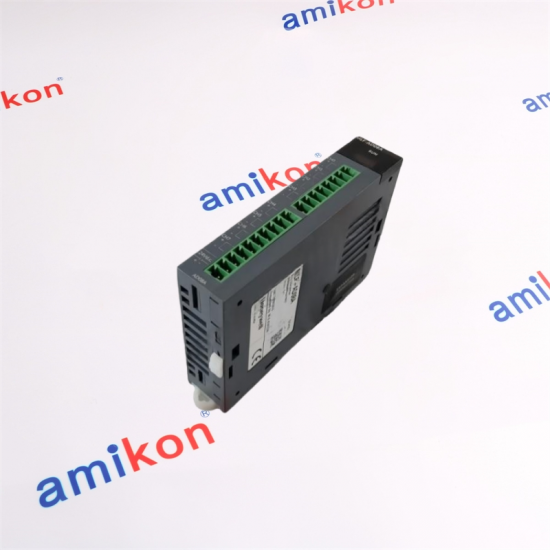

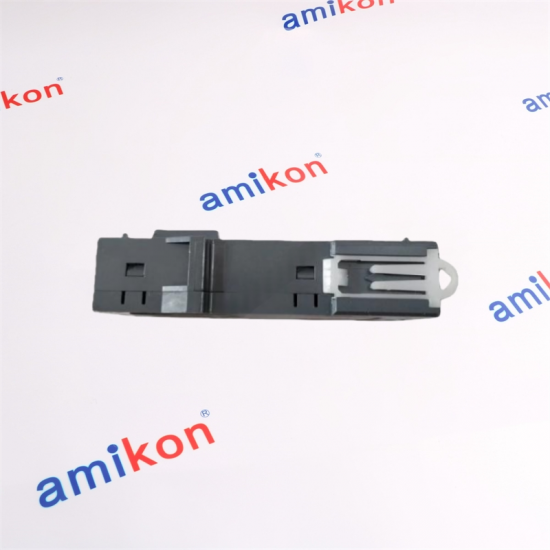

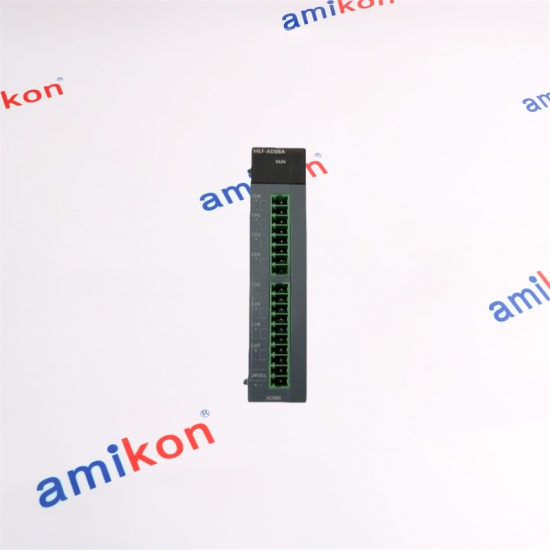

MLF-AD08A
8-Channel Analog Voltage / Current Input Module

Designed for analog signal acquisition in Honeywell MasterLogic 50 control systems, the MLF-AD08A receives industrial voltage and current signals and converts them into digital values for PLC processing. Its eight input channels support common process measurement ranges, including 0–10V and 4–20mA.
8 Analog Channels 12-Bit Conversion Voltage / Current
MODULE CATEGORY
ANALOG
INPUT MODULE

MASTERLOGIC 50
MLF Series
PRODUCT SUPPORT
Miya Zheng
Sales Manager
✉ Email: sales@amikon.cn WhatsApp: +86 180 2077 6792
Product Specifications
Core electrical and mechanical characteristics of the MLF-AD08A.
Specification MLF-AD08A
Product Series Honeywell MasterLogic 50
Module Function Analog Voltage / Current Input
Analog Input Channels 8 channels per module
Voltage Input Ranges DC 1–5V, DC 0–5V, DC 0–10V
Voltage Input Resistance 250MΩ minimum
Current Input Ranges DC 4–20mA, DC 0–20mA
Current Input Resistance 250Ω
Digital Data Format 12-bit binary data
Maximum Conversion Speed 1.5ms per channel
Absolute Maximum Input Voltage: ±15V / Current: ±25mA
Isolation Photo-coupler isolation between I/O terminal and power supply
External Connection 11-point terminal
I/O Points Occupied Fixed assignment: 64 points
Current Consumption DC 5V: 105mA / DC 24V: 85mA
Weight 70g
Input limit: The absolute maximum values are protection limits, not operating measurement ranges. Keep applied signals within the specified normal input ranges.
Input Signal and Digital Conversion
The module converts analog electrical signals into numerical values that can be used by the PLC program.
Signal Type Input Range Precise Digital Value Resolution
Voltage 1–5V 100–500 1.25mV
Voltage 0–5V 0–500 1.25mV
Voltage 0–10V 0–1000 2.5mV
Current 4–20mA 400–2000 5μA
Current 0–20mA 0–2000 5μA
Additional Digital Value Formats
Unsigned value 0–4000
Signed value −2000 to 2000
Percentile value 0–1000
Function and Industrial Applications
Analog Signal Acquisition
The MLF-AD08A receives voltage and current signals from compatible field transmitters and measurement devices. It converts the incoming signals into digital values for processing by the PLC controller.
Process Measurement
Suitable signal types can be used in monitoring applications involving pressure transmitters, flow transmitters, level instruments and other devices with compatible voltage or current outputs.
PLC-Based Monitoring
Converted values can be used in PLC logic for threshold checks, process monitoring, operator display updates and control calculations.
Multi-Point Measurement
Eight analog input channels allow multiple compatible field signals to be acquired through one expansion module, subject to correct signal selection and wiring.
How the MLF-AD08A Works
The module forms the analog input stage between field instruments and the MasterLogic 50 PLC control program.
STAGE 01
Field Sensor
Voltage / Current
STAGE 02
MLF-AD08A
Analog Conversion
STAGE 03
PLC CPU
Digital Processing
STAGE 04
Control Logic
Monitoring / Response
The PLC program uses the converted numerical value according to the selected input range and configured data format. Correct scaling is essential when converting raw counts into engineering units such as bar, °C, flow rate or liquid level.
Installation and Wiring Considerations
01 / Signal Selection
Check the voltage/current selection switch and confirm the required signal type before wiring and commissioning.
02 / Terminal Connection
The module uses an 11-point terminal connection for external field wiring. Verify terminal assignments before applying power.
03 / Cable Practice
Use 22AWG, 2-core twisted-shielded cable between the input module and external devices to help reduce electrical interference.
Commissioning Checks
• Confirm the field transmitter output matches the selected module input range.
• Verify polarity and terminal assignments before energizing the circuit.
• Confirm the PLC input configuration and numerical scaling.
• Keep the applied signal within the normal operating range; do not use the absolute maximum input as a working range.
Role in a MasterLogic 50 System
The MLF-AD08A is an expansion analog input module within the Honeywell MasterLogic 50 PLC platform. It connects compatible field measurement signals to the PLC's processing environment. The controller reads the converted values and applies the relevant program logic, monitoring functions or process calculations.
FIELD LEVEL
Transmitters
→
INPUT LEVEL
MLF-AD08A
→
CONTROL LEVEL
MasterLogic CPU
The specified photo-coupler isolation is between the I/O terminal and the power supply. It should not be interpreted as individual isolation between all eight input channels.
Related MasterLogic 50 Analog Modules
Compare module functions before selecting a replacement or expansion unit.
Model Function Channels Key Difference
MLF-AD08A Analog input 8 Voltage/current input, 12-bit binary data
MLF-AD04A Analog input 4 Four-channel voltage/current input
MLF-AD04C High-resolution analog input 4 High-resolution voltage/current input
MLF-DC04A Analog output 4 Current output, not an input replacement
NEED THIS MODULE?
Talk to Miya Zheng
Sales Manager · AMIKON
✉ Contact by Email WhatsApp: +86 180 2077 6792
Frequently Asked Questions
Practical checks for selecting, wiring and commissioning the MLF-AD08A.
Q1. Can the MLF-AD08A accept both 4–20mA transmitters and 0–10V sensors?
The module supports both current and voltage input ranges. The voltage/current selection switch and the field wiring must match the intended signal type. Confirm the selector arrangement of the installed unit before planning mixed signal connections; do not assume independent per-channel selection without checking the hardware configuration.
Q2. What raw value should the PLC program expect from a 4–20mA transmitter?
For the precise digital value format, the 4–20mA range corresponds to 400–2000. The unsigned format is 0–4000, while the signed format is −2000 to 2000. Select the data format used by the PLC program and scale the value to the transmitter's engineering range.
Q3. Is the ±15V absolute maximum rating a usable measurement range?
No. ±15V is the absolute maximum voltage input limit, not a normal operating range. The specified voltage measurement ranges are 1–5V, 0–5V and 0–10V. For current, the absolute maximum is ±25mA, while the specified operating ranges are 4–20mA and 0–20mA. Signals beyond the normal ranges must not be treated as valid measurement inputs.
Q4. What should be checked if analog readings fluctuate after installation?
Check the voltage/current selector position, signal polarity, terminal assignments and the transmitter's output range first. Inspect cable routing and shielding, and use 22AWG 2-core twisted-shielded wiring between the module and field device. Also verify that the PLC program uses the correct data format and scaling values.
Q5. Does the MLF-AD08A provide electrical isolation between every input channel?
The specified photo-coupler isolation is between the I/O terminal and the power supply. This does not establish channel-to-channel isolation. If the application requires galvanic isolation between individual field signals, use suitable external signal isolators or an input module designed for that requirement.
