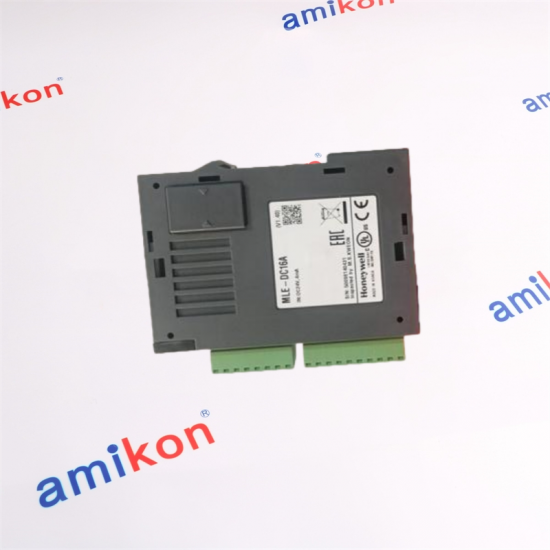

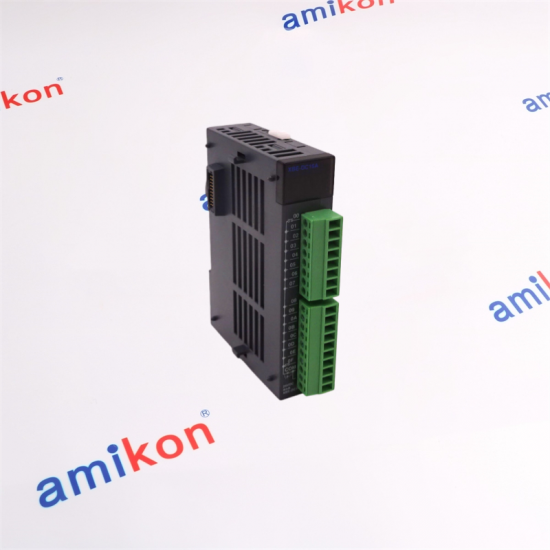

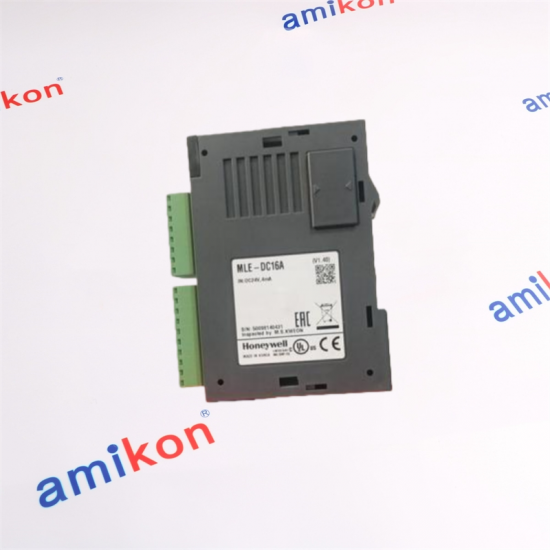

Honeywell MLE−DC16A 16-Point Digital Input Expansion Module

Honeywell MLE−DC16A 16-Point Digital Input Expansion Module

HONEYWELL / MASTERLOGIC-50
MLE-DC16A
16-Point 24 V DC Digital Input Module
16-CHANNEL
DIGITAL INPUT
RATED INPUT
24 V DC
4 mA per point
OPERATING RANGE
20.4–28.8 V
DC · ripple below 5%
DEFAULT RESPONSE
3 ms
CPU parameter selectable
✦ International Delivery on the Day  /  Quick Response Support  /  Intercontinental Cooperation Network
SALES CONTACT
Miya Zheng
Sales Manager
✉ sales@amikon.cn ☎ 86-18020776792 Contact QR Code
HONEYWELL / MASTERLOGIC-50
MLE-DC16A
16-Point Digital Input Expansion Module

MODULE CLASS
DIGITAL INPUT
24 VDC / 4 mA
01 / MODULE OVERVIEW
Compact field-signal acquisition for ML50 control systems.
The Honeywell MLE-DC16A is a 16-point digital input expansion module in the MasterLogic-50 PLC family. It receives 24 VDC field signals and transfers their ON/OFF status to the controller for logic processing, interlocking and equipment monitoring.
INPUT POINTS
16
Digital channels
COMMON GROUP
16 points / COM
Sales Manager
Miya Zheng
Email
sales@amikon.cn
WhatsApp
+86 180 2077 6792


02 / ELECTRICAL DATA
Input characteristics
Core operating values for signal compatibility and field-side checks.
RATED INPUT
24 VDC
4 mA per input
OPERATING VOLTAGE
20.4–28.8 VDC
INPUT RIPPLE
Less than 5%
ON THRESHOLD
≥19 VDC / ≥3 mA
OFF THRESHOLD
≤6 VDC / ≤1 mA
INPUT RESISTANCE
5.6 kΩ
INTERNAL CURRENT
40 mA
RESPONSE TIME
1 / 3 / 5 / 10 / 20 / 70 / 100 ms
INITIAL SETTING
3 ms
03 / CONSTRUCTION & CONNECTION
INSULATION RESISTANCE
≥10 MΩ
INSULATION METHOD
Photo-coupler
WITHSTAND VOLTAGE
560 Vrms
3 cycles
MODULE WEIGHT
—
External connection arrangement: 8-pin terminal block connector and 10-pin terminal block connector.
04 / SIGNAL PATH
From field contact to controller logic
FIELD SIDE
Switches / Sensors
24 VDC discrete signals
→
INPUT MODULE
MLE-DC16A
16-point status acquisition
→
CONTROL SIDE
ML50 CPU
Program logic and response
The module is used for discrete input acquisition. Confirm the system configuration, terminal assignment and selected input filter before wiring or replacing a module.
05 / MODEL COMPARISON
MLE-DC16A vs. MLE-DC32A
Specification MLE-DC16A MLE-DC32A
Input points 16 32
Rated input 24 VDC / 4 mA 24 VDC / 4 mA
Common arrangement 16 points / COM 32 points / COM
Internal current 40 mA 50 mA
These modules differ in channel capacity and related connection details. They should not be treated as direct substitutes without checking the PLC configuration and wiring requirements.
Product Support
Miya Zheng
Email
sales@amikon.cn
WhatsApp
+86 180 2077 6792
06 / INTEGRATION NOTES
Checks before commissioning
01 — Supply level
Verify that the field input voltage remains within the 20.4–28.8 VDC operating range.
02 — Signal threshold
Check ON and OFF voltage/current levels when a field point does not change state as expected.
03 — Filter setting
Select a response-time setting that suits the switching characteristics of the connected device.
04 — Wiring check
Confirm COM grouping, connector arrangement and terminal assignments against the installed system.
07 / TECHNICAL FAQ
Questions about MLE-DC16A
Q1 Can MLE-DC16A replace MLE-DC32A?
Not as a like-for-like replacement. MLE-DC16A provides 16 input points, while MLE-DC32A provides 32. Check channel mapping, common grouping, wiring and the PLC project before considering a change.
Q2 Why might an MLE-DC16A input fail to turn ON?
Check the field supply, wiring polarity, COM connection and input current. The ON threshold is at least 19 VDC and 3 mA; a signal below the required level may not be recognized.
Q3 What does photo-coupler insulation mean on MLE-DC16A?
The input circuit uses photo-coupler isolation between the field signal side and internal logic. This helps separate the signal interface electrically; it does not remove the need for correct grounding and wiring practice.
Q4 What should be checked before connecting the MLE-DC16A terminal blocks?
Confirm the 8-pin and 10-pin connector arrangement, terminal assignment and COM grouping for the specific installation. Isolate power before wiring or removing connectors.
Q5 How should the MLE-DC16A input response time be selected?
Available settings are 1, 3, 5, 10, 20, 70 and 100 ms, with 3 ms as the initial setting. A longer filter can help reject brief signal fluctuations, but it also delays recognition of a state change.
