Honeywell MLC−DR64H/DC CPU Processor module

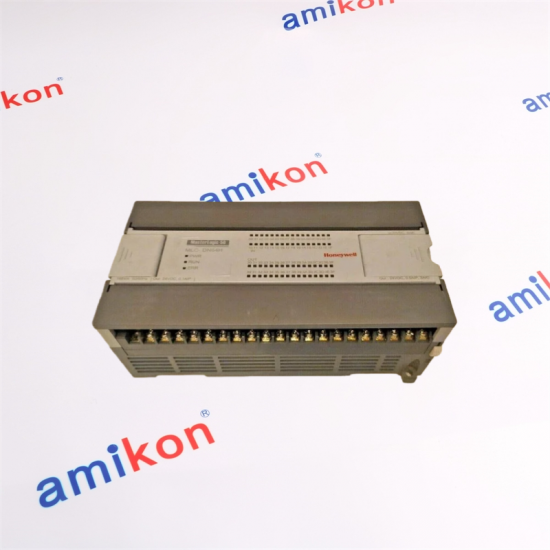

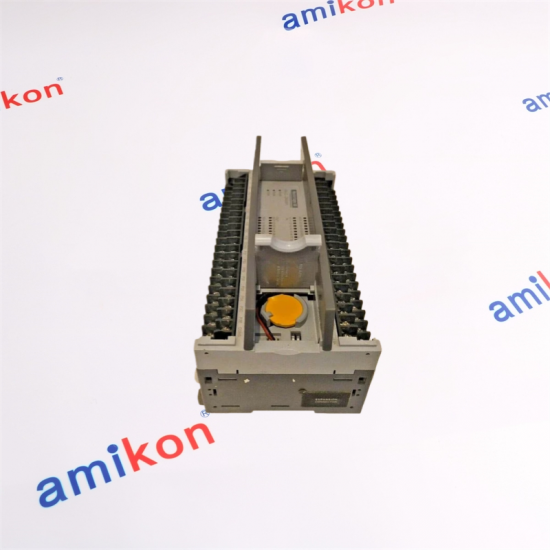

Honeywell MLC−DR64H/DC CPU Processor module

HONEYWELL · MASTERLOGIC-50
MLC-DR64H/DC COMPACT PLC · DIGITAL I/O
TOTAL I/O POINTS
64 32 INPUT + 32 OUTPUT
POWER SUPPLY
24V DC
Rated Supply
DIGITAL INPUT
32 Points
DC Input
RELAY OUTPUT
32 Points
Relay Output
International Delivery on the Day Quick Response Support Intercontinental Cooperation Network
SALES MANAGER
Miya Zheng
✉ EMAIL SALES ☏ WHATSAPP
HONEYWELL / MASTERLOGIC 50 / MLC OverviewI/O LedgerSignal PathFAQ
HIGH PERFORMANCE
H

24 VDC
BLOCK MAIN UNIT / CPU + POWER + I/O
MLC-DR64H/DC

A 24 VDC MasterLogic 50 high-performance controller integrating thirty-two photo-coupled digital inputs and thirty-two relay-isolated outputs in one compact block platform.

32
24 VDC inputs
32
Relay outputs
64
Local I/O points
ORDERING CHECK
42-point terminal arrangement
Input and output commons
Relay load category
REQUEST MATCHING REVIEW
I/O LEDGER
Electrical boundaries at a glance
Input range 20.4-28.8 VDC Input filter 1-100 ms selectable
ON threshold 19 V / 3 mA minimum OFF threshold 6 V / 1 mA maximum
Relay resistive load 24 VDC 2 A / 220 VAC 2 A Per common 5 A maximum
Relay response 10 ms ON / 12 ms OFF Minimum load 5 VDC / 1 mA
SIGNAL PATH
FIELD
Sensors and contacts
⟶
MLC-DR64H/DC
Logic execution, input filtering and relay switching
⟶
LOAD
Contactors, valves, lamps

AMIKON / 2005-2026
Twenty years of industrial automation supply

Amikon supports global manufacturers and system integrators with PLC, HMI, DCS, panel-control, industrial-computing and drive components.

12-month warranty
Responsive quotation support
International delivery coordination


PURCHASE REVIEW
MLC-DR64H/DC questions that prevent mismatches
Is MLC-DR64H/DC only an output module? No. It is a complete CPU, power and mixed-I/O main unit with 32 inputs and 32 relay outputs.
Can every relay channel switch 2 A? Only within the load category and common-group limit. Check inrush, inductance, suppression and contact life.
Which input filter should be selected? Use the shortest stable value for the wiring environment; the default 3 ms setting is not universal.
What wiring detail is easy to miss? The 42-point terminal layout and different relay common groupings across P20-P3F must match.
What should be supplied for a quotation? Provide full suffix, power arrangement, program backup status, terminal condition and label photographs.
