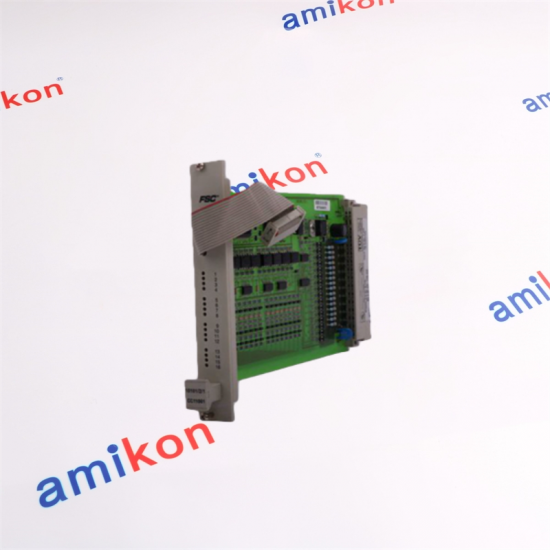

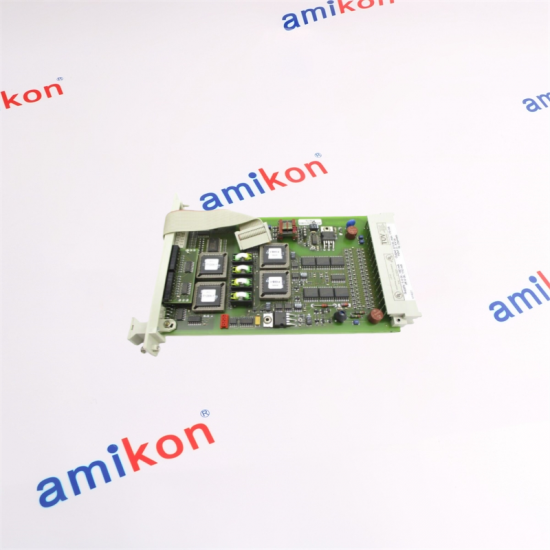

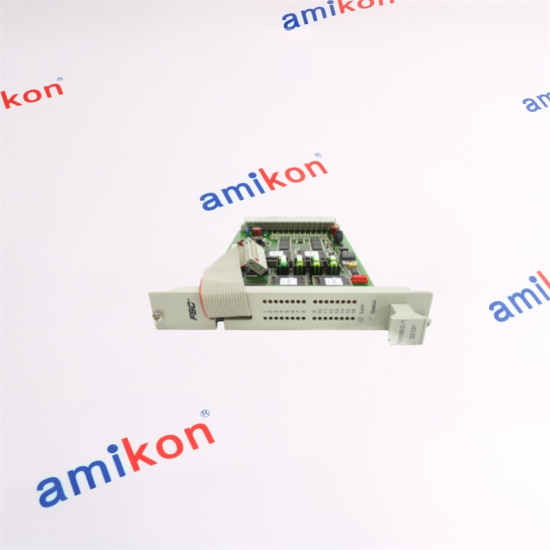

Honeywell 10106/2/1 DIGITAL INPUT MODULE

Honeywell 10106/2/1 DIGITAL INPUT MODULE

H
FSC
FAIL-SAFE DIGITAL INPUT
Honeywell 10106/2/1
16-CHANNEL I/O
01
Input capacity
16 fail-safe digital input channels
02
Field interface
24/48 VDC and NAMUR input applications
03
System position
Honeywell Fail Safe Controller I/O module
International Delivery on the Day
Quick Response Support
Intercontinental Cooperation Network
MANAGER: Miya zheng
EMAIL   sales@amikon.cn PHONE / WHATSAPP   86-18020776792
HONEYWELL FSC / FAIL-SAFE INPUT OverviewElectrical ProfileSignal ChainFAQ
FSC INPUT MODULE
10106/2/1
Line-monitored digital input

16 channels
24 VDC system duty
AK1-6 safety class
Supervised field states for fail-safe logic

The Honeywell 10106/2/1 provides sixteen line-monitored digital input channels for FSC installations. It evaluates current from associated NAMUR conversion hardware so the safety system can distinguish field states while supervising the input circuit.

Use with 10106/A/1 NAMUR converter hardware; confirm installed suffix and converter generation before replacement.
16
MONITORED INPUTS
Electrical Operating Window
Key values for loop matching and replacement review
⚡ Power
5 VDC: 160 mA
24 VDC: 110 mA
⇄ Switching
1.4-1.9 mA level
0.2 mA hysteresis
⌖ Loop
7.9-8.7 V supply
170 mA short-circuit proof
▦ Format
4 TE wide
3 HE high
Module function Fail-safe, line-monitored digital input
Input count 16 channels
Field wire resistance 50 ohm maximum
Software level 510
Key coding A5 / C29
Associated converter 10106/A/1
01
NAMUR field devices
Supervised sensor circuits

current loop
02
10106/A/1
NAMUR conversion stage

16 inputs
03
10106/2/1
FSC input evaluation
Compatibility note
The 10106/2/1 suffix 22100 is not used with 10106/A/2. Verify the existing converter and module suffix as a matched pair.

AMIKON / ESTABLISHED 2005
Support for mature safety and control platforms

Amikon works with industrial automation buyers, manufacturers and system integrators across PLC, HMI, DCS, panel control, industrial PC and variable-frequency-drive applications.

12-month warranty Prompt response
Global coordination T/T accepted


PROCUREMENT REVIEW
Five questions before ordering 10106/2/1
01 Which converter should be paired with Honeywell 10106/2/1? Use 10106/A/1 and verify the installed suffix. The 22100 version is not paired with 10106/A/2.
02 What loop values should be checked for 10106/2/1? Confirm a 1.4-1.9 mA switching level, 0.2 mA hysteresis, 50 ohm maximum field resistance and 7.9-8.7 V loop supply.
03 Can 10106/2/1 be replaced without checking key coding? No. Confirm A5/C29 coding, 4 TE by 3 HE format and the installed backplane position before shipment.
04 Why does 10106/2/1 suffix matching matter? Suffix differences can affect associated converter compatibility and approved system configuration. Record the complete marking from the installed module.
05 What should be supplied for a 10106/2/1 quotation? Provide module suffix, converter number, software level, channel usage and photographs of the front label and rack position.
