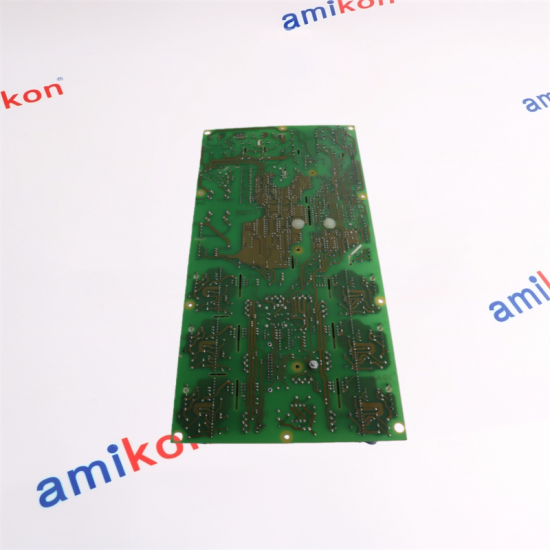

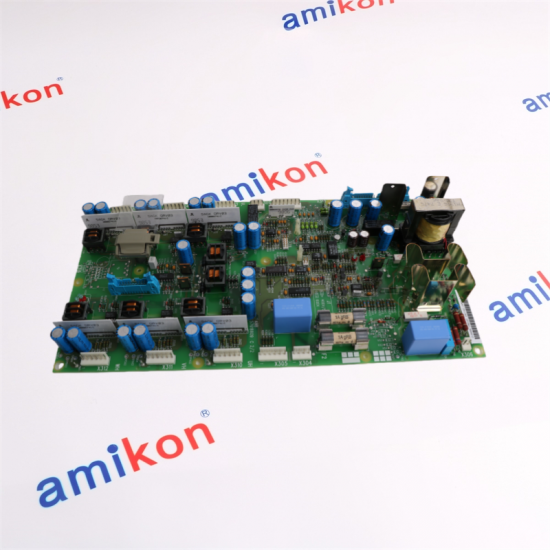

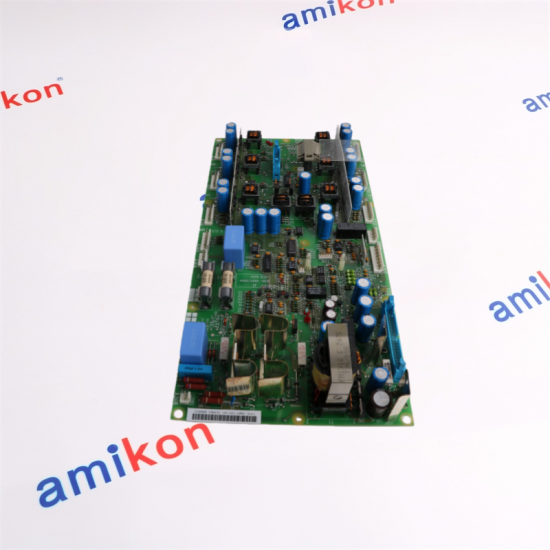

ABB SNAT7261INT SAMI GS Drive Interface Card

ABB SNAT7261INT SAMI GS Drive Interface Card

ABB · INDUSTRIAL DRIVE
SNAT7261INT

MAIN CIRCUIT
INTERFACE CARD
ACS 502 / ACS 504
POWER CONTROL COMPONENT
01 / TYPE
SNAT 7261 INT
02 / FUNCTION
Main Circuit Interface
03 / APPLICATION
ACS 502 / 504 Drives
International Delivery on the Day Quick Response Support Intercontinental Cooperation Network
SALES MANAGER
Miya Zheng
✉ EMAIL ☎ WHATSAPP

◉ ABB / SAMI GS MAIN-CIRCUIT INTERFACE OverviewSpecificationsIntegrationFAQ
MAIN CIRCUIT INTERFACE / A3
SNAT 7261 INT
ABB SAMI GS Drive Interface Card

A main-circuit interface card used in the ABB SAMI GS converter platform. It links the drive control hardware with the power stage and combines auxiliary power, transistor gate-trigger functions, DC-link voltage measurement and motor-current measurement.

⚡ Auxiliary power circuits
⇄ IGBT gate triggering
◉ DC-link and motor-current sensing
⚙ SIGNAL PATH
Power Stage Interface Architecture
01 / Measure

Receives DC-link voltage and motor-current measurement signals from the converter power section.

02 / Interface

Transfers measurement and control signals between the power stage and motor-control hardware.

03 / Trigger

Provides the transistor gate-trigger circuitry required by the inverter IGBT stage.

Platform position
A3 main-circuit interface
Associated control
SNAT 7780 CNT motor-control card
Power matching
SNAT SCL card mounted above
Status elements
Power, Discharge, +15 V, +24 V
Auxiliary rails at X401
+24 V and +8 V
Variant boundary
SNAT 7266 INT used for 600 V units
Control Unit
Flat-cable communication and auxiliary supply path
CORE INTERFACE
SNAT 7261 INT
Power supply + measurements + gate triggering
Power Stage
DC bus, current transducers and inverter IGBTs
TEAM / SINCE 2005
Legacy Drive Support, Coordinated Globally
AMIKON helps buyers match legacy drive boards by full type label, hardware rating and revision, with responsive quotation and international delivery.
12-month warranty 24-hour response
WAREHOUSE / DELIVERY
● Sales manager: Miya zheng ✉ sales@amikon.cn ☎ WhatsApp: 86-18020776792
✓ BUYER CHECKPOINTS
Questions Before Ordering SNAT7261INT
01
Which drive family should be verified before ordering SNAT7261INT?
Confirm that the installed converter belongs to the compatible ABB SAMI GS / ACS 502 or ACS 506 hardware family. This card is not a universal replacement for later ACS drive control boards.
02
Why must the matching card be checked with SNAT7261INT?
The small SNAT SCL matching card carries power-range programming for the specific SAMI hardware. Record its type, rating code and revision before moving it to a replacement main-circuit interface card.
03
Which connectors should be compared on SNAT7261INT?
Compare X301, X302, X307, X318, X310-X315, X401, X402, X403 and any optional X905 connection. Cable position and connector population must match the removed board.
04
What electrical checks are relevant after fitting SNAT7261INT?
After safe discharge and authorized service work, verify the board's Power, Discharge, +15 V and +24 V gate-driver indications. X401 also carries +24 V and +8 V auxiliary rails used in troubleshooting.
05
Can SNAT7261INT be replaced without recording the board revision?
No. The suffix letters on the nameplate encode part-list, printed-circuit and schematic revisions. Capture the full label and drive rating before purchase to avoid hardware-revision mismatch.
■ RECOMMENDED MODELS
Industrial Automation Components
1756-CN2R/B 3RU2116-1AB0 3UG4614-1BR20 6ES7323-1BL00-0AA0 6FC5357-0BB15-0AA0
6FC5357-0BB35-0AA0 6SE7041-8EK85-0HA0 6SL3120-2TE21-8AA3 800033-340SE 914-1061-000
98146952-V07 ABB 411102-DA Adam-5050 AKB336-M025 BS-00-1324
DJ-A96 ECN-S2 EM-07E EN0027-00 Enviromux-5D-E
GEO20A1R03A01 HP400ULM HQ30D IME539-1ERS LICO690
LRF3-SSM-WH MMK-6L MRI-M500S MY8-AE96S NBG-12LX
NFDV561-P00 PHC10103 PL-FD113S PS-RM-48-2 QAM2120.040
QG2VP02NDM RD4000T3 SAI533-H33/PRP SBA4D-06 SDV531-L33/PRP
SEG WIP1 SS-350H SX5457M RJ45 T7412B1008 TXA1.IBE
US-24-500W VF20-1B54 VS2EXR-24 WVR7120 Y8001-5343
Confirm the exact assembly configuration before purchase
