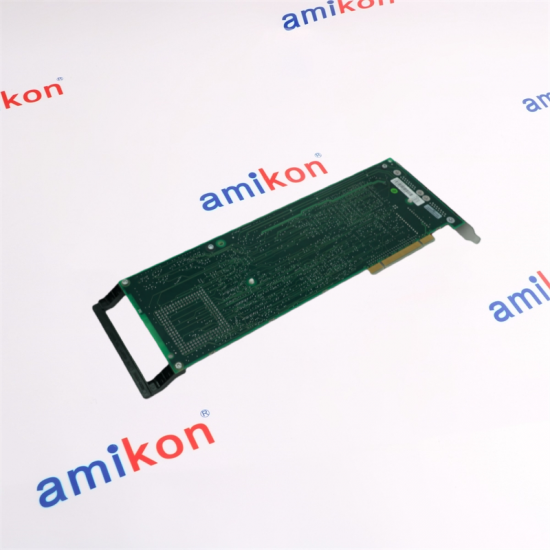

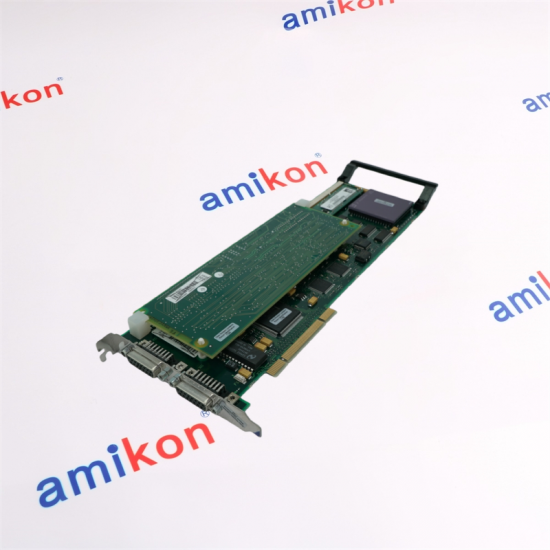

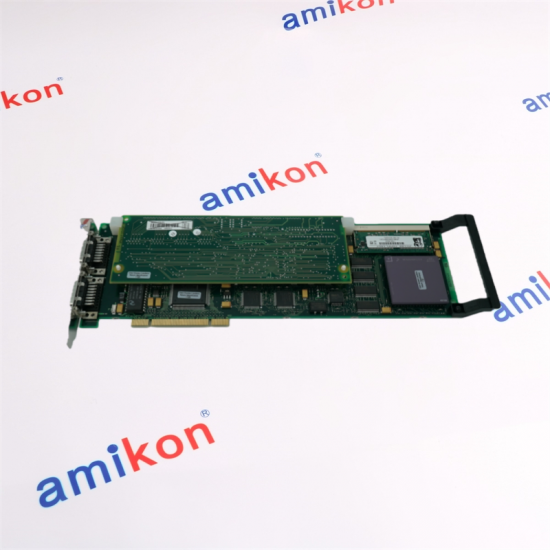

ABB PU515A 3BSE032401R1 Time Accelerator Module

ABB PU515A 3BSE032401R1 Time Accelerator Module

ABB AUTOMATION / COMMUNICATION TECHNOLOGY
PU515A 3BSE032401R1
RTA BOARD
PROCESSING 1 Processor · 25 MHz CPU
MEMORY 16 MB RAM
COMMUNICATION Dual-Channel MB300 · 10,000 kbit/s
SYSTEM ROLE Real-Time Accelerator communication board for ABB Master / MOD systems.
CONNECT WITH AMIKON
Miya Zheng
Sales Manager
✉ sales@amikon.cn ☎ 86-18020776792
✦ International Delivery on the Day ✦ Quick Response Support ✦ Intercontinental Cooperation Network


REAL-TIME CONTROL COMMUNICATION


PU515A 3BSE032401R1

Real-Time Accelerator for MB300 and eDCN

A PCI-based real-time accelerator board built for deterministic communication duties in Master and MOD eDCN environments. The complete product number is essential because slot compatibility, channel arrangement and board generation matter during replacement.

25 MHz
Processor clock
16 MB
Installed memory
2 channels
MB300 communication
ENGINEERING DETAIL

PU515A board configuration

Product number 3BSE032401R1
Board function PU515A Real-Time Accelerator (RTA) board
Processor arrangement One processor operating at a 25 MHz clock frequency
Memory 16 MB installed RAM
Communication hardware CS503V1 dual-channel MB300 communication module
Protocol and channels MB300; two communication channels
Communication speed 10,000 kbit/s
Host slot 3.3 V or 5 V, 32-bit, 33 MHz PCI; installation is also possible in a 100/133 MHz PCI-X slot while the board operates at 33 MHz
Mechanical slot fit Supports a 64-bit slot as well as the stated 32-bit PCI arrangement
External connectors Two 15-pin female D-sub connectors
System use Master and MOD eDCN systems
Net weight Approximately 0.4 kg

Fit the board to the control architecture

◈

HOST SLOT

Confirm slot voltage, PCI width and physical clearance before shutdown work begins.

⇄

MB300 PATH

Preserve the dual-channel cable arrangement and both 15-pin female D-sub connection points.

⚙

SYSTEM MATCH

Use the full 3BSE032401R1 number when replacing a board in Master or MOD eDCN service.


RTA BOARD SELECTION

PU515A and related ABB RTA choices

The model name alone does not establish interchangeability. Host generation, PCI arrangement, MB300 channels, connectors and the approved upgrade path must agree.

Model Key difference Main advantage When to use
PU515A
3BSE032401R1
PCI-based RTA board with CS503V1, dual MB300 channels, 16 MB RAM and two 15-pin female D-sub connectors. Confirmed 3.3 V or 5 V PCI fit and defined 33 MHz operation for Master and MOD eDCN service. Choose when the installed architecture and full 3BSE032401R1 configuration match.
PU515 / PU518 / PU519 Earlier RTA-board generations covered by an ABB step-up or exchange route to PU515A. PU515A offers a supported replacement route where the approved conversion conditions are met. Use the upgrade route only after checking the original board number, host, cables and required exchange conditions.
PU412K01
3BSE051827R1
RTA unit associated with MOD 300 rather than the stated PU515A PCI-board configuration. Useful when the installed MOD 300 architecture specifically calls for PU412K01. Do not substitute by family role; match the original assembly number and cabinet architecture.


WHY AMIKON?
Keeping automation systems moving when every minute matters.
DISCONTINUED PART SUPPORT
Broad inventory helps legacy assets avoid unnecessary replacement.
More than parts. More uptime.
Rare spares, urgent service and responsive delivery help keep maintenance work on track.
Experienced people and the right components bring confidence to every replacement decision.
DELIVERY WITH PURPOSE
Fast response for planned work and urgent recovery.

Return & Replacement Care

Contact us within 7 days of delivery if an issue appears. Returned units must remain in their original condition and include a clear reason for the request. A return or replacement can be arranged after the unit reaches us and passes receipt inspection. Return freight and related shipping charges are paid by the buyer.

BUYER DECISION SUPPORT

PU515A 3BSE032401R1 FAQ

Q1 Which slot checks matter before buying ABB PU515A 3BSE032401R1?
Verify 3.3 V or 5 V PCI support, the available 32-bit or 64-bit physical slot, and 33 MHz board operation. A PCI-X host can accept the board only when the physical and electrical conditions are suitable.
Q2 Does ABB PU515A 3BSE032401R1 include the MB300 communication hardware?
The stated configuration includes a CS503V1 dual-channel MB300 communication module and 16 MB RAM. Confirm the received board assembly and connector condition before installation.
Q3 What cable interface must match ABB PU515A 3BSE032401R1?
The board uses two 15-pin female D-sub connectors. Check cable gender, pin condition, retention hardware and the dual-channel routing against the removed unit.
Q4 Can ABB PU515A 3BSE032401R1 be chosen only by the PU515A name?
No. Use the full product number 3BSE032401R1 and verify the target host slot, Master or MOD eDCN use, and MB300 channel arrangement.
Q5 What should be supplied for an ABB PU515A 3BSE032401R1 quotation?
Send the complete product number, photos of both sides of the installed board, host computer type, slot type, connector view, quantity and delivery destination.
